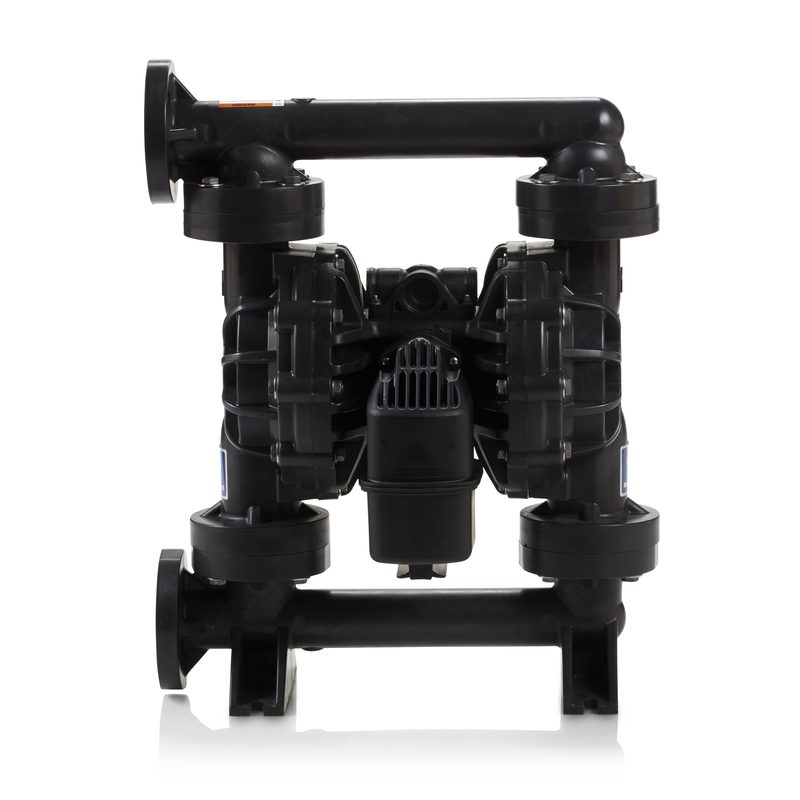

Graco 654548 Husky 15120 air-operated double diaphragm pump, pvdf (kynar), end port manifold, 1-1/2 in. (End Port), PVDF (Kynar) seats, PTFE balls, Santoprene diaphragm
Graco · Pumps · Diaphragm
Graco Husky 15120 air-operated double diaphragm (AODD) pump, part number 654548, pvdf (kynar) fluid section with polypropylene center section and an end port manifold, with PVDF (Kynar) seats, PTFE balls and a Santoprene diaphragm. Fluid ports are 1-1/2 in. (38.1 mm), End Port configuration. Maximum free-flow delivery 120 gpm (454 lpm) at up to 125 psi (8.6 bar) fluid pressure.
Specifications
- Part number
- 654548
- HS code
- 8413.81
- Material
- PVDF (Kynar) (fluid section)
- Pressure rating
- 125 psi (8.6 bar)
- Temperature range
- 32 to 225 degF (0 to 107 degC) per the Graco product page
Compatibility
Husky 15120 series, 1-1/2 in. air-operated double diaphragm pump (120 gpm / 454 lpm class). Center-port and end-port manifold configurations are not interchangeable; seat, ball and diaphragm materials are selected by fluid compatibility. Fluid connections are available NPT or BSPT. Confirm fluid compatibility before ordering.
