Product Description

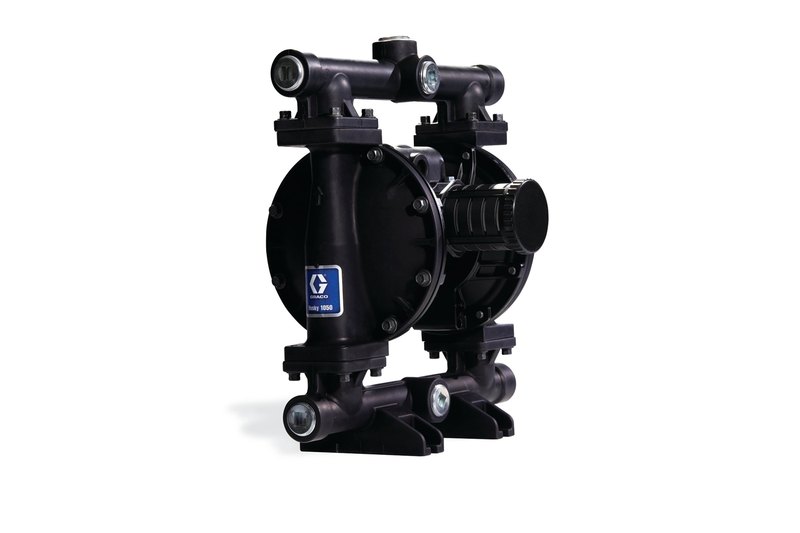

Graco Husky 1050 air-operated double diaphragm (AODD) pump, part number 246368. Aluminum fluid section with a 1 in. fluid connection. Supplied with a drum riser tube for drum evacuation. Stall-free, low-pulsation air valve for a smooth, rapid changeover; one-piece center section. Maximum flow 9 gpm (34.1 l/min) at up to 125 psi (8.6 bar) fluid pressure.
Technical Specifications
- Brand
- Graco Range: Husky 1050 (air-operated double diaphragm) Part number: 246368 Model: Husky Type: Pneumatic Diaphragm Pump Fluid section material: Aluminum Maximum fluid working pressure: 125 psi (8.6 bar) Maximum flow rate: 9 gpm (34.1 l/min) Maximum cycle rate: 280 cpm Maximum air consumption: 67 scfm Maximum air inlet pressure: 125 psi (8.6 bar) Maximum solid size: 0.125 in (3.175 mm) Fluid inlet/outlet size: 1 in (25.4 mm) Air inlet size: 1/2 in NPT(f) Air exhaust port size: 3/4 in NPT
Standards & Compliance
- Material
- Aluminum (fluid section)
- Pressure Rating
- 125 psi (8.6 bar)
- HS Code
- 8413.81
Compatibility & Fitment
Husky 1050 series, 1 in. AODD pump. Diaphragm, ball and seat elastomers are selected by the configuration; confirm fluid compatibility before ordering.
Product Documentation
More from Graco
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminum fluid section, 1 in., Acetal seats, PTFE balls, PTFE/EPDM 2-Piece diaphragm 647075
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminum fluid section, 1 in., Stainless Steel seats, PTFE balls, PTFE Overmold diaphragm
647194
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminum fluid section, 1 in., Acetal seats, PTFE balls, PTFE/EPDM 2-Piece diaphragm 647318
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminum fluid section, 1 in., Stainless Steel seats, 316 Stainless Steel balls, PTFE/EPDM 2-Piece diaphragm
647342
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminum fluid section, 1 in., Stainless Steel seats, 316 Stainless Steel balls, PTFE Overmold diaphragm
647346
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminum fluid section, 1 in., Buna-N seats, Buna-N balls, Buna-N diaphragm 647367
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminum fluid section, 1 in., Polyester Elastomer seats, Acetal balls, TPE (Hytrel) diaphragm
647502
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminum fluid section, 1 in., Santoprene seats, Santoprene balls, Santoprene diaphragm 647521
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
