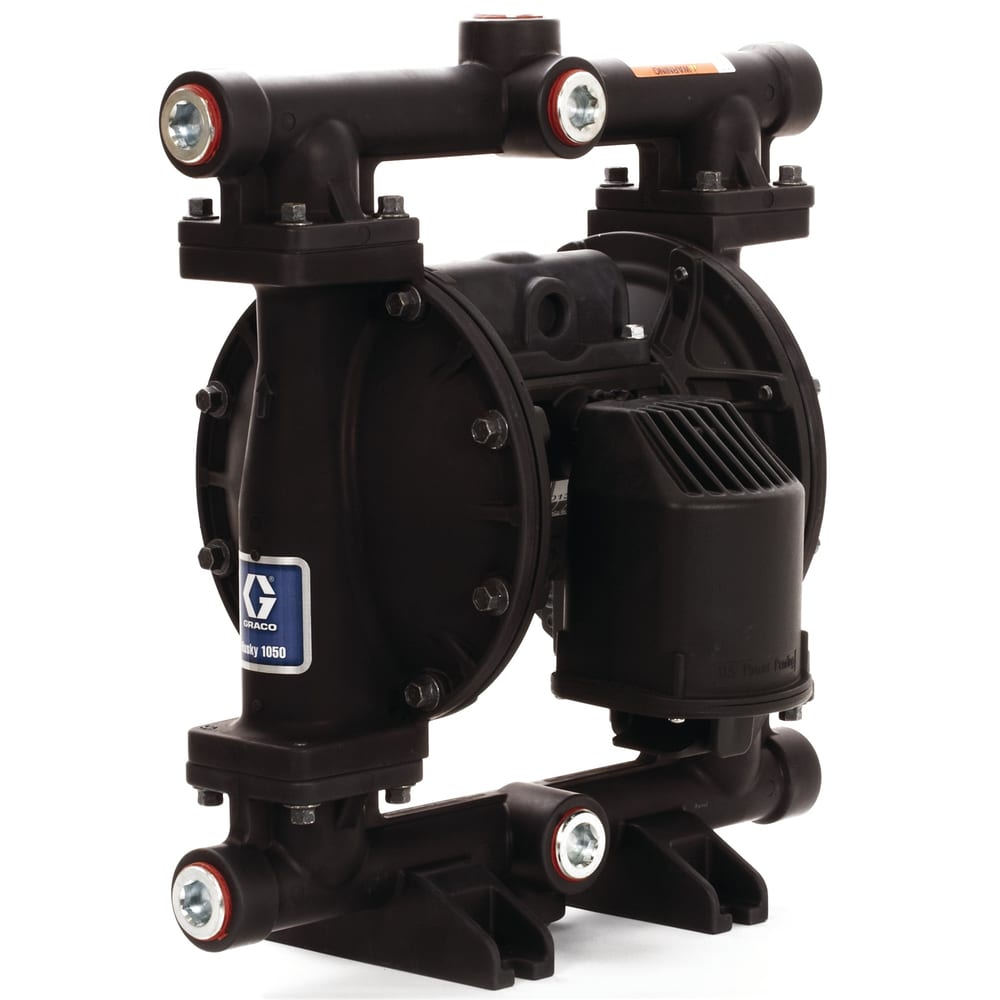

Graco Husky 1050 air-operated double diaphragm pump, aluminium, 1 in. NPT, aluminium centre section with Buna-N for CSA, Fluoroelastomer (FKM) seats, balls and diaphragm
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco Husky 1050 air-operated double diaphragm (AODD) metal pump, part number 647047, with an aluminium fluid section and an aluminium center section with Buna-N seals (CSA), Fluoroelastomer (FKM) seats, Fluoroelastomer (FKM) balls and a Fluoroelastomer (FKM) diaphragm. 1 in. (25.4 mm) NPT(f) fluid inlet and outlet, 1/2 in. NPT(f) air inlet, 3/4 in. NPT(f) air exhaust. Maximum free-flow delivery 50 gpm (189 lpm), 280 cpm, max size pumpable solids 0.125 in (3.175 mm), maximum fluid working pressure 120 psi (8.3 bar), maximum air consumption 67 scfm, weight 23 lb.
Technical Specifications
- Brand
- Graco
- Range
- Husky 1050 (air-operated double diaphragm), metal
- Part number
- 647047
- Center section configuration
- Aluminium center section with Buna-N seals (CSA)
- Fluid section material
- aluminium
- Center section material
- aluminium
- Seat material
- Fluoroelastomer (FKM)
- Ball material
- Fluoroelastomer (FKM)
- Diaphragm material
- Fluoroelastomer (FKM)
- Maximum fluid working pressure
- 120 psi (8.3 bar)
- Maximum air inlet pressure
- 125 psi (8.62 bar)
- Maximum free-flow delivery
- 50 gpm (189 lpm)
- Maximum pump speed
- 280 cpm
- Maximum size pumpable solids
- 0.125 in (3.175 mm)
- Maximum air consumption
- 67 scfm
- Air inlet size
- 1/2 npt(f)
- Air exhaust port size
- 3/4 npt(f)
- Fluid inlet and outlet size
- 1 in (25.4 mm) npt(f)
- Wetted materials
- Aluminium, Fluoroelastomer (FKM)
- Weight
- 23 lb
- Standards met
- ATEX, CE, CSA
Standards & Compliance
- Material
- Aluminium (fluid section)
- Thread Standard
- NPT
- Pressure Rating
- 120 psi (8.3 bar)
- HS Code
- 8413.81
Compatibility & Fitment
Husky 1050 series, 1 in. NPT aluminium metal pump. Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
Product Documentation
More from Graco
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminium, 1 in. BSPT, standard centre section, Stainless Steel seats, 316 Stainless Steel balls, Santoprene diaphragm
647100
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminium, 1 in. BSPT, aluminium centre section with Buna-N for CSA, Buna-N seats, balls and diaphragm
647124
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminium, 1 in. NPT, aluminium centre section with Buna-N seals, Fluoroelastomer (FKM) seats, FKM (Viton) balls and diaphragm
647670
Graco
Graco Husky 1050 air-operated double diaphragm transfer pump for oil evacuation and oil transfer, aluminium, 1 in. NPT, Buna-N seats, Acetal balls, TPE (Hytrel) diaphragm
647731
Graco
Graco Husky 1050 air-operated double diaphragm pump, aluminium, 1 in. BSPT, standard centre section, G.E.T. seats, G.E.T. balls, G.E.T. diaphragm
647121
Graco
Graco Husky 1050 air-operated double diaphragm pump, polypropylene, 1 in. NPT, center flange, polypropylene seats, TPE (Hytrel) balls, TPE (Hytrel) diaphragm
649000
Graco
Graco Husky 1050 air-operated double diaphragm pump, polypropylene, 1 in. NPT, center flange, polypropylene seats, FKM balls, FKM diaphragm
649004
Graco
Graco Husky 1050 air-operated double diaphragm pump, polypropylene, 1 in. NPT, end flange, polypropylene seats, TPE (Hytrel) balls, TPE (Hytrel) diaphragm
649028
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 647047?
- 647047 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 647047.
- What is the HS code for 647047?
- The customs tariff (HS) code for 647047 is 8413.81.
- Who manufactures 647047?
- 647047 is a Graco product in the Pumps range.
- Is a datasheet available for 647047?
- Yes — the 647047 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 647047?
- The minimum order quantity is 1.
- Is 647047 available?
- Yes — 647047 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
