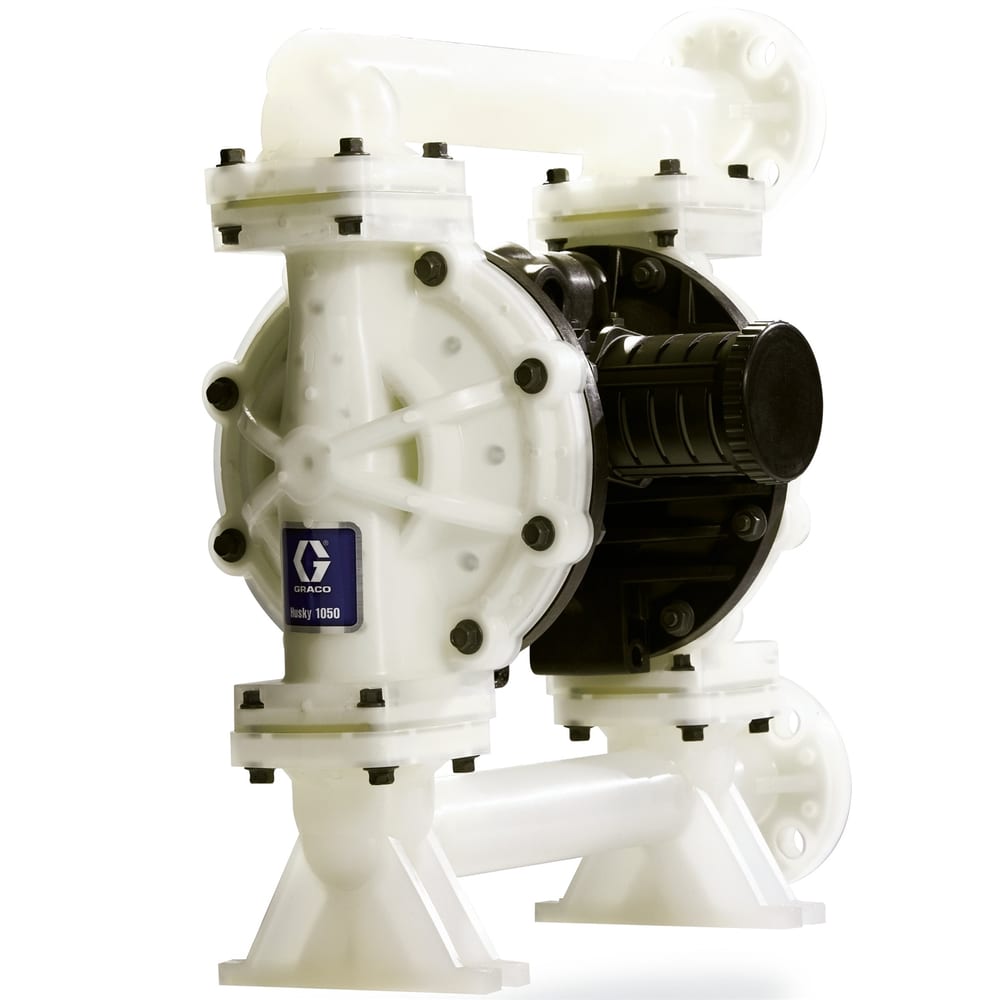

Graco 649028 Husky 1050 air-operated double diaphragm pump, polypropylene, 1 in. NPT, end flange, polypropylene seats, TPE (Hytrel) balls, TPE (Hytrel) diaphragm
Graco · Pumps · Diaphragm
Graco Husky 1050 air-operated double diaphragm (AODD) pump, part number 649028, polypropylene fluid section with a polypropylene center section, end-flange configuration, Polypropylene seats, TPE (Hytrel) balls and a TPE (Hytrel) diaphragm. 1 in. NPT (25.4 mm) fluid inlet and outlet, 1/2 in. NPT(f) air inlet, 3/4 in. NPT(f) air exhaust. Maximum free-flow delivery 50 gpm (189 lpm), 280 cpm, maximum size pumpable solids 0.125 in (3.175 mm), weight 18 lb.
Specifications
- Part number
- 649028
- HS code
- 8413.81
- Material
- Polypropylene (fluid section)
- Pressure rating
- 125 psi (8.6 bar)
- Temperature range
- Up to 150 °F (66 °C)
Compatibility
Husky 1050 series, 1 in. NPT polypropylene pump. Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
Standards
Approvals
Pumps · More Graco · Printable datasheet
