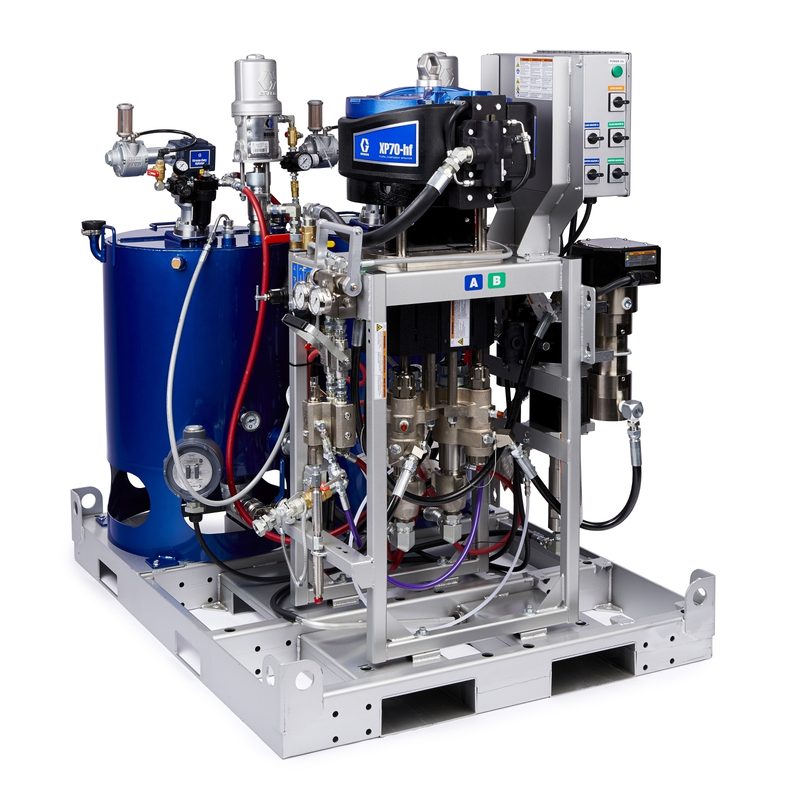

Graco XP70S-HF Skid System, Non-Hazardous, 2:1 with Water Jacketed Hose, 240V

Graco 577201 XP70s-hf Skid System, Non-Hazardous, 2:1 With Water Jacketed Hose, 240V, part number 577201. XP70 plural-component proportioner, 2:1 mix ratio, 7250 psi (500 bar) maximum working pressure, 2.8 GPM maximum flow. Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents. All values read from the Graco product page (577201 on graco.com).

Brand

Graco Series: XP70 Product type: Plural Component Part number: 577201 Type: Plural Component Sprayer Component type: Plural-Component Configuration: Water Jacketed Hose Applicator type: Automatic Airless, Manual Airless material application: Coatings, Paints, Primers Power source: Air Measuring type: Fixed Mechanical Positive Displacement Flush type: Solvent Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents Mix ratio: 2:1 Maximum working pressure: 7250 psi (500 bar) Maximum spray pressure: 7250 psi (500 bar) Maximum flow rate: 2.8 GPM (10.6 L/min) (10800 cc/min) Maximum cycle rate: 40 CPM Maximum fluid temperature: 160 °F (71 °C) Maximum fluid viscosity: 20000 cP minimum fluid viscosity: 200 cP Maximum hose length: 300 ft (91.4 m) Fluid inlet size: 1-1/4 in NPT Fluid outlet size: 1/2 in NPT Air inlet size: 1 in NPSM Sound power level: 96 dB(A) Sound pressure level: 86.8 dB(A) Wetted material: Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE, Solvent Resistant Plastics, Aluminum, Nylon Weight: 1350 lb (612 kg) Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR5+ Gun, 35 ft Integration Hose and Static Mixer, Heated Hose Controller, Ratio Check Kit Voltage: 240 V

Pressure Rating

7250 psi (500 bar) max working

Temperature Range

up to 160 °F (71 °C) fluid

HS Code

8424.20
