Graco XP 1:1 Proportioner System
Pricing
Request a quote
We reply within 24 hours
Product Description

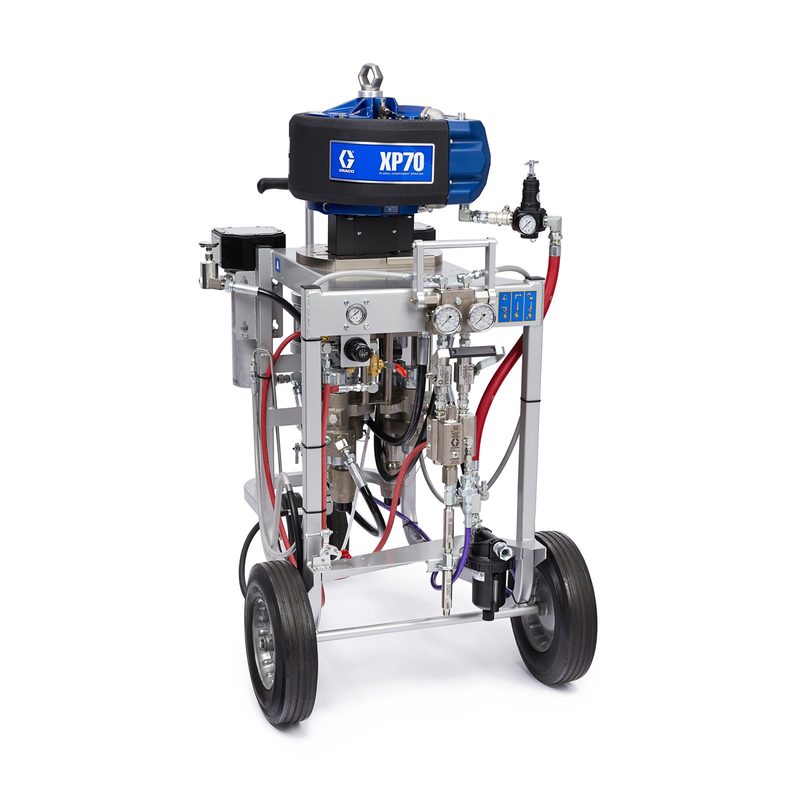

Graco 571103 XP 1:1 Proportioner System, part number 571103. XP70 plural-component proportioner, 1:1 mix ratio, 7250 psi (500 bar) maximum working pressure, 1.9 GPM maximum flow, +/- 5% mix accuracy. Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents. All values read from the Graco product page (571103 on graco.com).
Technical Specifications
- Brand
- Graco Series: XP70 Product type: Plural Component Part number: 571103 Type: Plural Component Sprayer Component type: Plural-Component Configuration: Cart Mount with 7 gallon (26.5 Liter) Hopper Applicator type: Automatic Airless, Manual Airless material application: Coatings, Paints, Primers Power source: Air Measuring type: Fixed Mechanical Positive Displacement Flush type: Solvent Number of tanks: 0 Number of catalysts: 1 Number of resin colors: 1 Number of reducers: 0 Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents Mix ratio: 1:1 Mix accuracy: +/- 5 % Maximum working pressure: 7250 psi (500 bar) Maximum spray pressure: 7250 psi (500 bar) Maximum air inlet pressure: 175 psi (12.07 bar) Maximum flow rate: 1.9 GPM (7.2 L/min) (7200 cc/min) Maximum cycle rate: 40 CPM Maximum fluid temperature: 160 °F (71 °C) Maximum fluid viscosity: 20000 cP minimum fluid viscosity: 200 cP Maximum hose length: 300 ft (91.4 m) Fluid inlet size: 1-1/4 in NPSM Fluid outlet size: 1/2 in NPT Air inlet size: 3/4 in NPSM Sound power level: 98 dB(A) Sound pressure level: 86 dB(A) Wetted material: Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum Overall height: 62 in (1575 mm) Overall width: 35 in (889 mm) Overall depth: 52 in (1321 mm) Includes: Pump, (4)Hoses, Primer Hose, (2) Heaters, Solvent Pump, Solvent Hose
Standards & Compliance
- Pressure Rating
- 7250 psi (500 bar) max working
- Temperature Range
- up to 160 °F (71 °C) fluid
- HS Code
- 8424.20
Compatibility & Fitment
XP70 is Graco's fixed-ratio plural-component proportioner for high-viscosity protective coatings. 1:1 mix ratio; 7250 psi max working pressure; 1.9 GPM. Confirm mix ratio, material viscosity range and heater configuration match the coating before ordering.
Product Documentation
More from Graco
Graco
Graco XP70S-HF Skid System, Non-Hazardous, 1:1 with Water Jacketed Hose, 240V
577101
Graco
Graco XP70S-HF Skid System, Non-Hazardous, 2:1 with Water Jacketed Hose, 240V
577201
Graco
Graco XP70S-HF Skid System, Non-Hazardous, 3:1 with Water Jacketed Hose, 240V
577301
Graco
Graco XP70S-HF Skid System, Non-Hazardous, 4:1 with Water Jacketed Hose, 240V
577401
Graco
Graco XP70 High Flow Skid, 4:1 Mix Ratio, 240V, Viscon HF Heaters, Junction Box, No Hose Heat Control
577402
Graco
Graco XP70 High Flow Skid, 3:1 Mix Ratio, 240V, Viscon HF Heaters, Junction Box, No Hose Heat Control
577302
Graco
Graco XP70 High Flow Skid, 2:1 Mix Ratio, 240V, Viscon HF Heaters, Junction Box, No Hose Heat Control
577202
Graco
Graco XP70 High Flow Skid, 1:1 Mix Ratio, 240V, Viscon HF Heaters, Junction Box, No Hose Heat Control
577102
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 571103?
- 571103 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 571103.
- What is the HS code for 571103?
- The customs tariff (HS) code for 571103 is 8424.20.
- Who manufactures 571103?
- 571103 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 571103?
- Yes — the 571103 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 571103?
- The minimum order quantity is 1.
- Is 571103 available?
- Yes — 571103 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
