Graco Gusmer GX-7 DI Spray Gun - 4/213
Pricing
Request a quote
We reply within 24 hours
Product Description

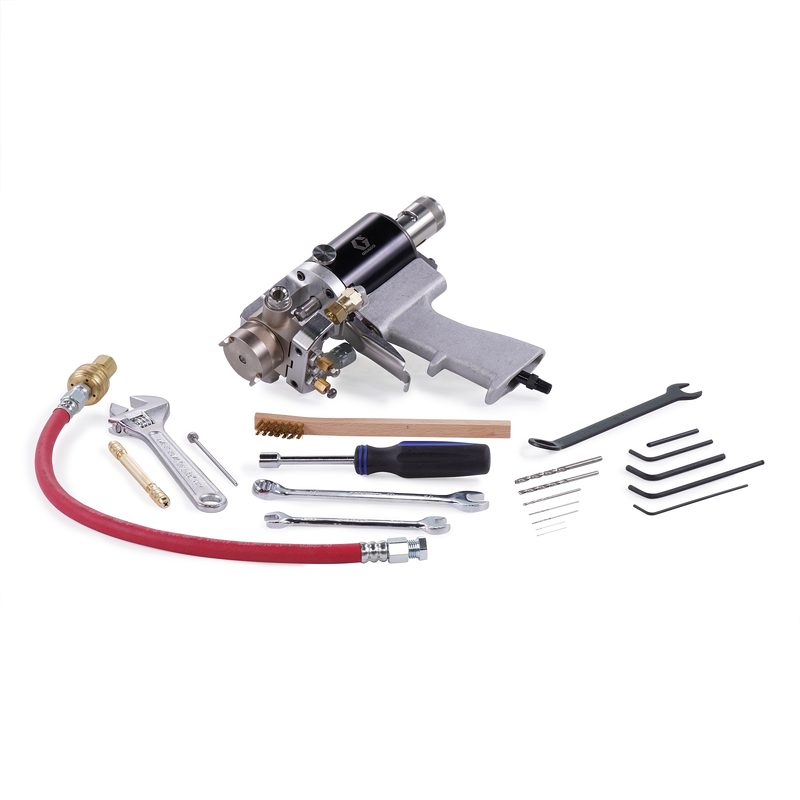

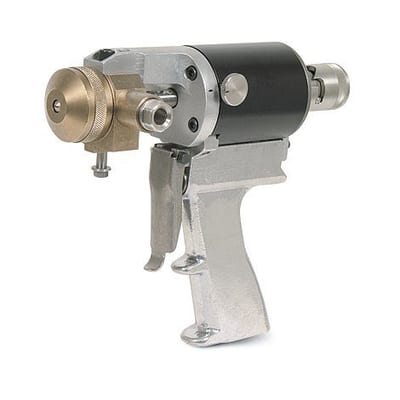

Graco 295541 Gusmer GX-7 DI Spray Gun - 4/213, part number 295541. GX-7 Mechanical-Purge spray gun, 3500 psi (240 bar) maximum fluid pressure, 22 lb/min maximum flow, Fan spray pattern. Compatible material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam. All values read from the Graco product page (295541 on graco.com).
Technical Specifications
- Brand
- Graco Model: GX-7 Series: Direct Impingement Part number: 295541 Type: Spray Gun Gun model: GX-7 DI Gun type: Mechanical-Purge Gun activation: Manual Spray gun mix type: Impingement Purge method: Mechanical Pressure type: High Pressure Spray pattern: Fan Pattern size: 10 Compatible material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam Maximum fluid working pressure: 3500 psi (240 bar) Maximum air inlet pressure: 125 psi (8.6 bar) minimum air inlet pressure: 100 psi (6.9 bar) Maximum flow rate: 22 lb/min (10 kg/min) minimum flow rate: 4 lb/min (1.8 kg/min) Component A inlet size: 1/2-20 in UNF Component B inlet size: 9/16 in UNF Air inlet size: 1/4 in NPT Wetted material: Aluminum, Stainless Steel, Plated Carbon Steel, Fluorocarbon O-Rings Overall height: 9.5 in (240 mm) Overall length: 9 in (230 mm) Overall width: 4.5 in (110 mm) Gun weight: 4.1 lb (1.9 kg) Includes: Mix Module, Tip
Standards & Compliance
- Pressure Rating
- 3500 psi (240 bar) max fluid
- HS Code
- 8424.20
Compatibility & Fitment
GX-7 is a Graco/Gusmer plural-component impingement-mix spray gun for two-component coatings and foam. 3500 psi max fluid pressure; Fan pattern; Impingement mix. Confirm mix module / tip size and component inlet fittings match the proportioner before ordering.
Product Documentation
More from Graco
Graco
Graco Gusmer GX-7A Spray Gun - 1/90
295542
Graco
Graco Gusmer GX-7A Spray Gun - 10/210
295543
Graco
Graco Gusmer GX-7A Spray Gun - 3/70
295544
Graco
Graco GX-8 Spray Gun
297898
Graco
Graco Gusmer GX-7 DI Spray Gun
299036
Graco

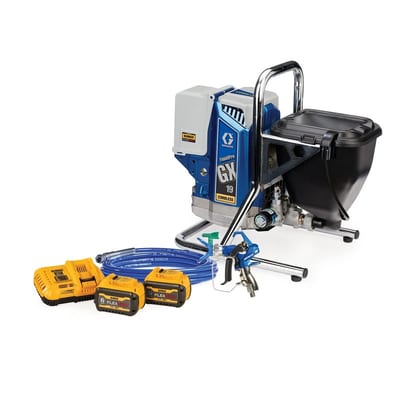

Graco FinishPro GX 19 Cordless Airless Sprayer
25U341
Graco

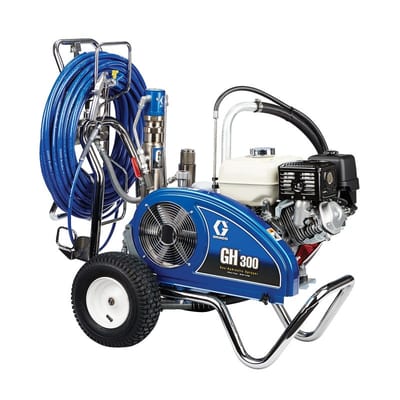

Graco GH 300 ProContractor Series Gas Hydraulic Airless Sprayer
24W936
Graco

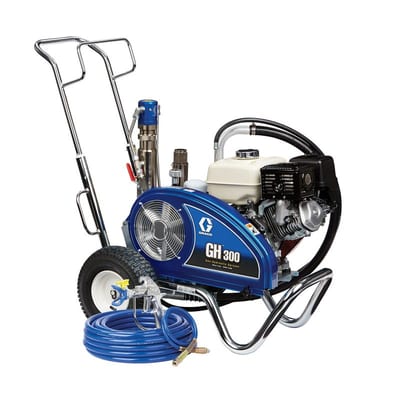

Graco GH 300 Standard Series Gas Hydraulic Airless Sprayer
24W935
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
