Graco Gusmer GX-7A Spray Gun - 10/210
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 295543 Gusmer GX-7A Spray Gun - 10/210, part number 295543. GX-7 Mechanical-Purge spray gun, 3500 psi (240 bar) maximum fluid pressure, 40 lb/min maximum flow, Fan spray pattern. Compatible material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam. All values read from the Graco product page (295543 on graco.com).
Technical Specifications
- Brand
- Graco Model: GX-7 Series: Standard Part number: 295543 Type: Spray Gun Gun model: GX-7 Gun type: Mechanical-Purge Gun activation: Manual Spray gun mix type: Impingement Purge method: Mechanical Pressure type: High Pressure Spray pattern: Fan Pattern size: 22 in @ 18 in from target Compatible material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam Maximum fluid working pressure: 3500 psi (240 bar) Maximum air inlet pressure: 125 psi (8.6 bar) minimum air inlet pressure: 100 psi (6.9 bar) Maximum flow rate: 40 lb/min (18 kg/min) minimum flow rate: 3.5 lb/min (1.6 kg/min) Component A inlet size: 1/2-20 in UNF Component B inlet size: 9/16 in UNF Air inlet size: 1/4 in NPT Wetted material: Aluminum, Stainless Steel, Plated Carbon Steel, Fluorocarbon O-Rings Overall height: 9.5 in (240 mm) Overall length: 9 in (230 mm) Overall width: 4.5 in (110 mm) Gun weight: 4.1 lb (1.9 kg) Includes: Mix Module, Tip
Standards & Compliance
- Pressure Rating
- 3500 psi (240 bar) max fluid
- HS Code
- 8424.20
Compatibility & Fitment
GX-7 is a Graco/Gusmer plural-component impingement-mix spray gun for two-component coatings and foam. 3500 psi max fluid pressure; Fan pattern; Impingement mix. Confirm mix module / tip size and component inlet fittings match the proportioner before ordering.
Product Documentation
More from Graco
Graco
Graco Gusmer GX-7A Spray Gun - 3/70
295544
Graco
Graco GX-8 Spray Gun
297898
Graco
Graco Gusmer GX-7 DI Spray Gun
299036
Graco
Graco FinishPro GX 19 Cordless Airless Sprayer
25U341
Graco
Graco GH 300 ProContractor Series Gas Hydraulic Airless Sprayer
24W936
Graco
Graco GH 300 Standard Series Gas Hydraulic Airless Sprayer
24W935
Graco
Graco GH 230 Convertible ProContractor Series Gas Hydraulic Airless Sprayer
24W932
Graco

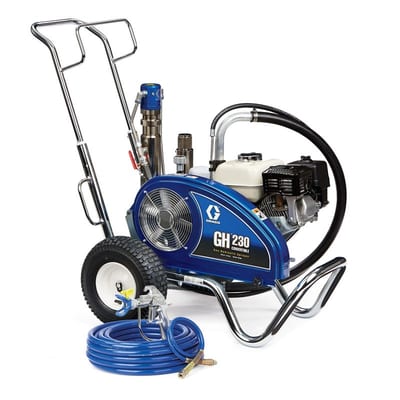

Graco GH 230 Convertible Standard Series Gas Hydraulic Airless Sprayer
24W929
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 295543?
- 295543 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 295543.
- What is the HS code for 295543?
- The customs tariff (HS) code for 295543 is 8424.20.
- Who manufactures 295543?
- 295543 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 295543?
- Yes — the 295543 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 295543?
- The minimum order quantity is 1.
- Is 295543 available?
- Yes — 295543 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
