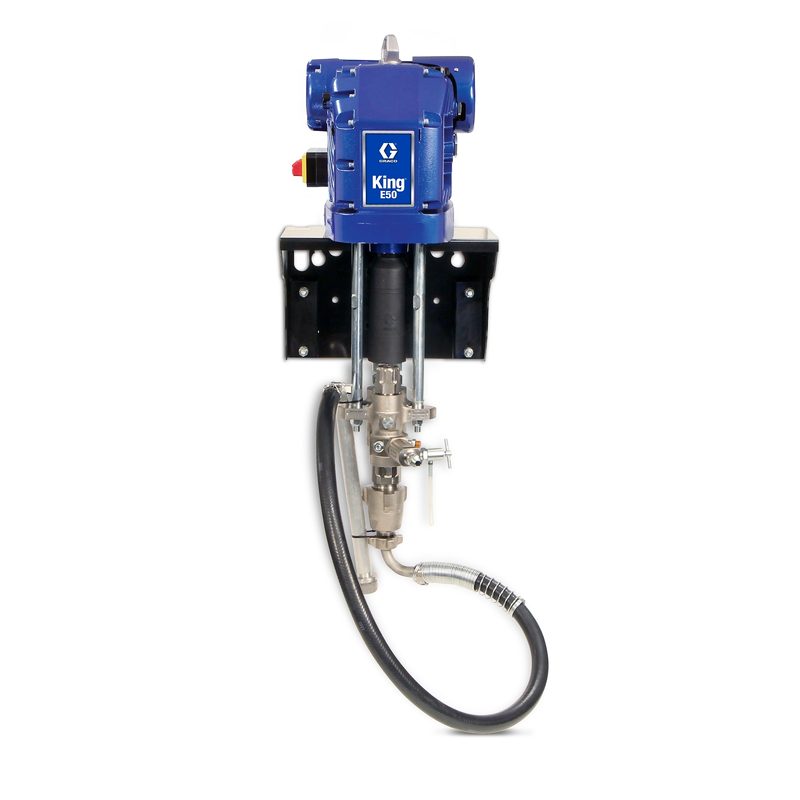

Graco King E50 Hazardous Location Wall Mount Integrated Filter BARE
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 273257 King E50 Hazardous Location Wall Mount Integrated Filter BARE, part number 273257. King E50 airless sprayer at 50:1 pressure ratio. Maximum working pressure 5000 psi (345 bar). Maximum fluid flow 0.6 gpm (2.3 lpm). For protective coating. Wetted parts: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum. All values read from the Graco product page (273257 on graco.com).
Technical Specifications
- Brand
- Graco Model: King E50 Part number: 273257 Maximum working pressure: 5000 psi (345 bar) Maximum flow rate: 0.6 gpm (2.3 lpm) Product type: Single Leg Type: Airless Sprayer Series: E50 Pump ratio: 50:1 (5000 psi) Motor type: Electric, Hazardous Locations Pump type: Pneumatic Piston Pump Pump rod type: Chromex Pump sleeve material: Hard Chrome, Stainless Steel Lower type: 145cc Xtreme Duty Lower Lower configuration: Integrated Filter Frame configuration: Wall Mount Compatible material: Protective Coating material application: Protective Coatings Gun model: No Applicator Number of guns: 1-2 Gun included: 0 Maximum tip size: 0.023 Power source: Electric Pressure control type: Electric Control Knob Phase: 1 Amperage: 120V/25A, 240V/15A Frequency: 50/60 Maximum continuous cycle rate: 44 Inlet paint strainer: 8 Mesh, 16 Mesh Outlet paint filter: 60 Mesh Fluid inlet size: 1 in. NPT Fluid outlet size: 1/2, 3/8 in. NPT Maximum hose length: 210 ft (64 m) Maximum operating temperature: 120 °F (50 °C) minimum operating temperature: 23 °F (-5 °C) minimum generator power: 5 kW Maximum sound pressure level: 77 dB(A) Weight: 295 lb (134 kg) Approved for hazardous locations: Yes Wetted material: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
Standards & Compliance
- Material
- Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
- Pressure Rating
- 5000 psi (345 bar) max working
- Temperature Range
- 23 to 120 °F
- HS Code
- 8424.20
Compatibility & Fitment
King is Graco's high-pressure airless pump/sprayer line for protective coatings and heavy, high-viscosity materials. The 50:1 pressure ratio sets the achievable fluid pressure for the air (or electric) supply; lower type 145cc Xtreme Duty Lower; frame Wall Mount; this is an electric (motor-driven) unit — confirm the supply voltage/phase/amperage and minimum generator power. Confirm the gun/tip and hose suit the coating and viscosity before ordering.
