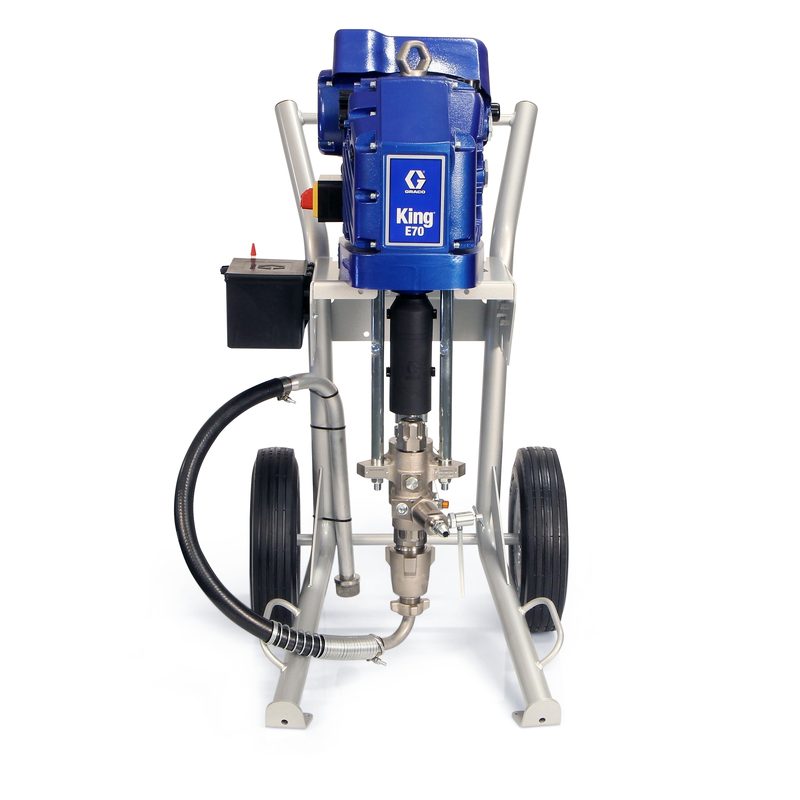

Graco King E70 Heavy Duty Cart Integrated Filter BARE
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 273747 King E70 Heavy Duty Cart Integrated Filter BARE, part number 273747. King E70 airless sprayer at 70:1 pressure ratio. Maximum working pressure 7250 psi (500 bar). Maximum fluid flow 0.7 gpm (2.6 lpm). For protective coating. Wetted parts: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum. All values read from the Graco product page (273747 on graco.com).
Technical Specifications
- Brand
- Graco Model: King E70 Part number: 273747 Maximum working pressure: 7250 psi (500 bar) Maximum flow rate: 0.7 gpm (2.6 lpm) Product type: Single Leg Type: Airless Sprayer Series: E70 Pump ratio: 70:1 (7250 psi) Motor type: Electric Pump type: Pneumatic Piston Pump Pump rod type: Chromex Pump sleeve material: Hard Chrome, Stainless Steel Lower type: 115cc Xtreme Duty Lower Lower configuration: Integrated Filter Frame configuration: Heavy-Duty Cart Compatible material: Protective Coating material application: Protective Coatings Gun model: No Applicator Number of guns: 1-2 Gun included: 0 Maximum tip size: 0.023 Power source: Electric Pressure control type: Electric Control Knob Phase: 1 Amperage: 120V/30A, 240V/20A Frequency: 50/60 Maximum continuous cycle rate: 44 Inlet paint strainer: 8 Mesh, 16 Mesh Outlet paint filter: 60 Mesh Fluid inlet size: 1 in. NPT Fluid outlet size: 1/2, 3/8 in. NPT Maximum hose length: 210 ft (64 m) Maximum operating temperature: 120 °F (50 °C) minimum operating temperature: 23 °F (-5 °C) minimum generator power: 5 kW Maximum sound pressure level: 77 dB(A) Weight: 295 lb (134 kg) Approved for hazardous locations: No Wetted material: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
Standards & Compliance
- Material
- Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
- Pressure Rating
- 7250 psi (500 bar) max working
- Temperature Range
- 23 to 120 °F
- HS Code
- 8424.20
Compatibility & Fitment
King is Graco's high-pressure airless pump/sprayer line for protective coatings and heavy, high-viscosity materials. The 70:1 pressure ratio sets the achievable fluid pressure for the air (or electric) supply; lower type 115cc Xtreme Duty Lower; frame Heavy-Duty Cart; this is an electric (motor-driven) unit — confirm the supply voltage/phase/amperage and minimum generator power. Confirm the gun/tip and hose suit the coating and viscosity before ordering.
Product Documentation
More from Graco
Graco
Graco King E-Max XT 40:1 Electric Airless Sprayer, Protective Coatings Complete
2009106
Graco
Graco King E-Max XT 40:1 Electric Airless Sprayer, Texture Big 150
2009128
Graco
Graco King E-Max XT 40:1 Electric Airless Sprayer, Texture Complete
2009116
Graco
Graco King E-Max XT 70:1 Electric Airless Sprayer, Protective Coatings Big 150
2009122
Graco
Graco King E-Max XT 70:1 Electric Airless Sprayer, Roofing Big 250
2009126
Graco
Graco King E-Max XT 70:1 Electric Airless Sprayer, Bare 2009104
Graco
Graco King E-Max XT 70:1 Electric Airless Sprayer, Protective Coatings Complete
2009110
Graco
Graco King E-Max XT 40:1 Electric Airless Sprayer, Protective Coatings Big 150
2009118
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 273747?
- 273747 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 273747.
- What is the HS code for 273747?
- The customs tariff (HS) code for 273747 is 8424.20.
- Who manufactures 273747?
- 273747 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 273747?
- Yes — the 273747 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 273747?
- The minimum order quantity is 1.
- Is 273747 available?
- Yes — 273747 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
