Product Description

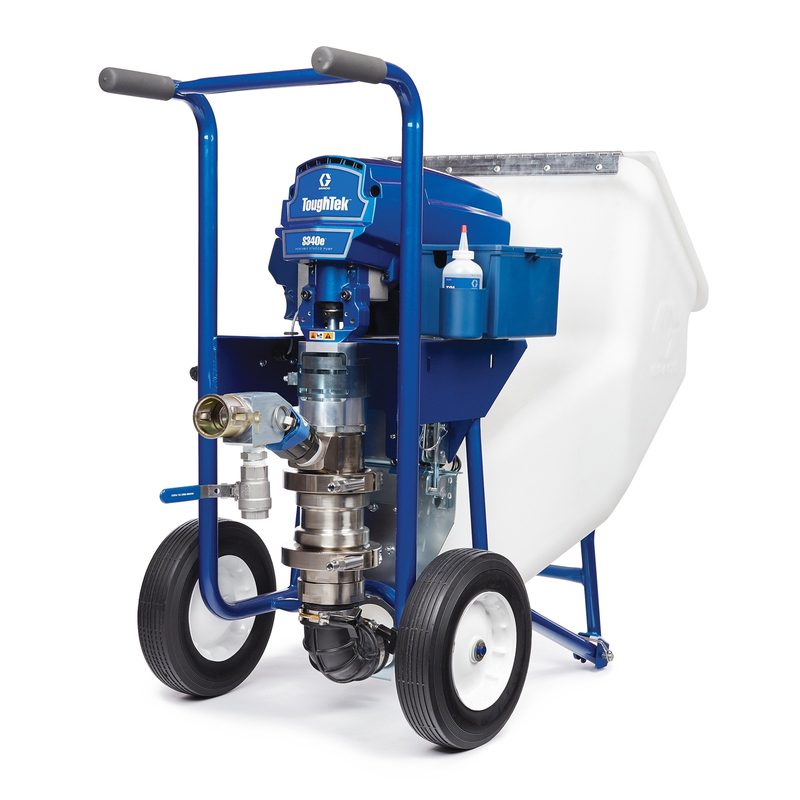

Graco 25A304 ToughTek S340e Bare Piston Pump System, 230V, 10A, part number 25A304. Graco ToughTek S340e piston pump for pumping and spraying cementitious and high-viscosity materials (mortar, plaster, render, stucco, self-levelling underlayment, fireproofing). 600 psi (41.3 bar) maximum working pressure. 6.5 GPM maximum flow. Compatible material: Cementitious material. All values read from the Graco product page (25A304 on graco.com).
Technical Specifications
- Brand
- Graco Line: ToughTek Model: S340e Series: S340e Part number: 25A304 Application: Industrial Compatible material: Cementitious material Fluid Outlet Size (in): 1-1/2 Fluid Outlet Thread Gender: Female Fluid Outlet Thread Type: NPT Fluid Section Type: 2-Ball Input Voltage (V ac): 230 material: Stucco, EIFS, Repair Mortar Maximum Flow Rate (GPM): 6.5 Maximum Input Amperage (A): 10 Maximum Working Pressure (MPa): 4.1 Maximum Working Pressure (psi): 600 minimum Flow Rate (GPM): 600 Power Type: Electric Type: Electric Piston Pump Fluid Outlet Size (mm): 38.1 Maximum Flow Rate (L/min): 24.61 Maximum Working Pressure (bar): 41.3 Maximum Working Pressure (kPa): 4130 Rated current: 10 A
Standards & Compliance
- Pressure Rating
- 600 psi (41.3 bar) max working
- HS Code
- 8413.50
Compatibility & Fitment
ToughTek piston pumps move mortar, plaster, render and fireproofing. Confirm material viscosity, hose length/diameter, applicator type and voltage/phase before ordering; "bare" units exclude hose and applicator.
