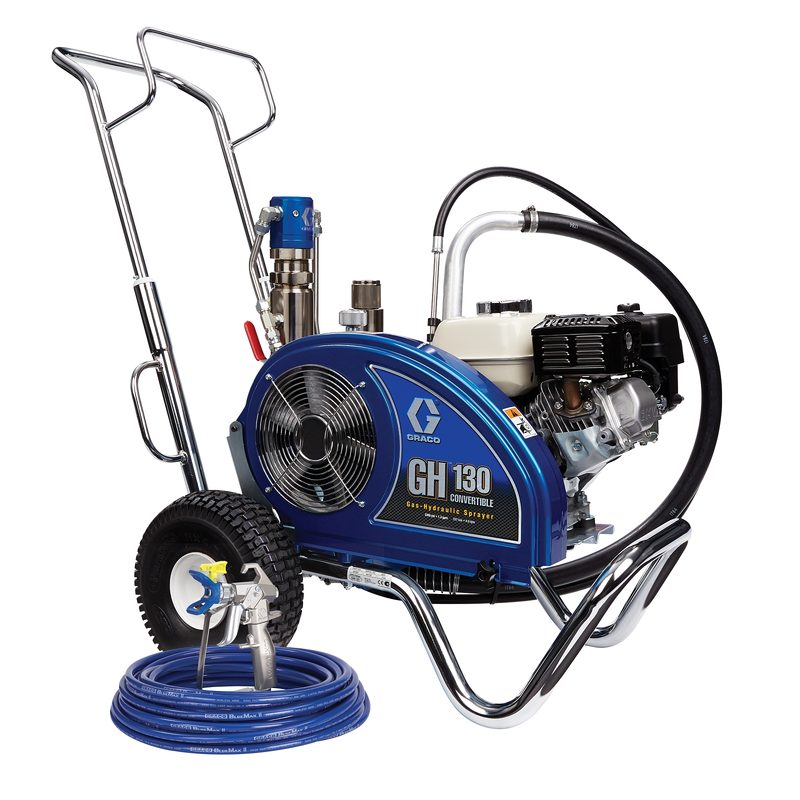

Graco GH 130 Convertible Standard Series Gas Hydraulic Airless Sprayer
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 24W923 GH 130 Convertible Standard Series Gas Hydraulic Airless Sprayer, part number 24W923. Graco GH 130 gas-hydraulic (gas-engine-driven hydraulic) airless sprayer, 3300 psi (228 bar) maximum working pressure, 1.30 GPM maximum flow (4.9 L/min), Honda engine 4 HP. Supports up to 2 gun(s). Compatible material: Acrylics, Paint, Primer. All values read from the Graco product page (24W923 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- GH
- Series
- 130
- Part number
- 24W923
- Type
- Airless Sprayer
- Product series
- Standard
- Convertible
- Yes
- Power source
- Gas Hydraulic
- Engine brand
- Honda
- Engine size
- 4
- Pump rod type
- Chromex
- Pump mount type
- QuikChange
- Frame configuration
- Cart
- Compatible material
- Acrylics, Paint, Primer
- Compatible replacement pump
- 24B748
- Engine power
- 4 HP (120 cc)
- Maximum working pressure
- 3300 psi (228 bar)
- Maximum flow rate
- 1.30 GPM (4.9 L/min)
- Maximum tip size
- 0.037 in
- Maximum tip size, 1 gun
- 0.037 in
- Number of guns supported
- 2
- Maximum hose length
- 300 ft (92 m)
- Fluid inlet size
- 3/4 in MNPT
- Fluid outlet size
- 3/8 in FNPT
- Outlet paint filter
- Easy Out
- Maximum sound pressure level
- 88 dB(A)
- Wetted material
- Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Overall height
- 39.5 in (1003 mm)
- Overall length
- 41 in (1041 mm)
- Overall width
- 24 in (610 mm)
- Weight
- 155 lb (70 kg)
- Recommended annual usage
- Up to 500 gallons per week
- Includes
- Contractor Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
Standards & Compliance
- Pressure Rating
- 3300 psi (228 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Graco GH is a gas-engine hydraulic airless sprayer line for large/commercial paint, coating, texture and protective-coating work. 3300 psi max working pressure; 1.30 GPM max flow; up to 0.037 in tip; up to 2 guns. Confirm tip size, number of guns and coating viscosity before ordering; bare units do not include gun/hose.
