Graco ThermoLazer ProMelt Thermoplastic Striping System
Pricing
Request a quote
We reply within 24 hours
Product Description

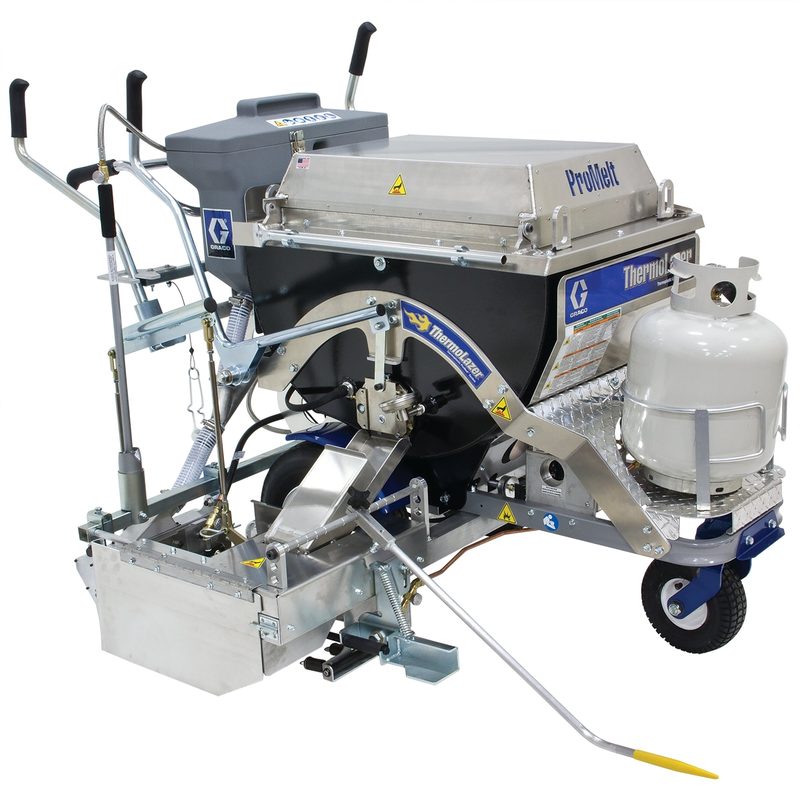

Graco 24H624 ThermoLazer ProMelt Thermoplastic Striping System, part number 24H624. Graco ThermoLazer ProMelt walk-behind line striper for applying hot-melt thermoplastic pavement markings. Gas powered. Includes SmartDie II. Manual gun activation. 250 psi maximum working pressure. One Color. 1 hopper(s). 345 lb bead tank. Compatible materials: Glass Beads, Alkyds, Thermoplastic. For pavement. 345 lb. All values read from the Graco product page (24H624 on graco.com).
Technical Specifications
- Brand
- Graco
- Family
- ThermoLazer ProMelt Thermoplastic Striping System
- Part number
- 24H624
- Bead Tank Size (lb)
- 345
- Compatible Material
- Glass Beads, Alkyds, Thermoplastic
- Compatible Surfaces
- Pavement
- Gun Activation
- Manual
- Includes
- SmartDie II
- Maximum Working Pressure (psi)
- 250
- Model
- ThermoLazer
- Number of Colors
- One Color
- Number of Hoppers
- 1
- Power Source
- Gas
- Series
- ProMelt
- Type
- Walk-Behind Line Striper
- Weight (lb)
- 345
- Maximum Working Pressure (bar)
- 17.24
- Maximum Working Pressure (kPa)
- 172.4
- Weight (kg)
- 157
Standards & Compliance
- Pressure Rating
- 250 psi max
- HS Code
- 8424.89
Compatibility & Fitment
Complete ThermoLazer thermoplastic striping machine. Confirm power source, applied line width (SmartDie size), number of hoppers/colors and thermoplastic material compatibility against the marking application before ordering. Bundled die and bead tank are listed under "Includes" in the specifications.
