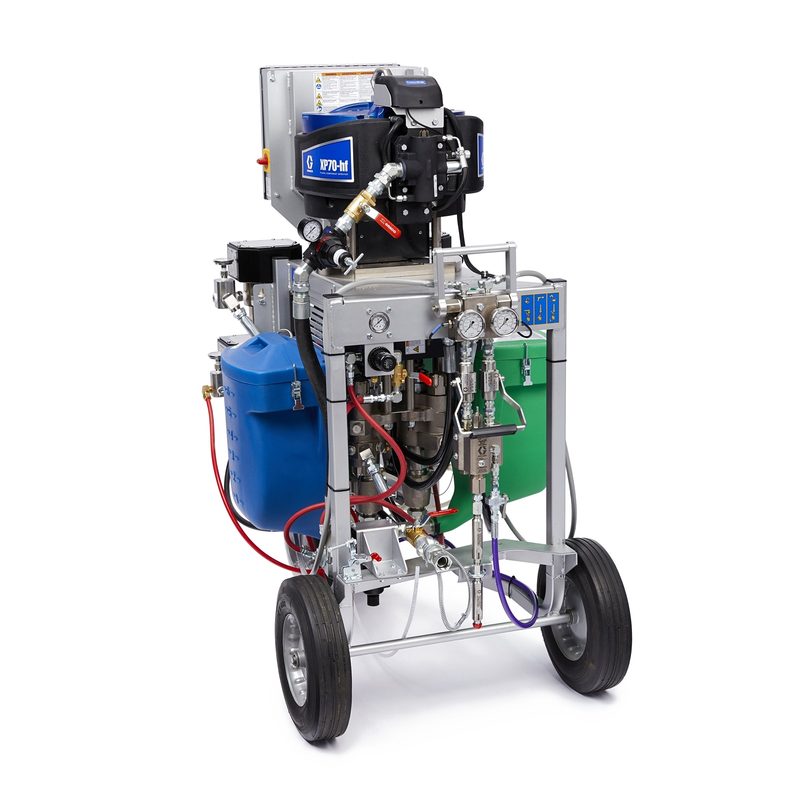

Graco XP70-HF Cart System, Non-Hazardous, 3:1 with Primary Heaters & Hose Heat, 240V

Graco 572307 XP70-hf Cart System, Non-Hazardous, 3:1 with Primary Heaters & Hose Heat, 240V, part number 572307. Graco XP70-hf Cart System plural component sprayer. Air power source. 7100 psi maximum working pressure. All values read from the Graco product page (572307 on graco.com).

Brand

Graco Family: XP70-hf Cart System Part number: 572307 Air Inlet Size (in): 1 Air Inlet Thread Gender: Male Air Inlet Thread Type: NPSM Applicator Type: Automatic Airless, Manual Airless Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents Component Type: Plural-Component Configuration: With Primary Heaters & Hose Heat Fluid Inlet Size (in): 1-1/4 Fluid Inlet Thread Gender: Male Fluid Inlet Thread Type: NPSM Fluid Outlet Size (in): 1/2 Fluid Outlet Thread Gender: Female Fluid Outlet Thread Type: NPT Flush Type: Solvent Hose Length (ft): 35 Includes: 7 Gallon Hoppers, Merkur Solvent Flush Pump, XTR+ Gun, 35 ft integration Hose and Static Mixer, Junction Box, Viscon HF Heaters, Hose Heat Circulation Kit, Remote Carriage, PressureTrak Location Category: Non-Hazardous Location material Application: Coatings, Paints, Primers Maximum Air Inlet Pressure (psi): 100 Maximum Air Pressure (MPa): 0.69 Maximum Air Pressure (psi): 100 Maximum Cycle Rate (CPM): 40 Maximum Flow Rate (GPM): 3 Maximum Flow Rate (cc/min): 11360 Maximum Fluid Temperature (°F): 160 Maximum Fluid Viscosity (cP): 20000 Maximum Hose Length (ft): 300 Maximum Operating Temperature (°F): 130 Maximum Spray Pressure (MPa): 50 Maximum Spray Pressure (psi): 7250 Maximum Working Pressure (MPa): 49 Maximum Working Pressure (psi): 7100 Measuring Type: Fixed Mechanical Positive Displacement minimum Fluid Viscosity (cP): 200 Mix Accuracy (%): +/- 5 Mix Ratio: 3:1 Number of Catalysts: 1 Number of Reducers: 0 Number of Resin Colors: 1 Number of Tanks: 2 Overall Depth (in): 52 Overall Height (in): 62 Overall Width (in): 35 Power Source: Air Product Type: Plural Component Sound Power Level (dB(A)): 96 Sound Pressure Level (dB(A)): 86.8 Type: Plural Component Sprayer Voltage (V): 240 Weight (lb): 775 Wetted material: Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum Hose Length (m): 10.7 Maximum Air Inlet Pressure (bar): 6.9 Maximum Air Inlet Pressure (kPa): 690 Maximum Air Pressure (bar): 6.9 Maximum Air Pressure (kPa): 690 Maximum Flow Rate (L/min): 11.36 Maximum Fluid Temperature (°C): 71 Maximum Hose Length (m): 91.4 Maximum Operating Temperature (°C): 54 Maximum Spray Pressure (bar): 500 Maximum Spray Pressure (kPa): 50000 Maximum Working Pressure (bar): 490 Maximum Working Pressure (kPa): 49000 Overall Depth (cm): 132.1 Overall Depth (mm): 1321 Overall Height (cm): 157.5 Overall Height (mm): 1575 Overall Width (cm): 88.9 Overall Width (mm): 889 Weight (kg): 352

Material

Carbon Steel with Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE Solvent Resistant Plastics, Carbon Filled PTFE, Aluminum

Pressure Rating

7100 psi max

Temperature Range

up to 130 °F

HS Code

8424.20
