Product Description

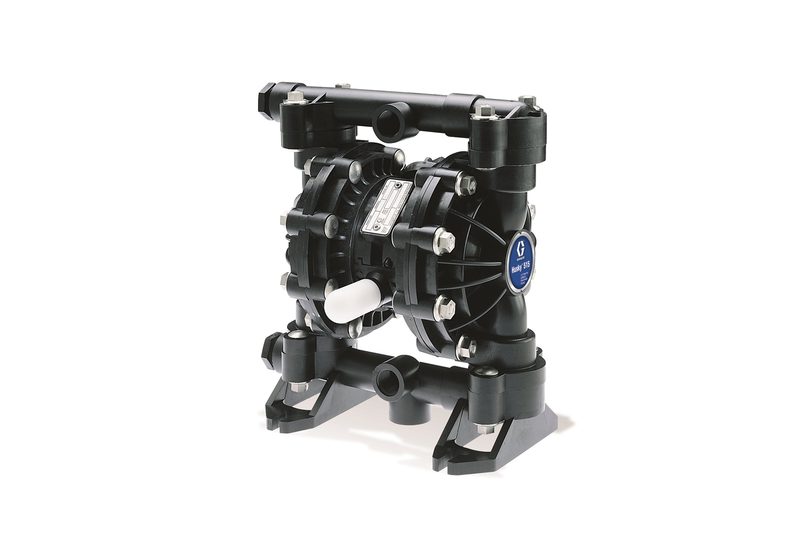

Graco Husky 515 air-operated double diaphragm (AODD) pump, part number 246366, with a carbon steel fluid section and a drum riser tube for drum evacuation. Fluid ports are 1/2 in. (12.7 mm), npt(f) or bspt(f). Maximum free-flow delivery 7.5 gpm (28.4 lpm) at up to 100 psi (6.9 bar) fluid pressure; maximum pump speed 400 cpm; handles solids to 3/32 in (2.4 mm).
Technical Specifications
- Brand
- Graco Range: Husky 515 (air-operated double diaphragm), 1/2 in. Part number: 246366 Fluid section material: carbon steel Configuration: pump with drum riser tube (drum-evacuation) Maximum fluid working pressure: 100 psi (6.9 bar) Maximum free-flow delivery: 7.5 gpm (28.4 lpm) Maximum pump speed: 400 cpm Maximum size pumpable solids: 3/32 in (2.4 mm) Maximum air consumption: 28 scfm Maximum air pressure: 100 psi (6.9 bar) Air inlet size: 1/4 in npt(f) Air exhaust port size: 3/8 in npt(f) Fluid inlet and outlet size: 1/2 in (12.7 mm), npt(f) or bspt(f) (specify when ordering)
Standards & Compliance
- Material
- Carbon Steel (fluid section)
- Pressure Rating
- 100 psi (6.9 bar)
- HS Code
- 8413.81
Compatibility & Fitment
Husky 515 series, 1/2 in. air-operated double diaphragm pump, carbon steel fluid section. Drum-riser-tube configuration for drum evacuation. Repair kits, seats, balls and diaphragms are selected per the Graco 308981 manual pump matrix and by fluid compatibility. Fluid connections are available NPT or BSPT. Confirm fluid compatibility before ordering.
