Product Description

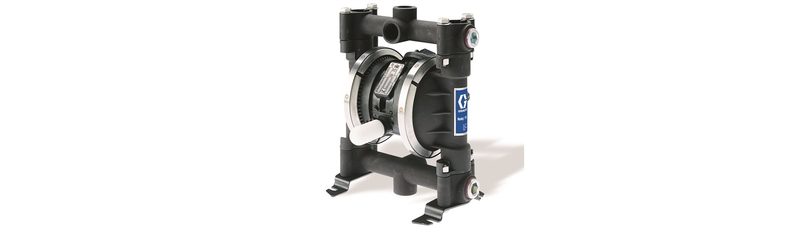

Graco Husky 716 air-operated double diaphragm (AODD) pump, part number 246367, with a carbon steel fluid section and a drum riser tube for drum evacuation. Fluid ports are 3/4 in. (19.05 mm), npt(f) or bspt(f). Maximum free-flow delivery 7.5 gpm (28.4 lpm) at up to 100 psi (7 bar) fluid pressure; maximum pump speed 400 cpm; handles solids to 3/32 in (2.4 mm).
Technical Specifications
- Brand
- Graco Range: Husky 716 (air-operated double diaphragm), 3/4 in. Part number: 246367 Fluid section material: carbon steel Configuration: pump with drum riser tube (drum-evacuation) Maximum fluid working pressure: 100 psi (7 bar) Maximum free-flow delivery: 7.5 gpm (28.4 lpm) Maximum pump speed: 400 cpm Maximum size pumpable solids: 3/32 in (2.4 mm) Maximum air consumption: 28 scfm Maximum air pressure: 100 psi (7 bar) Air inlet size: 1/4 in npt(f) Air exhaust port size: 3/8 in npt(f) Fluid inlet and outlet size: 3/4 in (19.05 mm), npt(f) or bspt(f) (specify when ordering) Operating temperature (Graco product page): 40–225 degF (4–107 degC) Weight: 8.5 lb
Standards & Compliance
- Material
- Carbon Steel (fluid section)
- Pressure Rating
- 100 psi (7 bar)
- Temperature Range
- 40 to 225 degF (4 to 107 degC) per the Graco product page
- HS Code
- 8413.81
Compatibility & Fitment
Husky 716 series, 3/4 in. air-operated double diaphragm pump, carbon steel fluid section. Drum-riser-tube configuration for drum evacuation. Repair kits, seats, balls and diaphragms are selected per the Graco 308981 manual pump matrix and by fluid compatibility. Fluid connections are available NPT or BSPT. Confirm fluid compatibility before ordering.
Product Documentation
More from Graco
Graco
Graco Husky 2150 air-operated double diaphragm pump, aluminium, 2 in. NPT DF3GG6
Graco
Graco Husky 2150 air-operated double diaphragm pump, aluminium, 2 in. NPT DF3GGG
Graco
Graco Husky 2150 air-operated double diaphragm pump, stainless steel, 2 in. NPT DF4GGG
Graco
Graco Husky 2150 air-operated double diaphragm pump, aluminium, 2 in. BSPT
DFC411
Graco
Graco Husky 2150 air-operated double diaphragm pump, stainless steel, 2 in. NPT DV4366
Graco
Graco Husky 2150 air-operated double diaphragm pump, stainless steel, 2 in. NPT DV4666
Graco
Graco RAC X SwitchTip reversible airless spray tip, 0.015 in. orifice, 8 in. fan width
LTX415
Graco
Graco RAC X SwitchTip reversible airless spray tip, 0.017 in. orifice, 10 in. fan width
LTX517
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 246367?
- 246367 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 246367.
- What is the HS code for 246367?
- The customs tariff (HS) code for 246367 is 8413.81.
- Who manufactures 246367?
- 246367 is a Graco product in the Pumps range.
- Is a datasheet available for 246367?
- Yes — the 246367 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 246367?
- The minimum order quantity is 1.
- Is 246367 available?
- Yes — 246367 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
