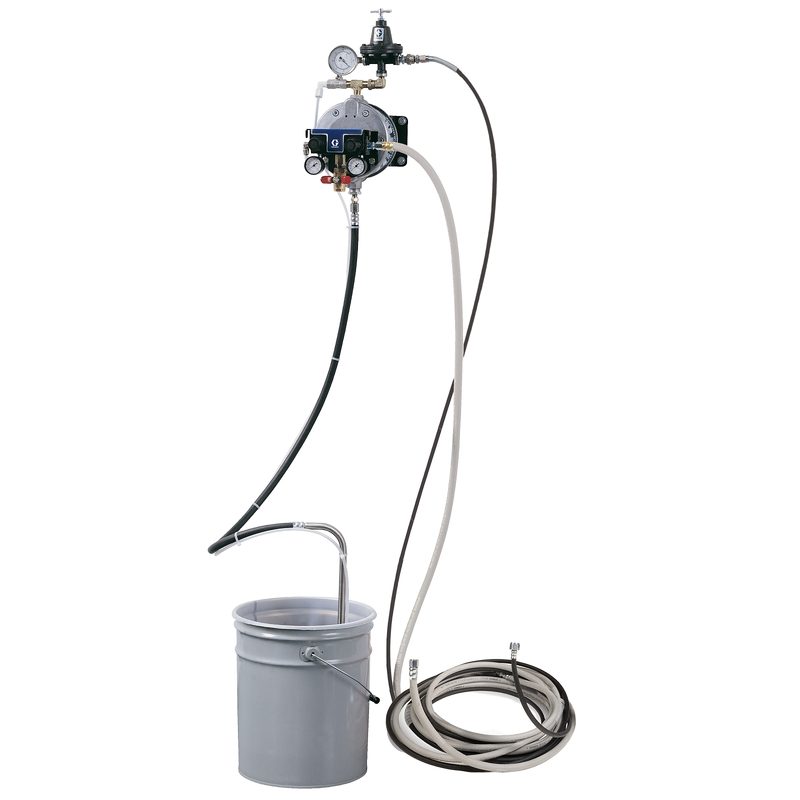

Graco Triton 308 8.5 gpm aluminum bare pump package, wall mount
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 233487 Triton 308 8.5 gpm aluminum bare pump package, wall mount, part number 233487. Pneumatic Diaphragm Pump, 1:1 pump ratio. Maximum working pressure 100 psi (7 bar); maximum fluid flow 8.5 gpm (32 lpm). Aluminum fluid section. Wall Mount. Bare package — no applicator supplied. All values read from the Graco product page (233487 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Triton
- Series
- 308
- Part number
- 233487
- Product type
- Bare Package
- Material
- Aluminum
- Pump type
- Pneumatic Diaphragm Pump
- Pump ratio
- 1:1
- Power source
- Air
- Maximum working pressure
- 100 psi (7 bar)
- Maximum flow rate
- 8.5 gpm (32 lpm)
- Maximum air inlet pressure
- 100 psi (7 bar)
- Pressure type
- Low Pressure
- Gun technology
- Bare Package
- Gun type
- No Applicator
- Sprayer type
- Air Spray
- Mount type
- Wall Mount
- Fluid inlet size
- 3/4 in. (19.05 mm)
- Fluid inlet thread type
- NPT
- Fluid outlet size
- 3/8 in. (9.525 mm)
- Fluid outlet thread type
- NPT
- Compatible material
- CARC, Enamel, High Solids, Latex, Lacquer, Metallics, Solventborne Paints, Solventborne, Epoxy Coating, Single-Component
- Weight
- 18.96 lb (8.6 kg)
Standards & Compliance
- Material
- Aluminum
- Pressure Rating
- 100 psi (7 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
Triton is Graco's air-powered (pneumatic diaphragm) finishing pump line. The 1:1 pump ratio feeds fluid at supply-air pressure; the aluminum fluid section is matched to the coating being handled. This is a bare package; select and add the applicator, hoses and tip to suit the application. Confirm the compressed-air supply and mount suit the installation before ordering.
