Graco TC Pro PLUS Cordless Handheld Airless Sprayer
Pricing
Request a quote
We reply within 24 hours
Product Description

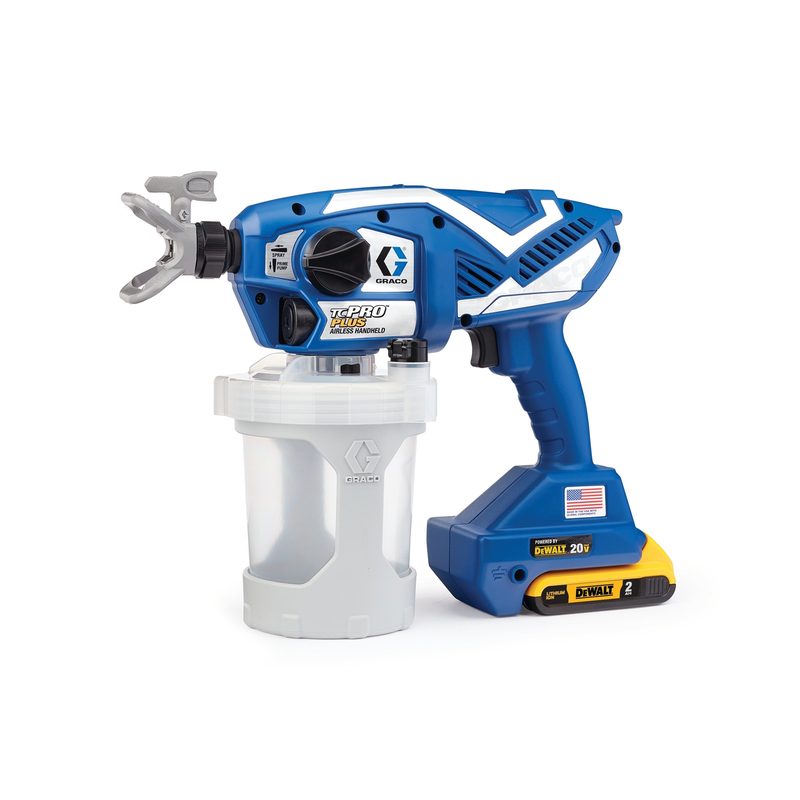

Graco 17N223 TC Pro PLUS Cordless Handheld Airless Sprayer, part number 17N223. Graco TC Pro PLUS Cordless Handheld Airless Sprayer handheld cordless airless sprayer. Battery Powered power source. 20 V Lithium-ion battery. 2000 psi maximum working pressure. Maximum tip size 0.016 in. Handheld frame. Recommended annual usage 50 gal. All values read from the Graco product page (17N223 on graco.com).
Technical Specifications
- Brand
- Graco Family: TC Pro PLUS Cordless Handheld Airless Sprayer Part number: 17N223 Battery Capacity (Ah): 2 Battery Chemistry: Lithium-ion Battery Voltage (V): 20 Compatible Replacement Pump: 17P187 Compatible Tip Size (in): 0.008, 0.010, 0.012, 0.014, 0.016 Frame Configuration: Handheld Includes: TC Pro 210 Spray Tip, TC Pro 514 Spray Tip, TC Pro PLUS Guard, 6 - 32 oz FlexLiner Bags, 2 - DEWALT 20V MAX 2.0 Ah Lithium Ion Batteries, DEWALT 20V MAX Battery Charger, 60 Mesh Filter, 100 Mesh Filter, Storage Bag, Pump Armor Storage Fluid 4 oz Maximum Flow Rate (GPM): 0.05 Maximum Tip Size (in): 0.016 Maximum Working Pressure (MPa): 14 Maximum Working Pressure (psi): 2000 minimum Working Pressure (psi): 500 Model: TC Pro PLUS Overall Height (in): 10.5 Overall Length (in): 14.0 Overall Width (in): 5 Power Source: Battery Powered Pressure Control Type: ProControl II Recommended Annual Usage (gal): 50 Series: Cordless Type: Handheld Cordless Airless Sprayer Weight (lb): 5 Maximum Flow Rate (L/min): 0.2 Maximum Working Pressure (bar): 138 Maximum Working Pressure (kPa): 13800 minimum Working Pressure (bar): 35 minimum Working Pressure (kPa): 3500 Overall Height (cm): 26.7 Overall Height (mm): 267 Overall Length (cm): 36.1 Overall Length (mm): 361 Overall Width (cm): 12.7 Overall Width (mm): 127 Weight (kg): 2
Standards & Compliance
- Pressure Rating
- 2000 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm power source/battery, maximum tip size, pump type and frame configuration against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco Magnum PROX19 Cordless TrueAirless Sprayer, Cart
25U478
Graco
Graco TrueCoat 360 Cordless Connect Drill Sprayer
26D360
Graco
Graco Ultra Cordless Handheld Airless Sprayer
17M363
Graco
Graco Ultra Cordless Handheld Airless Sprayer, Tool-Only
17P515
Graco
Graco Ultra 490 XT Electric Airless Sprayer, Lo-Boy
19D520
Graco
Graco Ultra 490 XT Electric Airless Sprayer, Hi-Boy
19D521
Graco
Graco Ultra 490 XT Electric Airless Sprayer, Stand
19D519
Graco

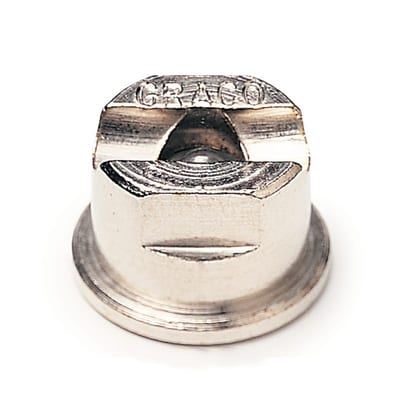

Graco Contractor Flat Tip, 517
