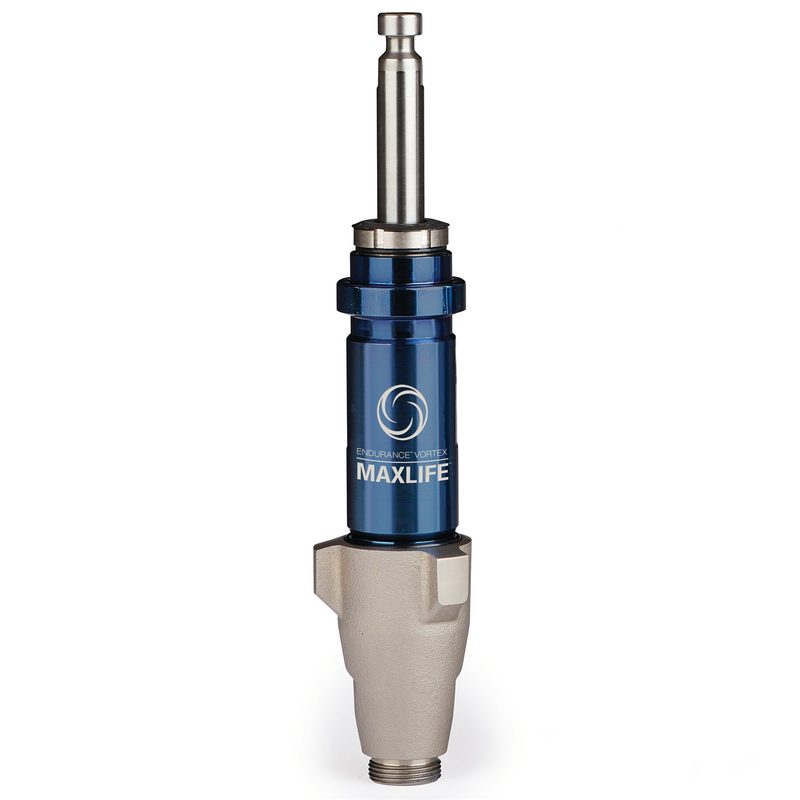

Graco 17H824 Endurance Vortex MaxLife Piston Pump
Graco · Pumps · Replacement Pumps
Graco 17H824 Endurance Vortex MaxLife Piston Pump, part number 17H824. Graco Endurance Vortex MaxLife replacement piston (displacement) pump / lower for airless paint sprayers. 3300 psi maximum working pressure. Fluid inlet 1 5/16 in Male UN; fluid outlet 3/8 in Female NPT. For use with: Ultra Max II 1095 ProContractor Series (2019 and newer), Ultra Max II 1595 ProContractor Series (2019 and newer), GMAX II 5900 ProContractor Series (2019 and newer). All values read from the Graco product page (17H824 on graco.com).
Specifications
- Part number
- 17H824
- HS code
- 8413.91
- Pressure rating
- 3300 psi max working
Compatibility
Endurance replacement pumps are displacement lowers fitted to Graco airless sprayers. Match the pump to the host sprayer model and production year (this part: Ultra Max II 1095 ProContractor Series (2019 and newer), Ultra Max II 1595 ProContractor Series (2019 and newer), GMAX II 5900 ProContractor Series (2019 and newer)); confirm fluid outlet size and thread before ordering.
