Product Description

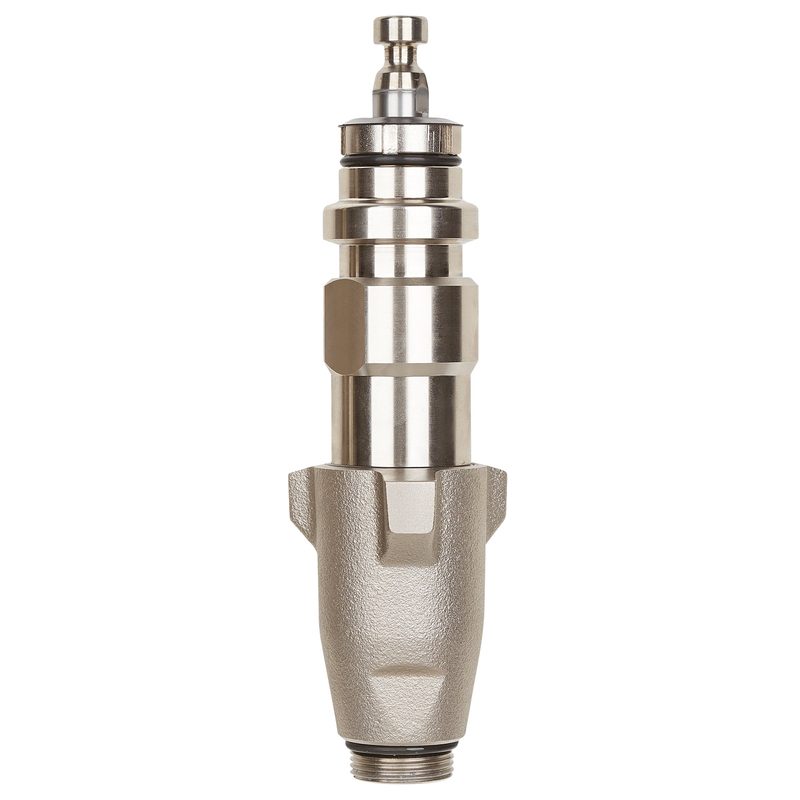

Graco 16X414 Endurance Chromex Piston Pump, part number 16X414. Graco Endurance Chromex replacement piston (displacement) pump / lower for airless paint sprayers. 3300 psi maximum working pressure. Fluid inlet 1 5/16 in Male UN; fluid outlet 3/8 in Female NPT. For use with: GMAX II 3900 Standard Series Lo-Boy (2014 and newer). All values read from the Graco product page (16X414 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- Endurance
- Model
- Endurance
- Series
- Chromex
- Part number
- 16X414
- Fluid Inlet Size (in)
- 1 5/16
- Fluid Inlet Thread Gender
- Male
- Fluid Inlet Thread Type
- UN
- Fluid Outlet Size (in)
- 3/8
- Fluid Outlet Thread Gender
- Female
- Fluid Outlet Thread Type
- NPT
- For Use With
- GMAX II 3900 Standard Series Lo-Boy (2014 and newer)
- Maximum Working Pressure (psi)
- 3300
- Type
- Replacement Pump
Standards & Compliance
- Pressure Rating
- 3300 psi max working
- HS Code
- 8413.91
Compatibility & Fitment
Endurance replacement pumps are displacement lowers fitted to Graco airless sprayers. Match the pump to the host sprayer model and production year (this part: GMAX II 3900 Standard Series Lo-Boy (2014 and newer)); confirm fluid outlet size and thread before ordering.
