Graco FinishPro II 395 PC Electric Air-Assisted Airless Sprayer
Pricing
Request a quote
We reply within 24 hours
Product Description

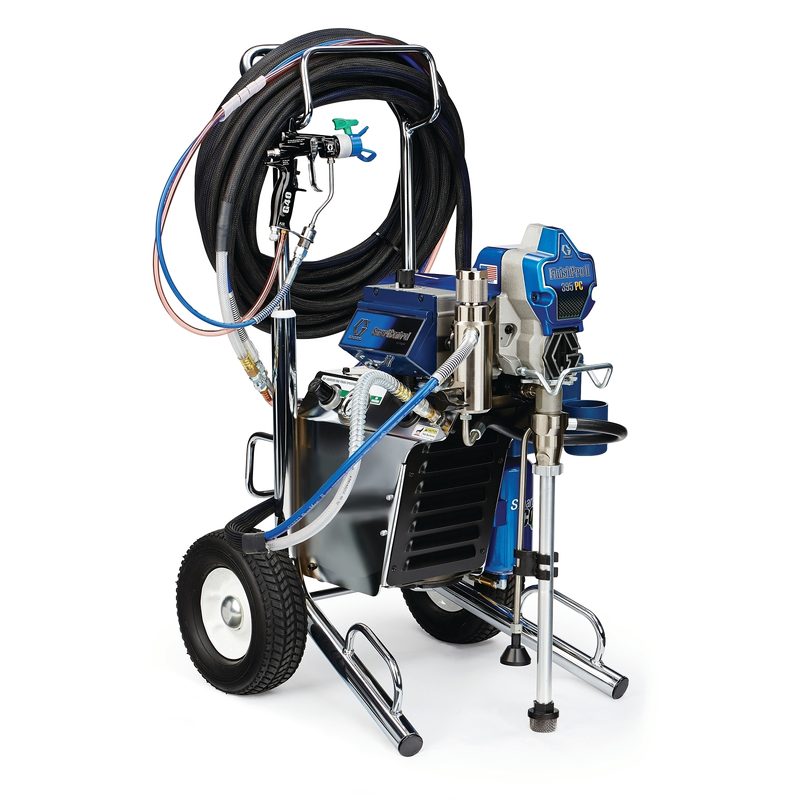

Graco 17C417 FinishPro II 395 PC Electric Air-Assisted Airless Sprayer, part number 17C417. Graco FinishPro air-assisted airless sprayer. Electric power source. 3300 psi maximum working pressure. 0.47 gpm maximum flow rate. Maximum tip size 0.021 in. 1 gun(s) supported. Cart frame. Wetted material Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel. All values read from the Graco product page (17C417 on graco.com).
Technical Specifications
- Brand
- Graco Line: FinishPro Part number: 17C417 Amperage (A): 15 Engine Size (HP): 0.875 Frame Configuration: Cart Gun Included: 1 Includes: G40 Gun Air-Assisted Airless Gun, RAC X FF LP 210 Spray Tip, RAC X 517 Spray Tip, RAC X Air-Assisted Airless Guard, Fine Finish Flat Tip Kit, Fine Finish 309 Flat Tip, 50 ft Super-Flex Hose Set, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz. Inlet Paint Strainer: 100 Mesh Stainless Steel Screen Maximum Flow Rate (GPM): 0.47 Maximum Hose Length (ft): 50 Maximum Sound Pressure Level (dB(A)): 79 Maximum Tip Size (in): 0.021 Maximum Tip Size 1 Gun (in): 0.021 Maximum Working Pressure (MPa): 22.8 Maximum Working Pressure (psi): 3300 minimum Generator Power (W): 4000 Model: FinishPro II Motor Type: TEFC DC Number of Guns: 1 Outlet Paint Filter: 100 Mesh Stainless Steel Screen Overall Height (in): 40.5 Overall Length (in): 32.5 Overall Width (in): 21 Phase: 1 Power Rating (HP): 0.875 Power Source: Electric Pressure Control Type: SmartControl 1.0 Pump Mount Type: ProConnect Pump Rod Type: Chromex Pump Type: Endurance Series: 395 PC Spray Type: Air-Assisted Airless Type: Air-Assisted Airless Sprayer Voltage (V): 120 Weight (lb): 110 Wetted material: Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel Maximum Hose Length (m): 15.25 Maximum Tip Size (cm): 0.0533 Maximum Tip Size (mm): 0.5334 Maximum Tip Size 1 Gun (cm): 0.0533 Maximum Tip Size 1 Gun (mm): 0.5334 Maximum Working Pressure (bar): 228 Maximum Working Pressure (kPa): 22800 Overall Height (cm): 102.8 Overall Height (mm): 1028 Overall Length (cm): 82.5 Overall Length (mm): 825 Overall Width (cm): 53.3 Overall Width (mm): 533 Recommended Annual Usage: Up to 1095 gallons per year Weight (kg): 49.9
Standards & Compliance
- Material
- Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel
- Pressure Rating
- 3300 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm engine/power source, maximum tip size, number of guns and wetted material against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco FinishPro II 595 PC Pro Electric Air-Assisted Airless Sprayer
17E908
Graco
Graco TC Pro Cordless Handheld Airless Sprayer
17N166
Graco
Graco TC Pro PLUS Cordless Handheld Airless Sprayer
17N223
Graco
Graco Magnum PROX19 Cordless TrueAirless Sprayer, Cart
25U478
Graco
Graco TrueCoat 360 Cordless Connect Drill Sprayer
26D360
Graco

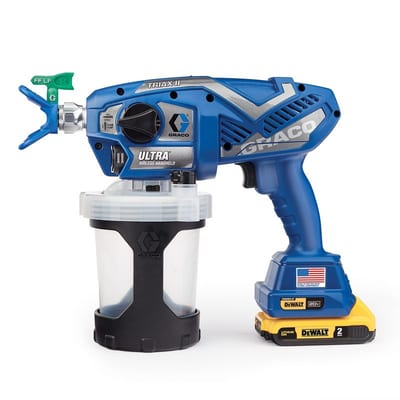

Graco Ultra Cordless Handheld Airless Sprayer
17M363
Graco

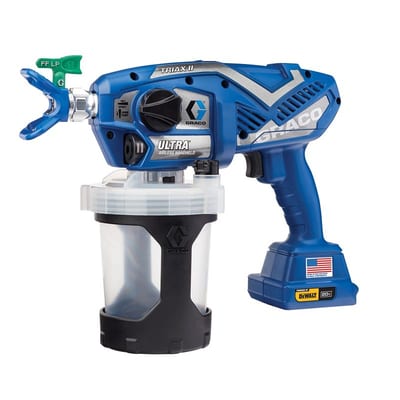

Graco Ultra Cordless Handheld Airless Sprayer, Tool-Only
