Glamox
E20-S G2 LED M/NM E3/ST
Part numberE20660302EAN / GTIN7020940359832
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

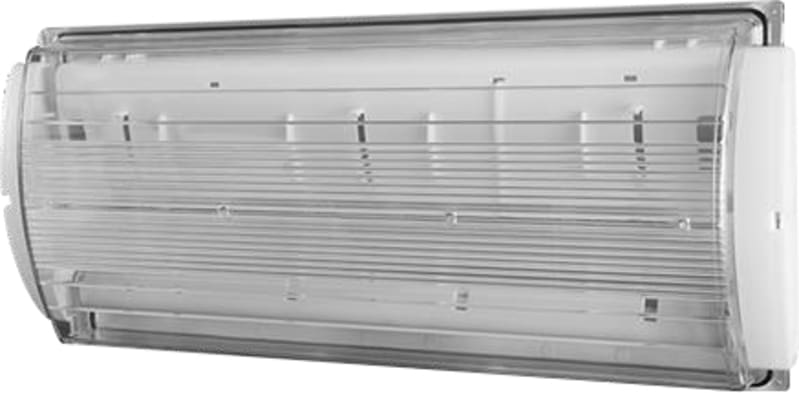

Glamox E20660302 E20-S G2 LED M/NM E3/ST.
Technical Specifications
- Manufacturer part number (MPN)
- E20660302 EAN / GTIN: 7020940359832 Sales unit: pcs Product shape: Rectangular minimum ambient temperature (ºC): -20 Maximum ambient temperature (°C): 30 IK classification: 06 IP classification: 65 Light source: LED Lumen out (lm): 132 Lumen per Watt (lm/W): 66 MacAdam step: 3 Type of LED Driver: M-NM: Maintained/Non-Maintained L70 Median useful life LED Ta25 (hr): 70000 L80 Median useful life LED Ta25 (hr): 50000 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Total consumption (W): 3.30 IEC Protection Class: II Power factor: 85 Type of emergency: ST = Self test Duration in battery mode (hrs): 3 Charging power consumption (Emg) (W): 1.50 Output in battery mode (%): 100 Reading distance sign (m): 24 Main body material: Polycarbonate Surface treatment: Reinforced Body colour: WH - White Main body colour name: White Length (mm): 330 Width (mm): 144 Height (mm): 78 Net weight (kg): 0.83 Termination: 3x2x2.5mm2 Push In Product mounting: Ceiling surface,Wall surface Item gross weight (kg): 0.90
Cross References
- EAN 7020940359832
- SAP 1200566848
- Code 82907680
Product Documentation
Document preview: E20-S G2 LED M/NM E3/ST (E20660302) — Specification sheet
