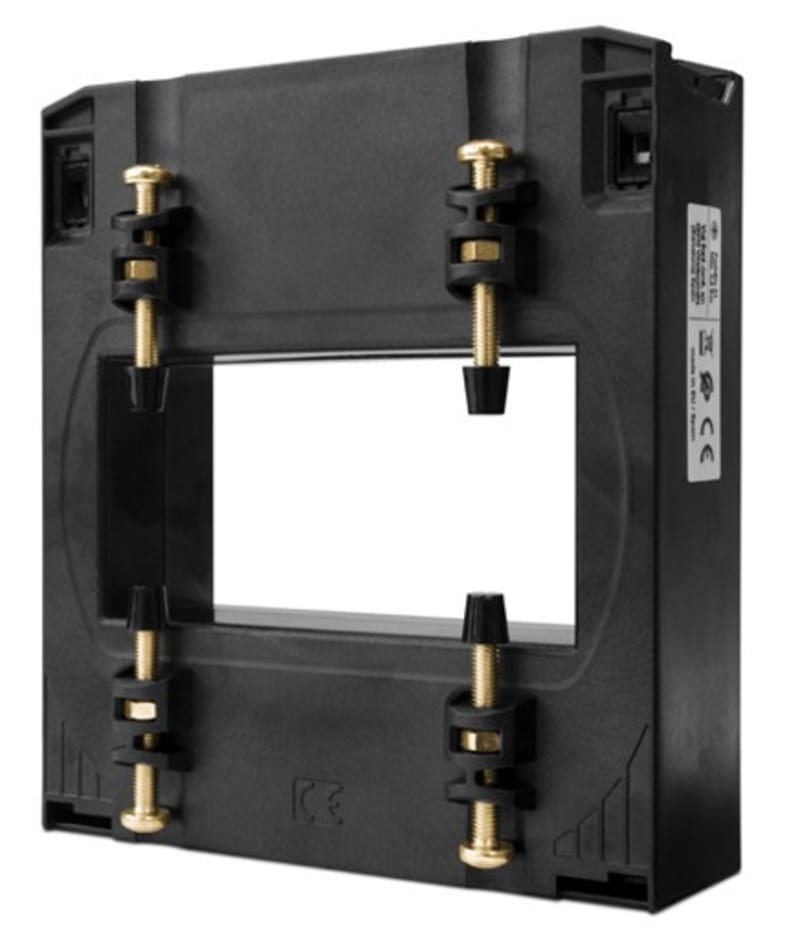

Current Transformer TDH12 1200/5A kl 0,2S (CI7708HFU01)
Function

Current Transformer TDH12 1200/5A kl 0,2S

Part numberCI7708HFU01EAN / GTIN8433059423193HS code8504.31
Electrical Components
Current Transformers
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote
EmailDatasheet

Product Description

Function CI7708HFU01 Current transformer TDH12 1200/5A kl 0,2s.

Technical Specifications

Manufacturer part number (MPN)
CI7708HFU01 EAN / GTIN: 8433059423193 Sales unit: pcs minimum order quantity: 3 Model: Through-feed current converter Rated primary current: 1200 A Rated secondary current: 5 A Rated secondary apparent power: 3.5 VA Accuracy class: 0.2S Overcurrent limiting factor: FS 5 Calibrated: Yes With contact protection: No Height opening: 0–50 mm Width opening: 0–100 mm Opening diameter: 50 mm With copper rail: No Number of primary inputs: 2 Secondary connection: Screw connection Country of origin: Spain

Standards & Compliance

HS Code
8504.31

Cross References

  • EAN 8433059423193
  • SAP 1200880985
  • Code 84111634

Product Documentation

Current Transformer TDH12 1200/5A kl 0,2S (CI7708HFU01) — Specification sheetDownload
Document preview: Current Transformer TDH12 1200/5A kl 0,2S (CI7708HFU01) — Specification sheet
