Function

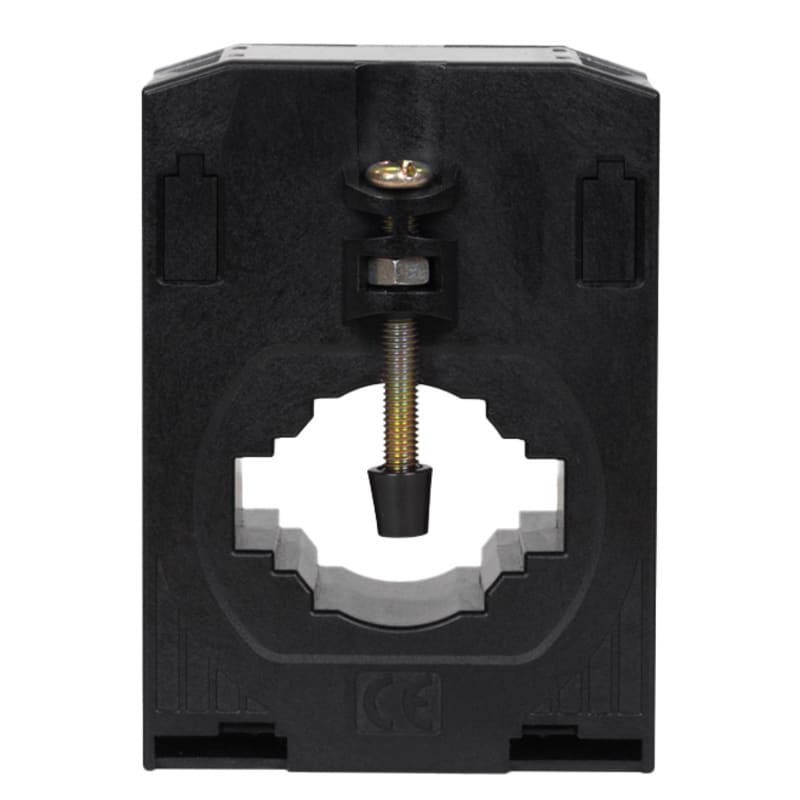

Current Transformer TD6 750/5A kl 0,5
Part numberCI7504EEAN / GTIN8433059310042HS code8504.31
Electrical Components
Current Transformers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Function CI7504E Current transformer TD6 750/5A class 0,5.
Technical Specifications
- Manufacturer part number (MPN)
- CI7504E
- EAN / GTIN
- 8433059310042
- Sales unit
- pcs
- Model
- Through-feed current converter
- Rated primary current
- 750 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 5 VA
- Accuracy class
- 0.5
- Overcurrent limiting factor
- FS 5
- Calibrated
- Yes
- With contact protection
- No
- Height opening
- 0–30 mm
- Width opening
- 0–40 mm
- Opening diameter
- 28 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 2
- Secondary connection
- Screw connection
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 8433059310042
- SAP 1200723836
- Code 83860313
Product Documentation
Document preview: Current Transformer TD6 750/5A kl 0,5 (CI7504E) — Specification sheet
More from Function
Function
KNX CO2 SEN.With TEMP.REG.SV.MATT
GB2104005
Function
5-H Frame White E2 (GI21529)
Function
Function LA1094BT Annual Time Switch MM7587 2-Channel 12-24 V AC/DC, Bluetooth
Function
Current Transformer TD6 250/5A kl 0,5
CI75049
Function
Sentralstyrings gateway MSW5
OJ1055
Function
Delbar current transformer STP40L1000/5A Ø40X87MM
8005164
Function
Delbar current transformer STP40 800/5A Ø40mm
8005159
Function
Cover FOR LED1 MATT Black
SE99256MSV
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CI7504E?
- CI7504E can be ordered from cballast.com as a Function catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Function product?
- The manufacturer part number is CI7504E.
- What is the HS code for CI7504E?
- The customs tariff (HS) code for CI7504E is 8504.31.
- Who manufactures CI7504E?
- CI7504E is a Function product in the Electrical Components range.
- Is a datasheet available for CI7504E?
- Yes — the CI7504E datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CI7504E?
- The minimum order quantity is 1.
- Is CI7504E available?
- Yes — CI7504E is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
