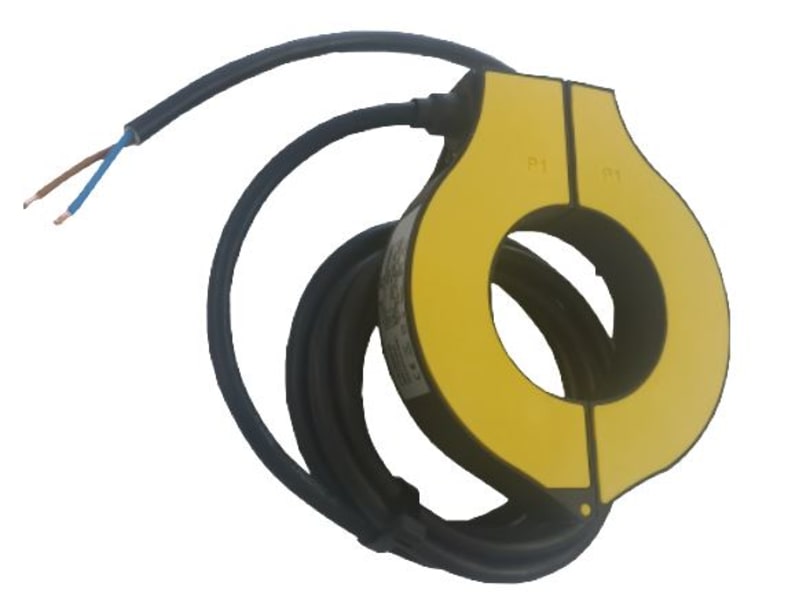

Function TP-LOOP80 Split-Core Current Transformer 1200/5 A Class 0.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Function TP-LOOP80 split-core current transformer, 1200/5 A ratio, class 0.5 accuracy with FS 10 overcurrent limiting factor. Ø80 mm light opening with snap mounting, supplied with a 3 m secondary lead (2.5 mm²) and integral contact protection. Country of origin Spain.
Technical Specifications
- Manufacturer part number (MPN)
- SL13511200
- EAN / GTIN
- 7070738012531
- Sales unit
- pcs
- Model
- Pipe stick current converter
- Rated primary current
- 1200 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 6 VA
- Accuracy class
- 0.5
- Overcurrent limiting factor
- FS 10
- With contact protection
- Yes
- Height opening
- 80 mm
- Width opening
- 80 mm
- Opening diameter
- 80 mm
- Snap mounting
- Yes
- With copper rail
- No
- Number of primary inputs
- 1
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7070738012531
- SAP 1200477130
- Code 82557782
