Surge Protection Device TN-S 4-Pole with Alarm Contact
Pricing
Request a quote
We reply within 24 hours
Product Description
Function SEM4-40/275 TNS IR Surge protection device Type 2 SEM4-40/275 TNS IR, pluggable, 4-pole, with relay contact.
Technical Specifications
- Manufacturer part number (MPN)
- SEM4-40/275 TNS IR
- EAN / GTIN
- 7070587117869
- Sales unit
- pcs
- Number of poles
- 4P
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- No
- Number of conductors (without earthing)
- 4
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 400 V
- Max. continuous voltage AC
- 550 V
- Voltage protection level L-N
- 1.3 kV
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated backup fuse
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 4 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 7070587117869
- SAP 1000331959
- Code 81074954
Product Documentation
More from Function
Function
Wall Transmitter Bluetooth, Double, System 55, Pure White Matt
GI246227
Function

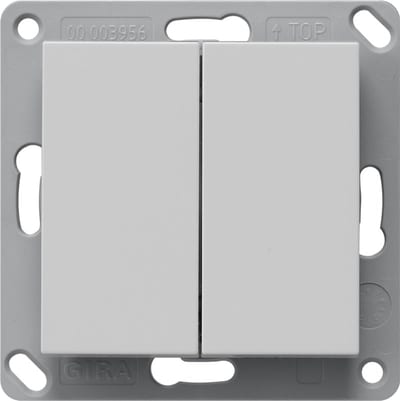

Wall Transmitter Bluetooth, Double, System 55, Grey Matt
GI2462015
Function
Tilst.-sensor P46MR DALI S/BMS 12-13M SF
353-651021
Function

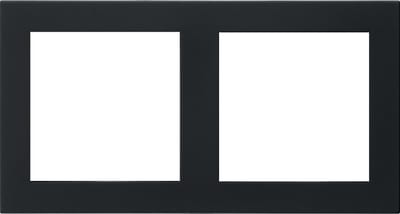

Frame E2 Black MATT 2H
GI021209
Function

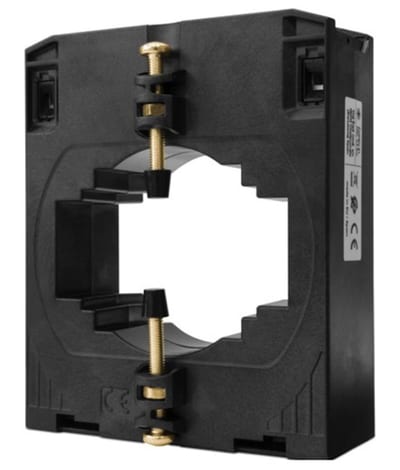

Current Transformer TDH10 800/5A kl 0,2S
CI7707FFU01
Function

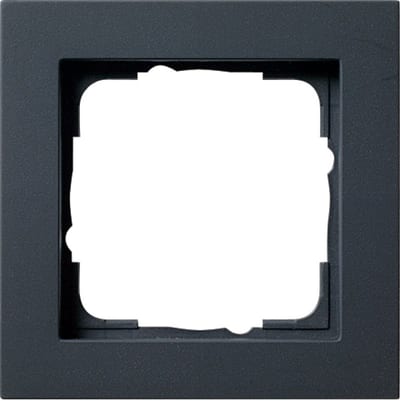

1-H Frame ANTR E2 (GI21123)
Function

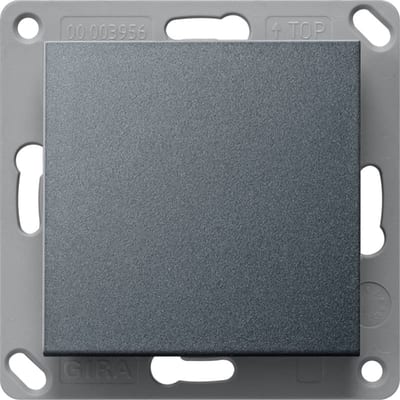

Wall Transmitter Bluetooth, Single, System 55, Anthracite
GI246128
Function

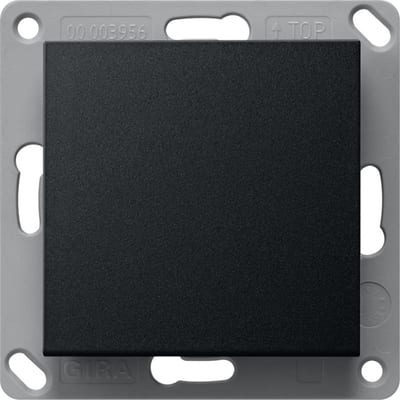

Wall Transmitter Bluetooth, Single, System 55, Black Matt
