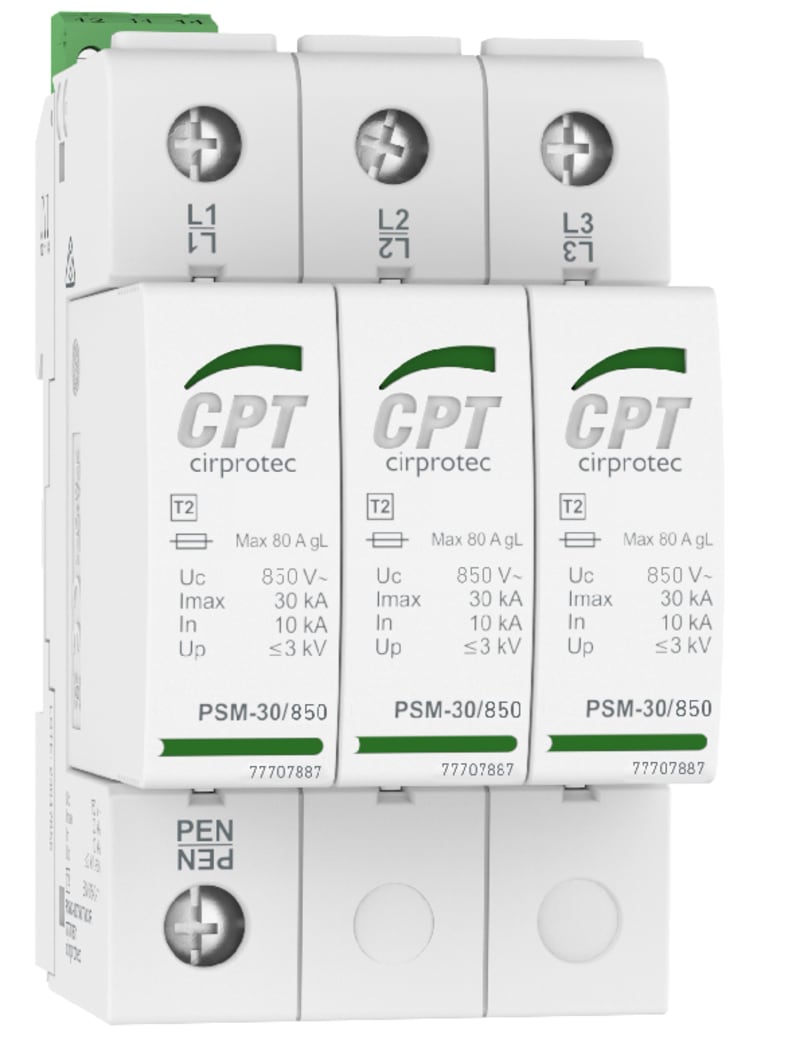

Surge protection device PSM3 30/850-690V IT IR
Pricing
Request a quote
We reply within 24 hours
Product Description
Function CP77707887 Surge protection device PSM3-30/850 IT IR 690V mains.
Technical Specifications
- Manufacturer part number (MPN)
- CP77707887
- EAN / GTIN
- 8435297884125
- Sales unit
- pcs
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- No
- System configuration TN-C
- Yes
- System configuration TT
- No
- System configuration other
- No
- Number of conductors (without earthing)
- 3
- Nominal discharge surge current (8/20)
- 15 kA
- Max. discharge surge current (8/20)
- 30 kA
- Nominal voltage AC
- 690 V
- Max. continuous voltage AC
- 850 V
- Voltage protection level
- 3 kV
- Voltage protection level L-N
- 1 kV
- Max. overcurrent protection device, series connection (fuse)
- 80 A
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 8435297884125
- SAP 1200780478
- Code 83939717
