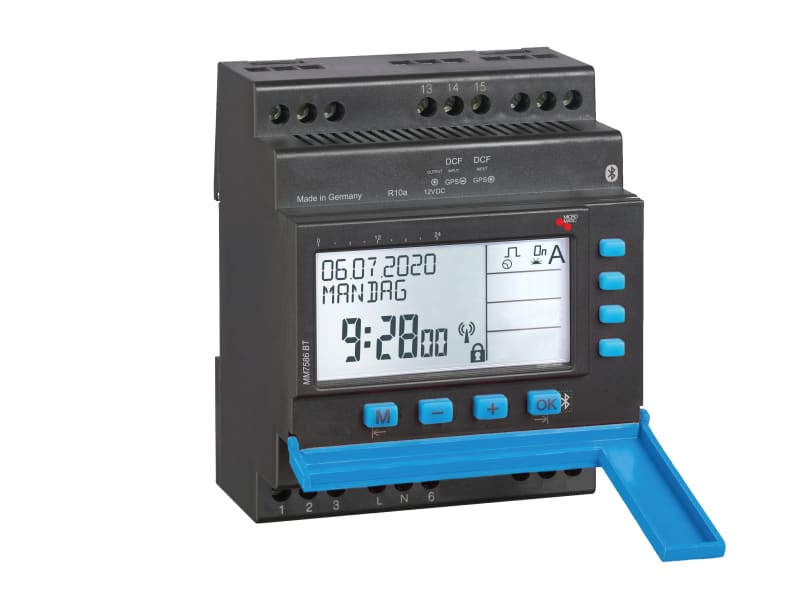

Function Annual Time Switch MM7586 1-Channel 110-230V BT
Pricing
Request a quote
We reply within 24 hours
Product Description
Single-channel annual astronomic time switch for DIN-rail mounting, powered from 110-230 V AC at 50-60 Hz. Provides weekly, annual, holiday, impulse, cycle, astro and random programs with 300 memory locations, Bluetooth external programming and automatic summer/winter switching. Rated 16 A at 250 V AC through a potential-free changeover contact and offers a 10-year battery-backed reserve. Used in lighting, HVAC and process-control switching where seasonal and calendar-based schedules are required.
Technical Specifications
- Manufacturer part number (MPN)
- LA1075BT
- EAN / GTIN
- 4022709241269
- Sales unit
- pcs
- Voltage
- 110-230 V
- Shortest switching time channel 1
- 1 s
- Mounting method
- DIN rail
- Number of channels
- 1
- Supply voltage
- 110–230 V
- Voltage type (supply voltage)
- AC
- Frequency supply voltage
- 50–60 Hz
- Autonomy in hours
- 87600
- Autonomy in years
- 10
- Accuracy per day
- 0.5 s
- Text guidance in display
- Yes
- External programming
- Yes
- With memory card
- No
- 60 min program
- Yes
- 24 h program
- Yes
- Weekly program
- Yes
- Annual program
- Yes
- Holiday program
- Yes
- Impulse program
- Yes
- Cycle program
- Yes
- Astro program
- Yes
- Random program
- Yes
- Hour meter
- Yes
- Mains synchronous
- No
- Quartz controlled
- Yes
- Radio-controlled
- No
- GPS (global positioning system)
- Yes
- Contact type
- Change-over contact
- Number of memory locations
- 300
- Automatic switching summer/winter time
- Yes
- Suitable for manual operation
- Yes
- External push button input
- Yes
- Switching preselection
- Yes
- Nominal switching current at 250 V AC
- 16 A
- Potential free switch contact
- Yes
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Width
- 71.5 mm
- Height
- 90 mm
- Depth
- 58 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9107.00
Cross References
- EAN 4022709241269
- SAP 1200467537
- Code 82536008
Product Documentation
