Function

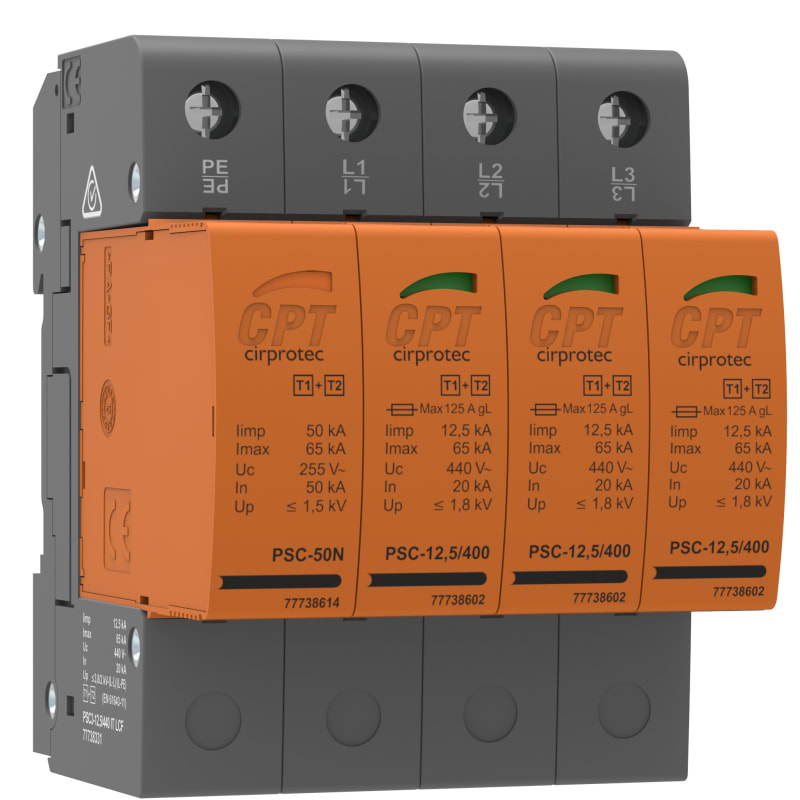

Surge protection device PSC3-12,5/440IT LCF IR
Part numberCP77738332EAN / GTIN8435297855361HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Function CP77738332 Surge protection device PSC3-12,5/440 IT LCF IR.
Technical Specifications
- Manufacturer part number (MPN)
- CP77738332
- EAN / GTIN
- 8435297855361
- Sales unit
- pcs
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- Number of conductors (without earthing)
- 3
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 65 kA
- Max. continuous voltage AC
- 440 V
- Voltage protection level L-N
- 2 kV
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated backup fuse
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 8435297855361
- SAP 1200780484
- Code 83939708
Product Documentation
Document preview: Surge protection device PSC3-12,5/440IT LCF IR (CP77738332) — Specification sheet
