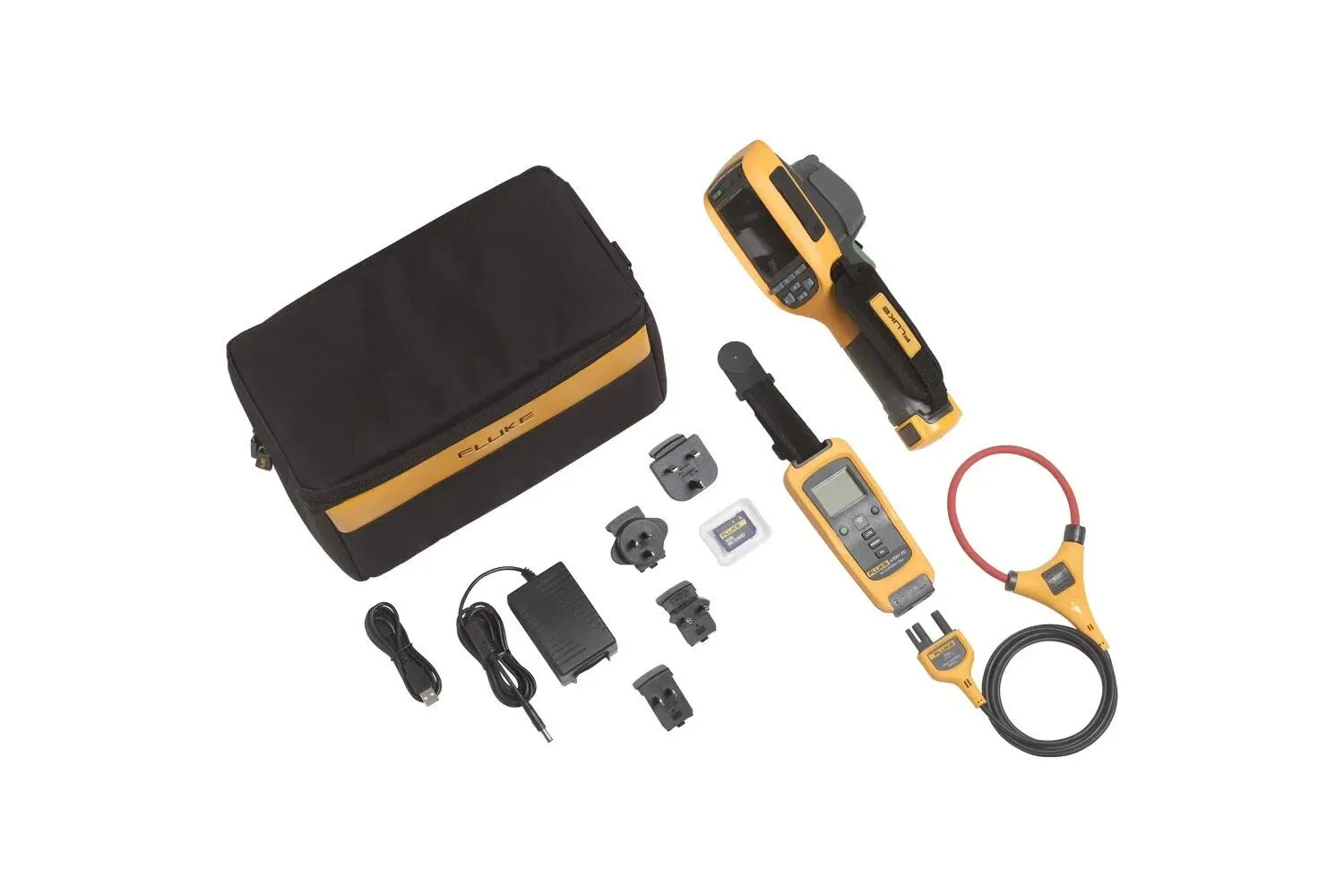

TI95 Fluke Connect FCC Kit

The Ti95 Fluke Connect FCC Kit is a great solution for quick and efficient inspections.

Manufacturer part number (MPN)

4475235 Brand: Fluke Category: Tools IFOV (spatial resolution): 5.6 mRad Resolution: 80 x 80 (6,400 pixels) Field of view: 26° H x 26° V Wireless connectivity: Yes Fluke Connect™ app compatible: Yes, with included wireless SD card (where available) IR-Fusion® technology: PIP (46 cm (18 in) and beyond) Focus system: Fixed focus 46 cm (18 in) and beyond Ruggedized display: 3.5 inch diagonal (portrait format) Rugged, ergonomic design for one-handed use: Yes Thermal sensitivity (NETD): ≤ 0.10°C at 30°C target temp (100 mK) Temperature measurement range (not calibrated below -10°C): -20°C to +250°C (-4°F to +482°F) Level and span: Smooth auto and manual scaling Fast auto toggle between manual and auto modes: Yes Fast auto-rescale in manual mode: Yes minimum span (in manual mode): 2.5°C minimum span (in auto mode): 5°C Built-in digital camera (visible light): 2 megapixel industrial performance Frame rate: 9 Hz only Extensive SD memory system: Removable 8 GB SD memory card and 8 GB wireless SD card (where available) Image capture, review, save mechanism: One-handed image capture, review, and save capability File formats image: Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) Memory review: Thumbnail view navigation and review selection Software: SmartView® software, Fluke Connect™, and SmartView® Mobile app - full analysis and reporting software Export file formats with SmartView® software: BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF Batteries (field-replaceable, rechargeable): One lithium ion smart battery pack with five-segment LED display to show charge level Battery life: Four+ hours continuous use per battery pack (assumes 50% brightness of LCD and average usage) Battery charge time: 2.5 hours to full charge AC battery charging system: In-imager charging. AC mains adapters included in 9 Hz versions. Optional two-bay AC battery charger (110 VAC to 220 VAC, 50/60 Hz) or optional 12 V automotive charging adapter. AC operation: AC operation with included power supply (110 VAC to 220 VAC, 50/60 Hz). AC mains adapters included. Power saving: User selectable sleep and power off modes Accuracy: ±2°C or 2% (at 25°C nominal, whichever is greater) On-screen emissivity correction: Yes (both number and table) On-screen reflected background temperature compensation: Yes Standard palettes: 6: Ironbow, blue-red, high-contrast, amber, hot metal, grayscale Infrared spectral band: 9 μm to 15 μm (long wave) Operating temperature: -10°C to +50°C (14°F to 122°F) Storage temperature: -20°C to +50°C (-4°F to 122°F) Relative humidity: 10% to 95%, non-condensing Center-point temperature measurement: Yes Spot markers: Hot and cold spot markers Center box (MIN-MAX-AVG): Fixed-size measurement box with MIN-MAX-AVG temp Safety standards: CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 Electromagnetic compatibility: EN 61326-1:2006 IEC 61326-1:2005 C Tick: IEC/EN 61326-1 US FCC: EN61326-1; FCC Part 5 Vibration: 2G, IEC 68-2-6 Shock: 25G, IEC 68-2-29 Drop: Engineered to withstand 2 meter (6.5 feet) drop Size (H x W x L): 28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in) Weight (battery included): 0.726 kg (1.6 lb) Enclosure rating: IP54 (protected against dust, limited ingress; protection against water spray from all directions) Warranty: Two-years (standard), extended warranties are available Recommended calibration cycle: Two-years (assumes normal operation and normal aging) Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish Range: 0.5 A to 2500 A AC Crest factor (50 Hz / 60 Hz): 3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A add 2% for C.F. > 2 LCD w/ backlight: 3½ digits Log rate/interval: 1 sec minimum/adjustable by PC or front panel Battery type: 2 AA, NEDA 15 A, IEC LR6 Memory: Record up to 65,000 readings RF communications: 2.4 GHZ ISM Band RF communication range Open air, unobstructed: Up to 20 m RF communication range Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m Temperature coefficient: Add 0.1 x (specified accuracy) / °C ( 28°C) Operating humidity: 90% at 35°C 75% at 40°C 45% at 50°C Altitude Operating: 2,000 m Altitude Storage: 12,000 m EMC: EN 61326-1:2006 Safety compliance: IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition Safety rating: CAT IV 600 V, CAT III 1000 V Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE Ingress Protection (IP) rating: IP42 Pollution Degree: 2 Jaw opening: 25.4 cm (10 in) coil Size (H x W x D): 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in) Weight: .22 kg (8 oz)

• OEM-URL https://www.fluke.com/en-us/product/thermal-cameras/ti95-fc-fcc-kit
