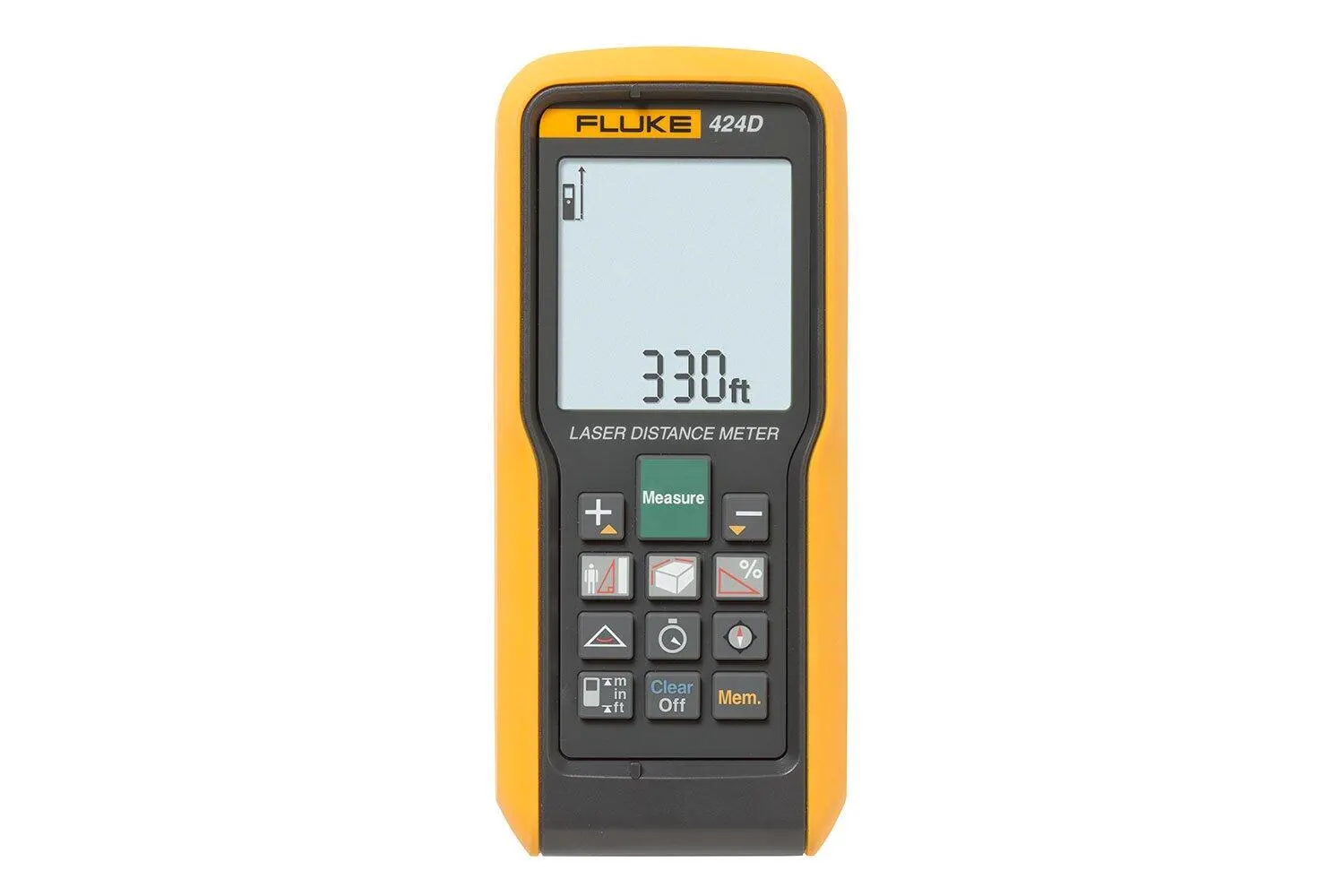

Fluke 424D Laser Distance Meter

The Fluke 424D Laser Distance Meter - measures up to 100 m (330 feet). Includes tilt sensor for hard-to-reach measurements, corner angle feature and compass.

Manufacturer part number (MPN)

4106866

Brand

Fluke

Category

Tools

Typical measuring tolerance 1

±1.0 mm 3

Maximum measuring tolerance 2

±2.0 mm 3

Range At Leica Target Plate GZM26

100 m / 330 ft

Typical range 1

80 m / 260 ft

Range at unfavorable condition 4

60 m / 195 ft

Smallest unit displayed

6 / 30 / 60 mm (10 / 50 / 100 m)

Ø Laser point at distances

6 / 30 / 60 mm (10 / 50 / 100 m)

Measuring tolerance to laser beam 5

±0.2°

Measuring tolerance to housing 5

±0.2°

Range

360°

Laser cass

2

Laser type

635 nm, < 1 mW

Protection class

IP54

Automatic laser off

After 90 seconds

Automatic power off

After 180 seconds

Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03

Up to 5,000 measurements

Size (L x W x D)

127 x 56 x 33 mm

Weight (with batteries)

158 g

Temperature range Storage operation

-25°C to +70°C (-13°F to +158°F)

Calibration cycle

Tilt and compass

Maximum altitude

3000 m

Maximum relative humidity

85% at 20°F to 120°F (-7°C to 50°C)

Safety

IEC Standard No. 61010-1:2001

EMC

EN 55022:2010

HS Code

9015.10
