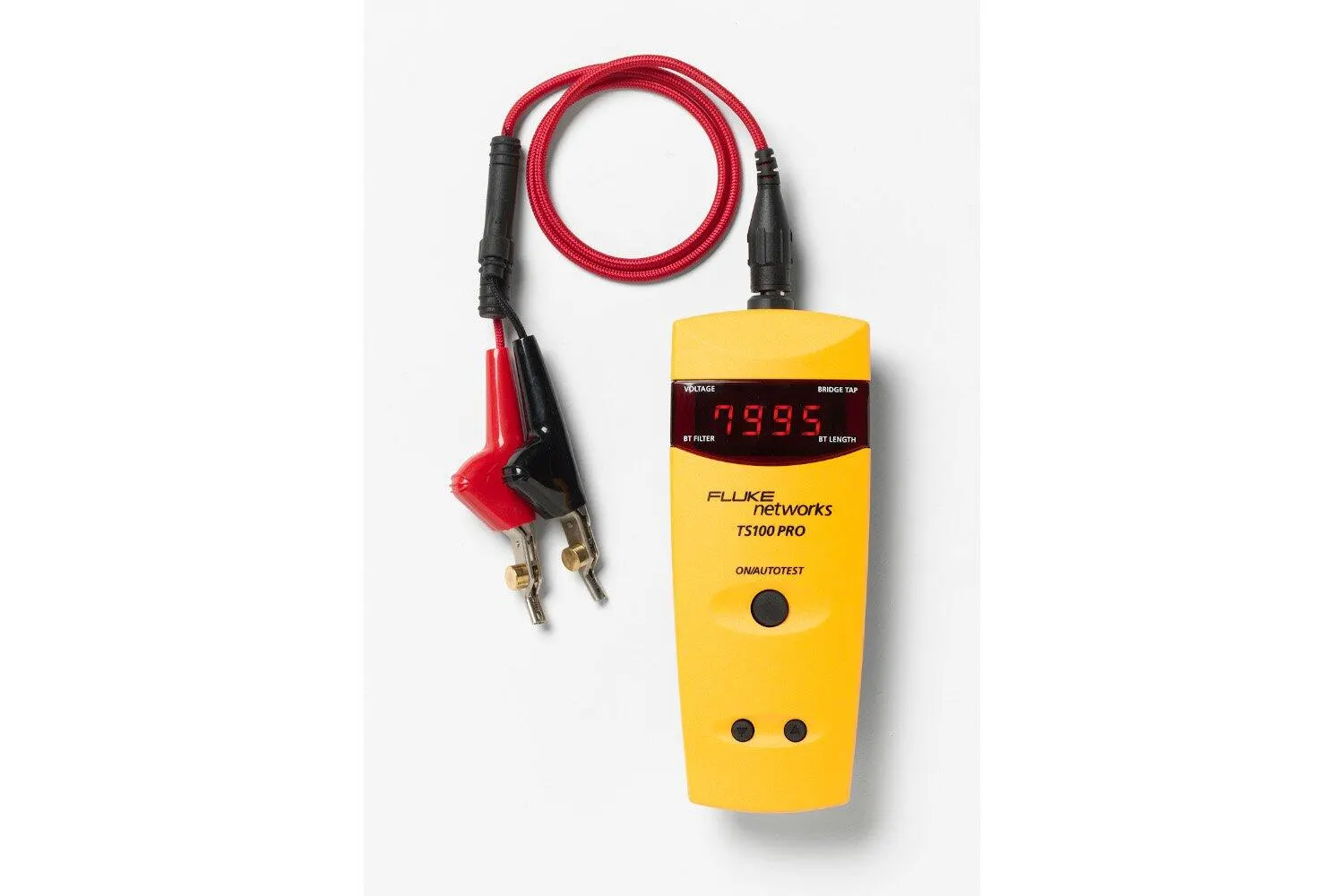

Fluke Networks TS100-PRO-BT-TDR Cable Fault Finder with Bridge Tap Detect

Buy genuine Fluke Networks Cable Fault Finder with PowerBT™ Bridge Tap Detect for open/short circuit detection—to 8,000 feet (2.4 km).

Manufacturer part number (MPN)

3846346 Brand: Fluke Category: Tools Maximum Length: 8,000 feet (2,438 meters) on certain cable types, 4,000 feet (1,220 meters) on most cable types, and 500 feet (152 meters) on cables with high loss. The tester shows -Err if the cable is too long to be correctly measured. Representative Maximum Cable Length: 8,000 feet (2,438 meters): CAT-3 Twisted Pair 8,000 feet (2,438 meters): CAT-5 Twisted Pair 6,000 feet (1,830 meters): 12/2 AC Wire 3,000 feet (900 meters): RG-6/U TV Coax 1,500 feet (457 meters): RG-174/U Coax minimum Length: No minimum length (can read a bridge tap at 0 feet/meters). minimum non-zero reading is 2 feet or 1 meter. Length Accuracy: "±2 feet (±0.6 m) for cables less than 10 feet (3 m) ±5 feet (±2 m) for cables longer than 10 feet (3 m) and shorter than 200 feet (60 m) +/-3%+/-5 feet (±2 m) for cables longer than 200 feet (60 m)" Distance to Bridge Tap: 0 feet to 3,200 feet (975 meters) minimum Length of Bridge Tap: 10% of the distance to the bridge tap. Dependent on the cable characteristics. Measurement Rate: Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity. VOP: Adjustable from 20 to 99, saved in flash memory. Test Technology: Time Domain Reflectometry (TDR) with 100 Ω drive impedance, 6v maximum pulse height. Cable Type: Virtually all two or more conductor cables. Power: 4 AA alkaline batteries. Reverse Battery Protection: No damage to the tester will occur if the batteries are installed backwards. Battery Life: 35 hours (typical) Low Battery Indication: LED display alternates between LO and bAtt when the battery voltage falls below 4.5v. Maximum Output Voltage: 4 voltage peak Maximum Isolation Voltage: 250 volts RMS Voltage Measurements: Range: 0 volts AC to 115 volts AC; 0 volts DC to ±150 volts DC Accuracy: AC: +/-1%+/-2 volts (45 Hz to 65 Hz); DC: +/-1%+/-2 volts DC High Voltage Detection: AC voltage detected to 115 volts; DC voltage detected to ±150 volts. AC voltage ≥90 volts or DC voltage ≥100 volts causes high voltage warnings to show on the display SmartTone® (5-tones) Range: 7,000 feet (2,134 meters) Toner Range: 52,800 feet (16,093 meters) Tone Injection: Approximately 1 kHz at an amplitude of 80% of battery voltage. Variable frequency and cadence. Tone characteristics change as cable condition changes to “normal-open” from any other condition. Impedance Range: 35 Ω to 330 Ω with auto-compensation within this range. Cables with impedances outside this range will not be properly tested and may produce erratic or incorrect readings. Temperature Range: Operating: 32°F to 104°F (0°C to 40°C) Storage: 32°F to 131°F (0°C to 55°C) Humidity: Operating: 20% to 80% relative humidity Storage: 0% to 100% relative humidity Operating Humidity: 80% maximum at 86°F (30°C ) 50% maximum at 104°F (40°C ) Operating Altitude: 9,843 ft max (3,000 m max) Weight: 1 lb (454 grams) Dimensions: 7.4 in x 2.7 in x 1.4 in (18.8 cm x 6.9 cm x 3.6 cm) Safety: IEC 61010-1:2010; N10140 EMC: IEC/EN61326-1:2006 Certifications and Compliance: Conforms to relevant European Union directives Conforms to relevant Australian standards IEC/EN61010-1 CAN/CSA-C22.2 No. 1010.1-92 + CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1

• OEM-URL https://www.fluke.com/en-us/product/network-cable-testers/copper/ts100-pro-bt-tdr
