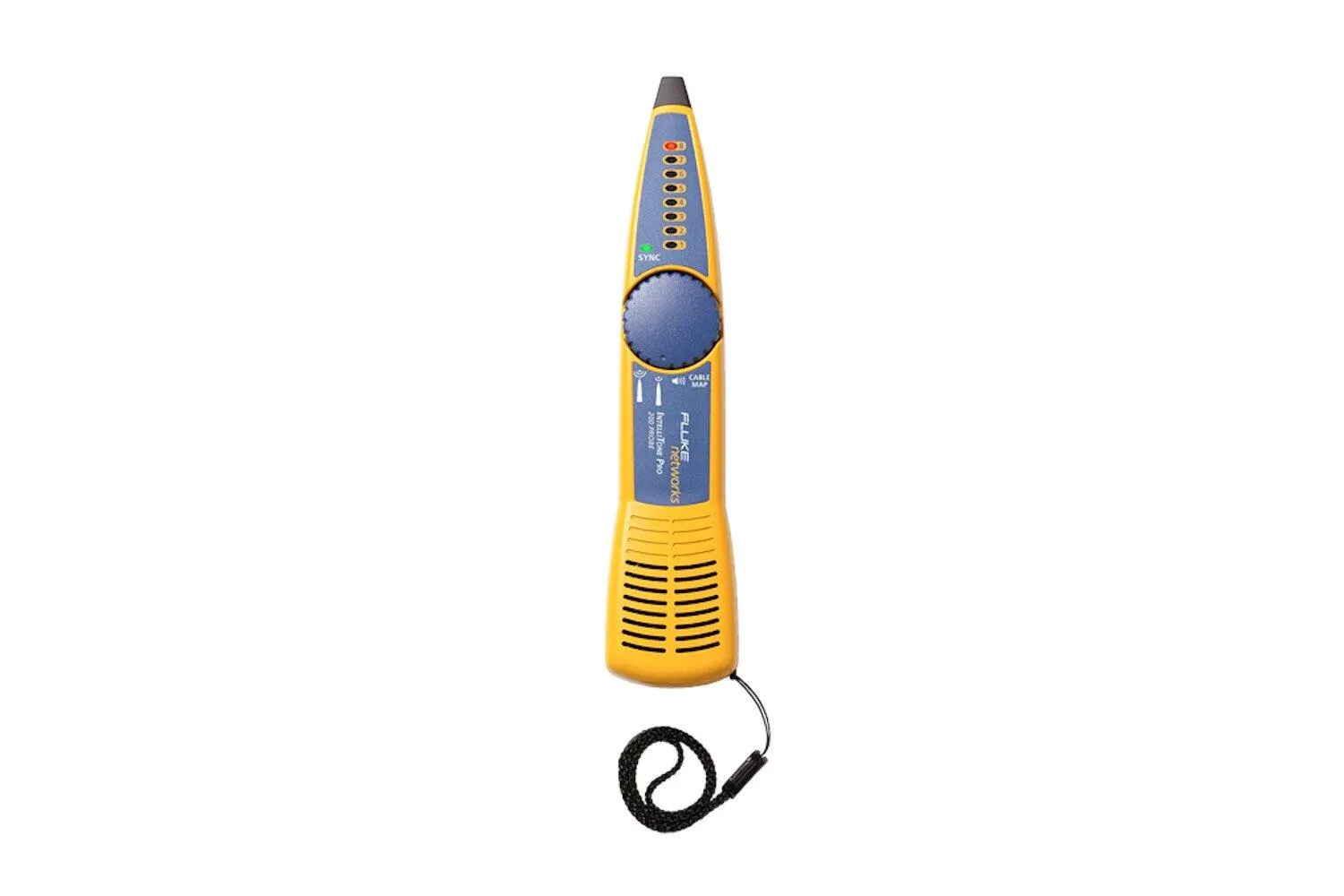

Fluke Networks MT-8200-63A IntelliTone™ Pro 200 Probe

Fluke Networks MT-8200-63A probe detects IntelliTone™ digital signals on active networks and 500 to 1,200 Hz analog signals on inactive networks to locate, trace, and isolate copper cabling.

Manufacturer part number (MPN)

2084131

Brand

Fluke

Category

Tools

Operating temperature

32 °F to 104 °F (0 °C to 40 °C)

Storage temperature

-4 °F to +140°F (-20 °C to °C)

Operating relative humidity (% RH without condensation)

95 % (50 °F to 95 °F; 10 °C to 35 °C) 75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C)

Vibration

Random, 2 g, 5 Hz-500 Hz

Shock

1 m drop test

Safety

EN 61010-1, Category: None

Altitude

3000 m

EMC

EN 61326-1, FCC Part 15 B

Battery type and life

9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical

Applications

Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.

Dimensions

8.73 x 1.88 x 1.26 in (22.2 x 4.8 x 3.2 cm)

Display

(8) LED indicators, Sync LED indicator

Audio

IntelliTone: Microprocessor controlled audio files Analog: Detected toner signal

Control

Thumbwheel switch, volume control wheel

Tone detection

Detects IntelliTone™ digital signal for Locate, Isolate, and Cable Map Detects analog SmartTone signal (500-1200Hz) and other analog toners.

Toner interface

Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling.

Auto power down

Turns off automatically after 1 hour of inactivity
