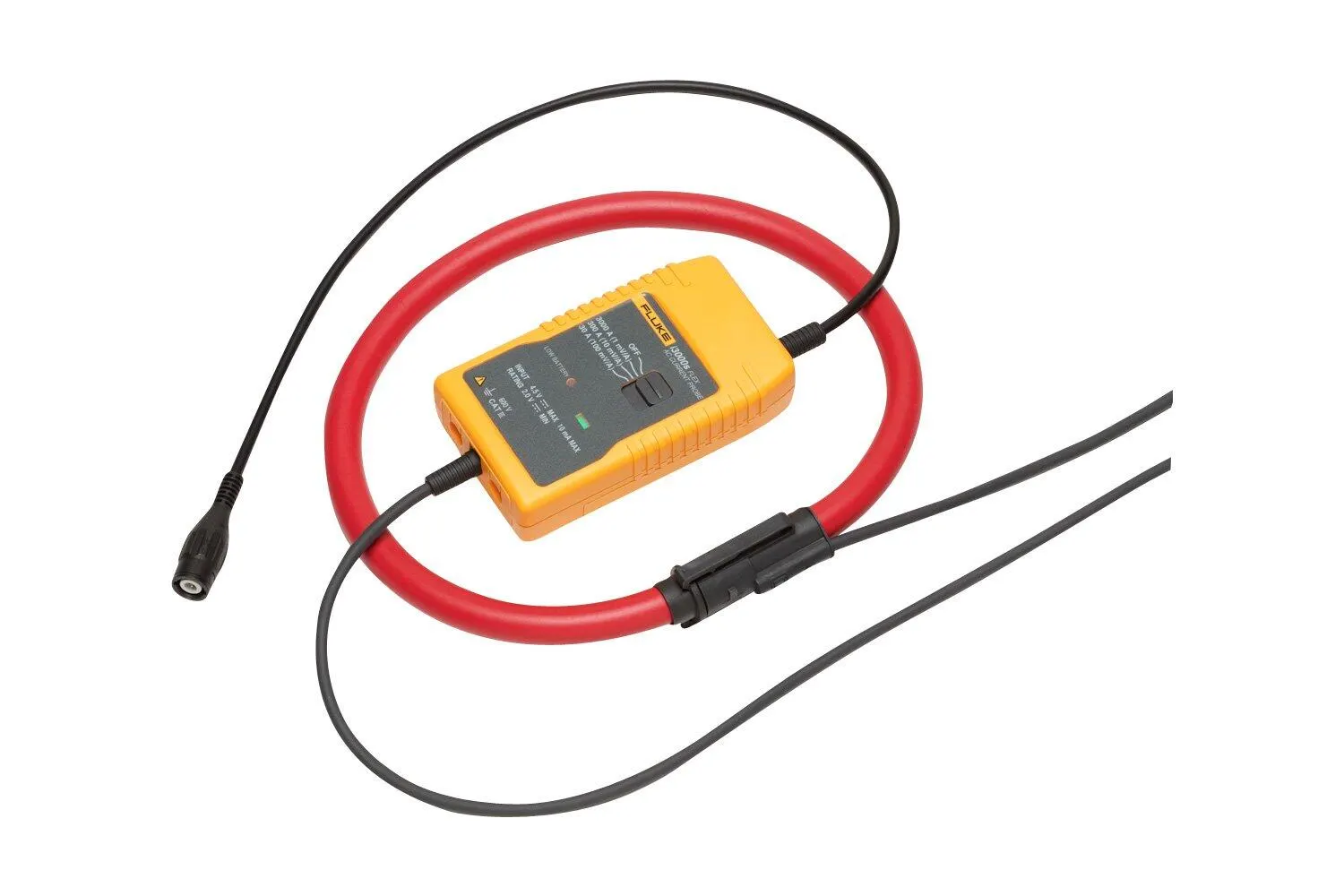

Fluke I3000S FLEX-36 AC Current Clamp, 915 mm (36 in.)

The i3000s Flex is an ac current clamp utilizing the Rogowski principle. It can be used to measure currents up to 3000 A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.

Manufacturer part number (MPN)

2584901 Brand: Fluke Category: Tools Current ranges: 30 A Output sensitivity (AC-coupled): 100 mV Load impedance: 100 kΩ minimum Accuracy: at +25°C: ±1% of range (45 Hz to 65 Hz) Linearity: 10% to 100% of range: ±0.2% of reading Noise: 8 mV AC rms (30 A) Frequency range: 10 Hz to 50 kHz (-3 dB) Phase error: < ±1° (45 Hz to 65 Hz) Position sensitivity (with cable > 25 mm from the coupling): Position sensitivity: From 1% up to 3% of range with cable, depending on distance from the center (see figure left). Measurements closer than 25 mm from the coupling are typically greater than 3% of range. External wire influence: 1% (-40 db) of external current >200 mm from head. External field: with cable > 200 mm from the head: ±1% of range Power supply: 2 x AA/MN 1500/LR6 Alkaline, 400 hours, low battery indicator Temperature coefficient: ±0.08% of reading per °C Working voltage: see Safety standards section: 600 V AC rms or DC Head circumference: 915 mm (36 in.) Head cable diameter: 14.3 mm (0.56 in) Head bend radius: 38.1 mm (1.5 in) Cable length (head to electronics): 2 m (6.56 ft) Output connection: 0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter Operating temperature range: -20°C to +90°C (-4°F to 190°F) (head) Storage temperature range: -40°C to +105°C (-40°F to 221°F) (head) Operating humidity: 15% to 85% (non-condensing) Weight: 180 g (0.396 lb) (head) Safety standards: BS EN 61010-1: 2001 EMC standards: EN 61326: 1998 +A1, A2, and A3 Head cable length (double insulated): 610 mm or 914 mm, depending on model

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/accessories/current-clamps/fluke-i3000s-flex-36
