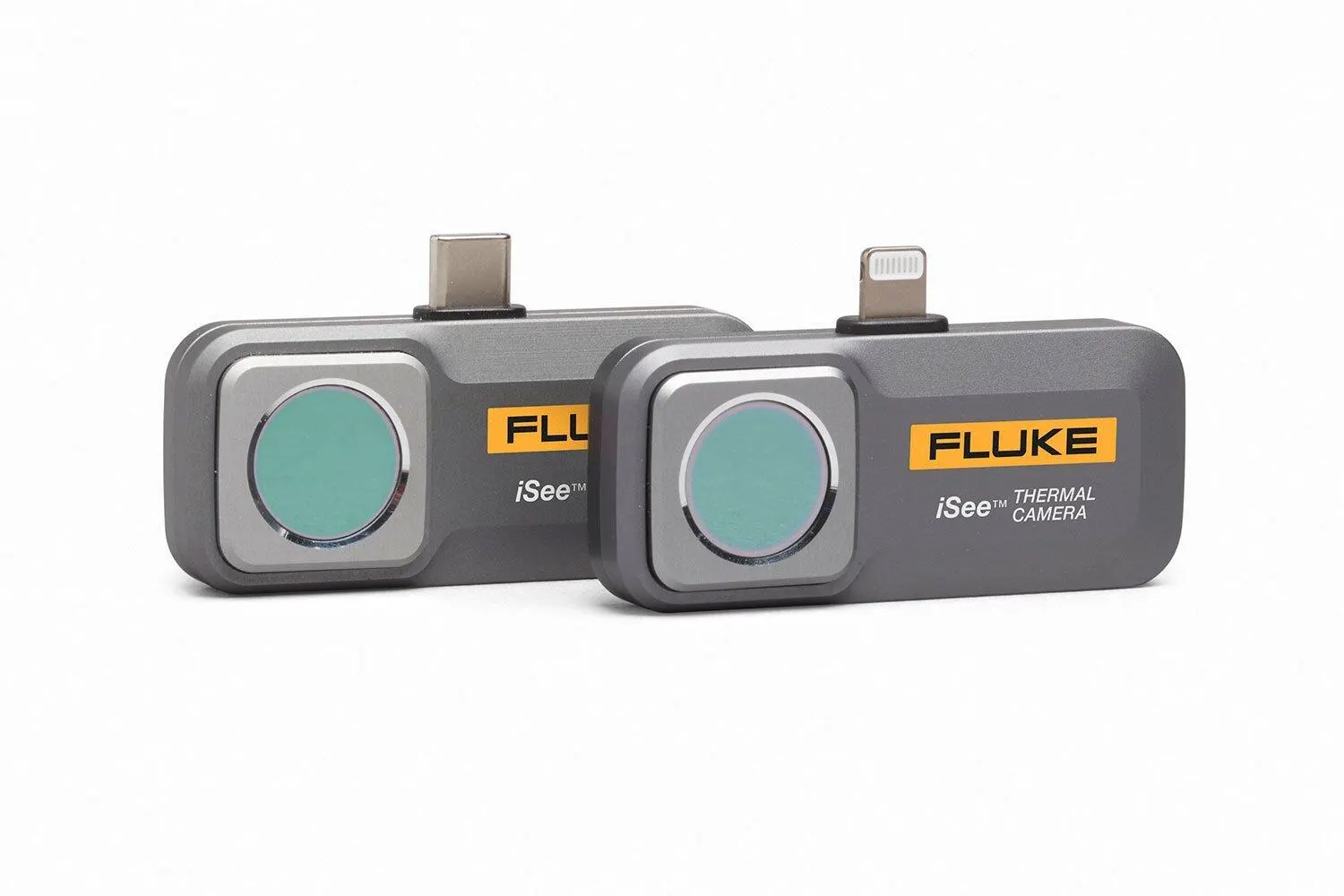

Fluke iSee™ Mobile Thermal Camera - TC01A/TC01B/TC01C

The Fluke iSee Mobile Thermal Camera TC01A/TC01B/TC01C transforms your mobile iPhone or Android into a powerful thermal imaging device for detecting heat patterns.

Manufacturer part number (MPN)

5518338

Brand

Fluke

Category

Tools

TC01A

TC01B

IR resolution

256 x 192

Pixel size

12 μm

Temperature range -10 °C to 550 °C/14 °F to 1022 °F

-20 °C to 550 °C/-4 °F to 1022 °F

Temperature accuracy

± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater(@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature)

Temperature measurement distance

0.25 m to 5 m(* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m)

Frame rate

25 Hz

Warm-up time

1 minute

Focal length

Fixed focal length: 3.2 mm

Shutter mode

Internal

Thermal sensitivity (NETD)

50 mK

Spectral range

8 to 14 μm

Field of view (H x V)

56° x 42°

Spatial resolution

3.81 mrad

USB interface Type-C

Lightning

Compatible system Android and HarmonyOS

iOS

Operating temperature

0 ℃ to 40 ℃/32 °F to 104 °F

Storage temperature

-30 ℃ to 60 ℃/–22 °F to 140 °F

Operating humidity

10 % to 90 % RH, non-condensing

Power consumption 350 mW (Typical)

200 mW (Typical)

Drop test

1 m/3.3 ft

Operating altitude

2 000 m/6 562 ft

Storage altitude

12 000 m/39 370 ft

Dimensions (L x W x H)

60 x 33.5 x 11.2 mm/2.36 x 1.32 x 0.44 in

Warranty

2 years
