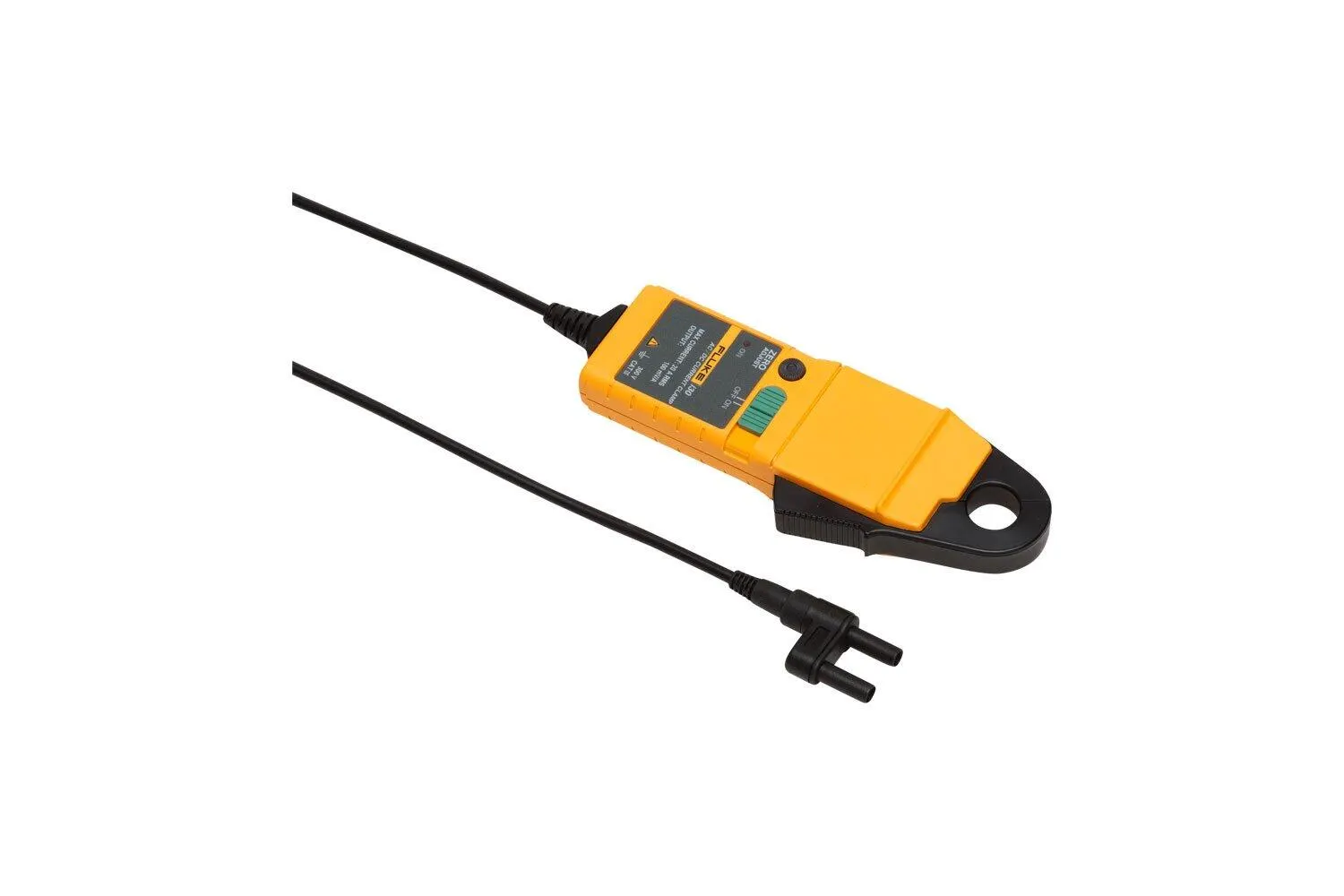

Fluke I30 AC/DC Current Clamp

The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.

Manufacturer part number (MPN)

2584920

Brand

Fluke

Category

Tools

Specified current range

30 mA to 30 A DC, 30 mA to 20 A AC rms

Usable current range

5 mA to 30 A DC, 30 mA to 20 A AC rms

Crest Factor

1.4 in

Output sensitivity

100 mV/A

Accuracy (at +25°C)

DC ±1 % of reading ±2 mA AC ± 0.5 dB of reading ±2 mA

Resolution

±1 mA

Load impedance

> 10 k Ohms and ≤ 100pF

Conductor position sensitivity

±1% relative to center reading

Frequency range

DC to 20 kHz (-0.5 dB)

Temperature coefficient

±0.01% of reading/°C

Power supply

9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator

Working voltage (see Safety Standards section)

300 V AC rms or DC

Maximum conductor size

19 mm diameter

Output connection

4 mm safety connector

Output zero

Manual adjust via thumbwheel

Cable length

1.5 meters

Operating temperature range

0°C to +50°C

Storage temperature range (with battery removed)

-20°C to +85°C

Operating humidity

15% to 85% (non-condensing)

Weight

250 g

Safety

IEC 61010-1, Pollution Degree 2

EMC Compatibility

IEC 61326-1: Portable Electromagnetic Environment

HS Code

9030.33
