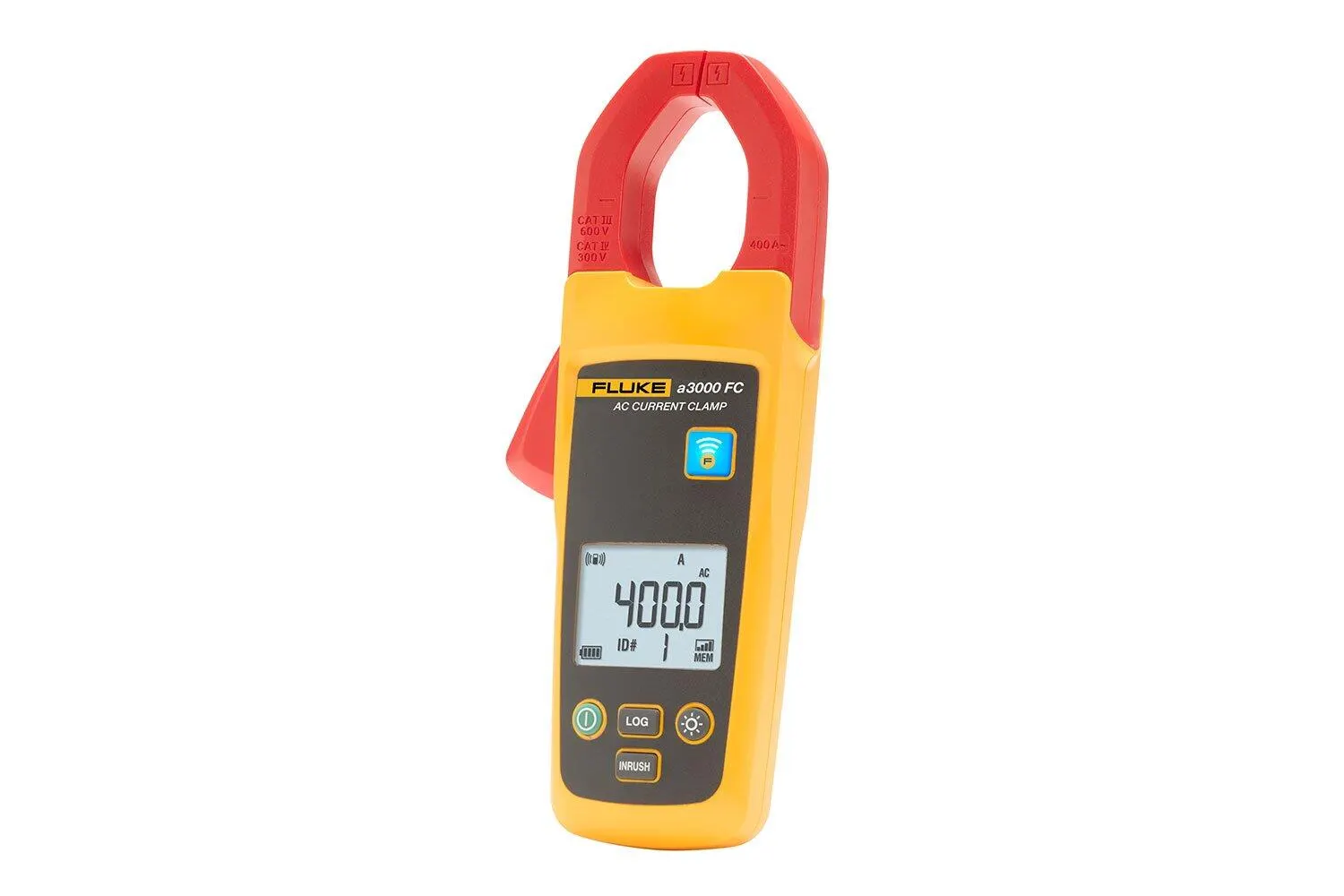

Fluke A3000 FC Wireless AC Current Clamp Module

A fully functional true-rms current clamp meter that wirelessly relays measurements to other Fluke Connect® enabled master units

Manufacturer part number (MPN)

4401588 Brand: Fluke Category: Tools Range: 0.5 A to 400.0 A Resolution: 0.1 A Accuracy: 400.0 A: 2% ± 5 digits (10 Hz to 100 Hz), 2.5% ± 5 digits (100 Hz to 500 Hz) Inrush Max displayed reading: 999.9A Crest factor (50 Hz/60 Hz): 3 at 500 A 2.5 at 600 A 1.42 at 1000 A Add 2 % for C.F. > 2 LCD w/backlight: 3½ digits Log rate/interval: 1 sec minimum/adjustable by PC Battery type: 2 AA, NEDA 15 A, IEC LR6 Battery life: 400 hours Memory: Record up to 65,000 readings RF communications: 2.4 GHZ ISM Band RF communication range Open air, unobstructed: Up to 20 m RF communication range Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Temperature coefficient: Add 0.1 x (specified accuracy) / °C ( 28°C) Operating humidity: 90% at 35°C 75% at 40°C 45% at 50°C Altitude Operating: 2,000 m Altitude Storage: 12,000 m EMC: EN 61326-1:2006 Safety compliance: IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2 Safety rating: CAT III 600 V Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE Ingress Protection (IP) rating: IP30 Pollution Degree: 2 Jaw opening: 34 mm (1.33 in) Size (HxWxD): 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in) Weight: .22 kg (8 oz) Warranty: Three years

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/clamp-meters/fluke-a3000-fc
