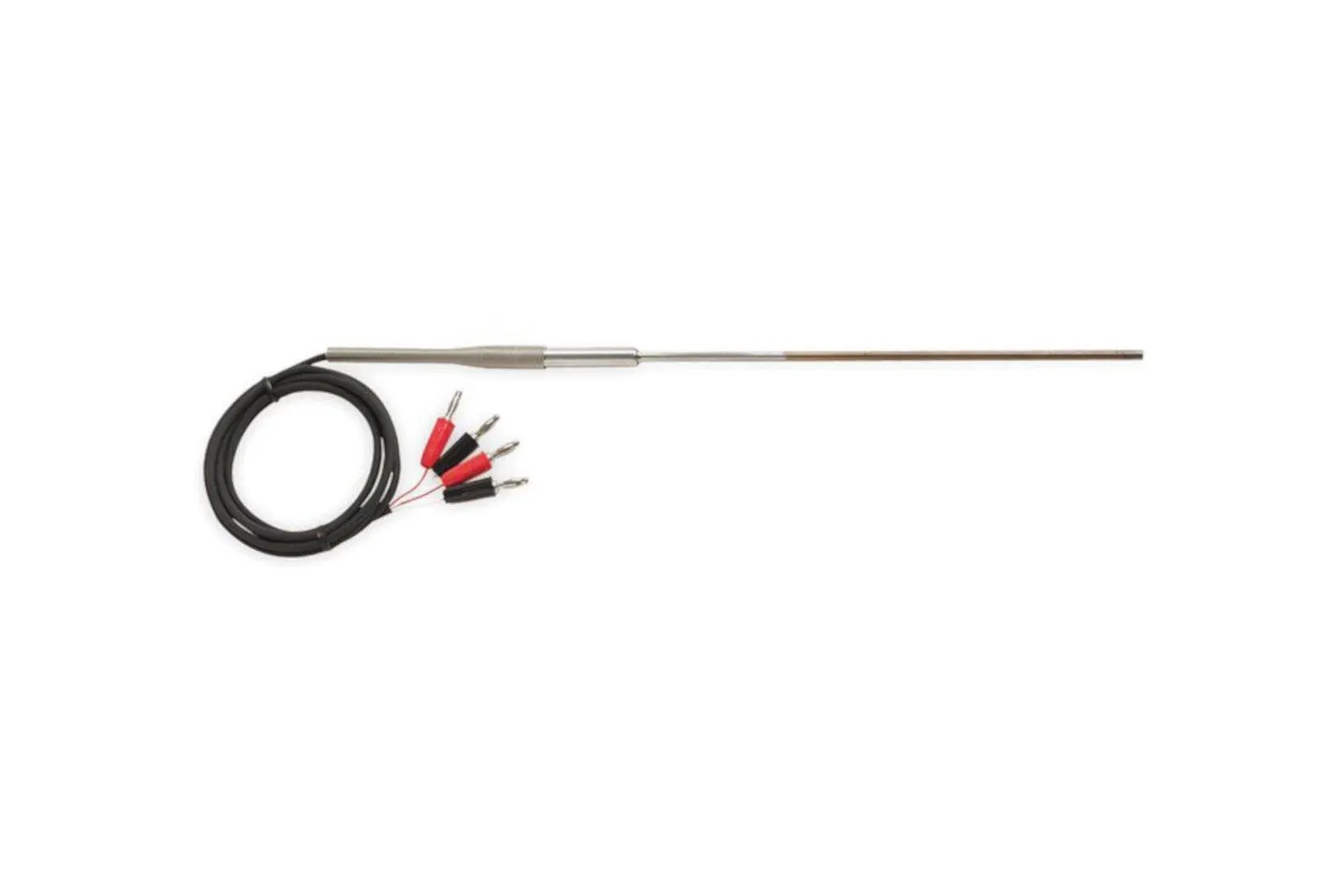

Fluke 884X-RTD 100 Ohm RTD Temperature Probe

Fluke 2675468 — professional-grade tool.

Manufacturer part number (MPN)

2675468

Brand

Fluke

Category

Tools

Resistance

Nominal 100 Ω

Temperature coefficient

0.00385 Ω/Ω ºC nominal

Temperature range

-200 C to 300 ºC (transition and cable temperature: 0 ºC to 25% ºC)

Drift rate

+ 0.13 ºC at 0 ºC after 1000 hours at 300 ºC

Sheath Material

316 stainless steel

Leads

PTFE-insulated, nickel-plated stranded copper, 22 AWG

Termination

4-wire banana

Time constant

Four seconds maximum for 63.2% response to step change in water moving at 3 fps

Bending radius

19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip

Calibration

Includes manufacturer’s NIST-traceable calibration and table with R vs. T values in 1 ºC increments from -196 ºC to 300 ºC. Callendar-van Dusen coefficients included

Immersion

At least 100 mm (4 in) recommended

Size

9 in L x 3/16 in diameter

Marking

Each RTD is marked with the Fluke name and part number

• OEM-URL https://www.fluke.com/en-us/product/accessories/temperature/884x-rtd-100-ohm-rtd-temperature-probe
