Amprobe AT-6010 Advanced Wire Tracer Kit

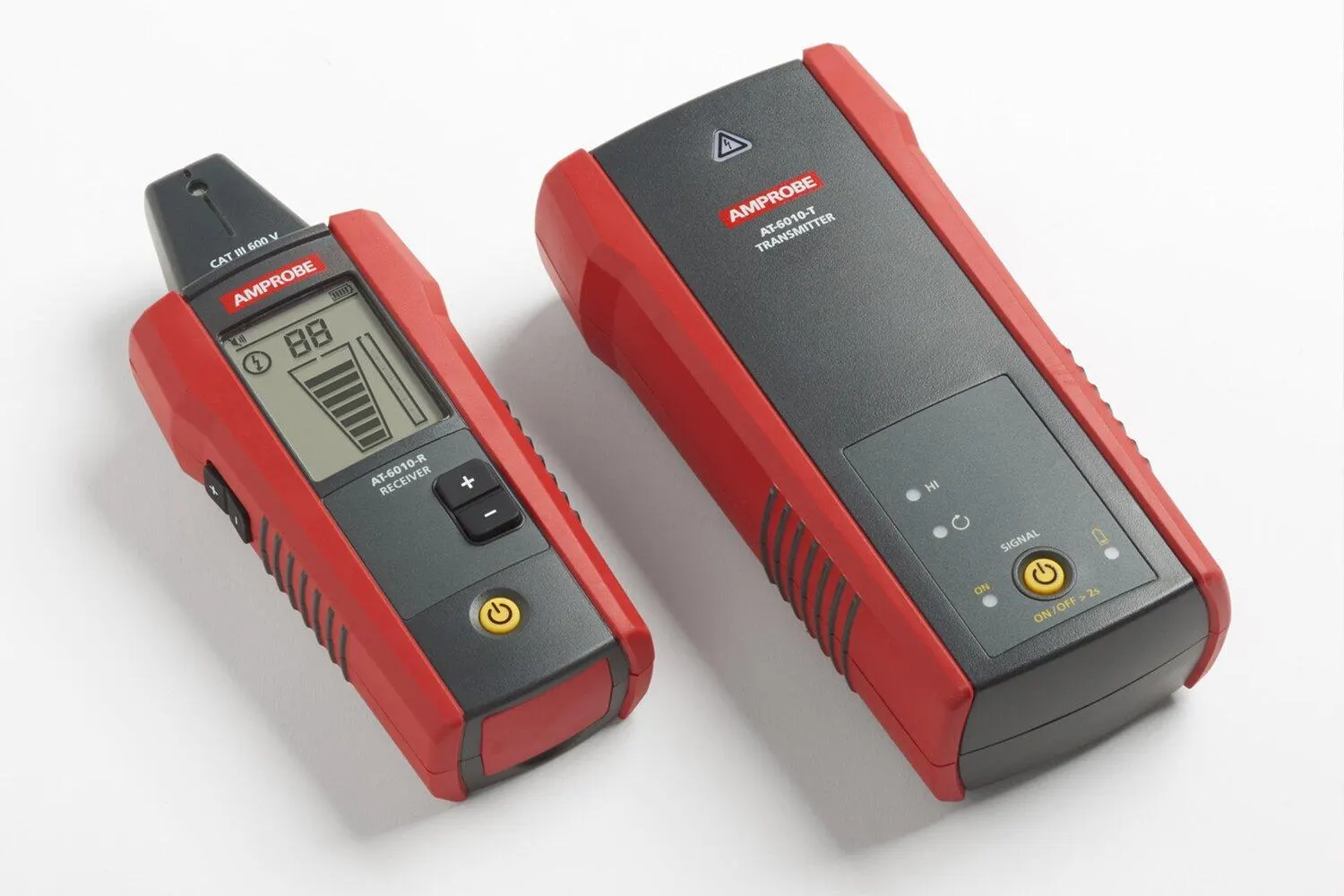

The Amprobe AT-6010 Advanced Electrical Wire Tracer Kit comes with custom Amprobe soft carrying case, test leads and accessories.

Manufacturer part number (MPN)

5044625

Brand

Fluke

Category

Tools

Features AT-6010-R Receiver

AT-6010-T Transmitter

Measurement category

CAT III 600 V

Operating voltage/current

0 to 600 V

Operating frequency

Energized: 6.25 kHz

Hazardous voltage detection N/A

> 30 V AC/DC

Numeric bar graph display and audible beep

LEDs

Current output of signal (typical) N/A

Energized circuit: HI mode: 60 mA RMS De-energized circuit: HI mode: 130 mA RMS Loop mode: 160 mA RMS

Signal voltage output (nominal) N/A

De-energized circuit: HIGH: 33 V RMS, 140 Vp-p With CT-400: Loop model: 31 V RMS, 120 Vp-p

Display type Segment LCD

LEDs

Display color Black and white

Operating mode LEDs: red Battery status LED: red

Booting time < 3 sec

< 2 sec

Operating temperature

-4 °F to 122 °F (-20 °C to 50 °C)

Operating humidity

45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C)

Storage temperature and humidity

-4 °F to 158 °F (-20 °C to 70 °C), <95% RH

Operating altitude

0 to 6561 ft (2000 m)

Transient protection N/A

6.00 kV (1.2/50μS surge)

Pollution degree

2

IP rating IP 52

IP 40

Drop test

3.28 ft (1 m)

Power consumption (typical) 70 mA

Hi mode: 70 mA Loop mode with Clamp: 90 mA Consumption without signal transmission: 10 mA

Battery life Approx. 25 h

Hi mode: approx. 25 h Loop mode: approx. 18 h

Low battery indication

Yes

Fuse N/A

1.6 A, 700 V, fast-acting, Ø 6x32mm

Approx. 7.2 x 2.95 x 1.69 in (183 x 75 x 43 mm)

Approx. 7.2 x 3.66 x 1.97 in (183 x 93 x 50 mm)

Weight Approx. 0.6 lb (0.27 kg)

Approx. 1.25 lb (0.57 kg)

• OEM-URL https://www.fluke.com/en-us/product/building-infrastructure/wire-tracers/at-6010
