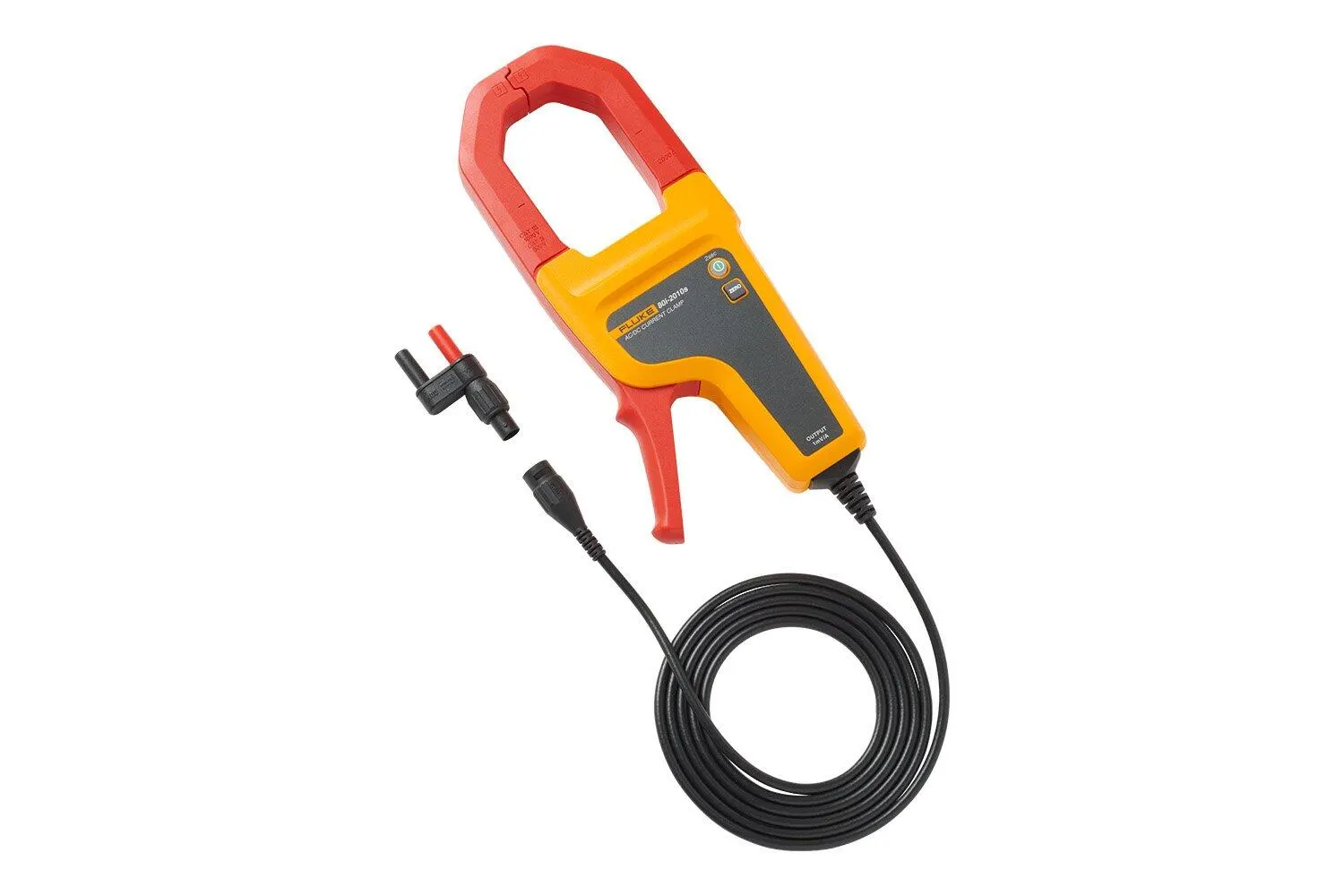

Fluke 80I-2010S AC/DC Current Clamps

The Fluke 80i-2010s AC/DC Current Clamps are used to measure up to 2,000A AC and/or DC on large conductors with 0.8% accuracy.

Manufacturer part number (MPN)

5125579

Brand

Fluke

Category

Tools

Modules

80i-2010s

Dimensions

110 mm x 270 mm x 46mm

Weight

0.710 kg (1.6 lbs), including battery

Output Cable

1.5 m (60 in) Shielded Coaxial cable with BNC plug

Maximum Conductor Size

52.0 mm (2.05 in)

Maximum Jaw Opening

81.5 mm

Output to Zero

Auto adjustment with Zero button

Temperature Operating

-10 °C to 50 °C (14 °F to 122 °F)

Storage (battery removed)

-30 °C to +60 °C (-22 °F to +140 °F)

Operating Humidity

≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C)

Operating Altitude

2,000 m (6560 ft)

Storage Altitude

12,000 m (40,000 ft)

Demagnetize Clamp

Open and close the Clamp jaws several times with soft click, use of the clamp on uninsulated conductors is limited to 1000 Vac rms or DC and frequencies 1 kHz or less.

Safety

IEC 61010-1, Pollution Degree 2, IEC 61010-2-032: CAT III 1000 V /CAT IV 600 V

Ingress Protection

IEC 60529, IP40

Power Supply Type

2 x AA alkaline battery, IEC LR6

Battery Life

150 hours (typically)

Low battery indicator

Yes

Current Range

2000 A ac rms, ± 2000 A dc

Output Sensitivity

01 mV/A

Accuracy

± 0.8 % of reading ± 0.2 % of range

Bandwidth for Accuracy Specification

DC to 400 Hz

Load impedance

>1 MΩ and <10 pF

Frequency Response (small signal)

DC to 20 kHz (-3 dB)

Temperature Coefficient

0.1 x specified accuracy for each degree C above 28 °C or below 18 °C

Working Voltage

1000 V AC RMS or DC

HS Code

9030.33
