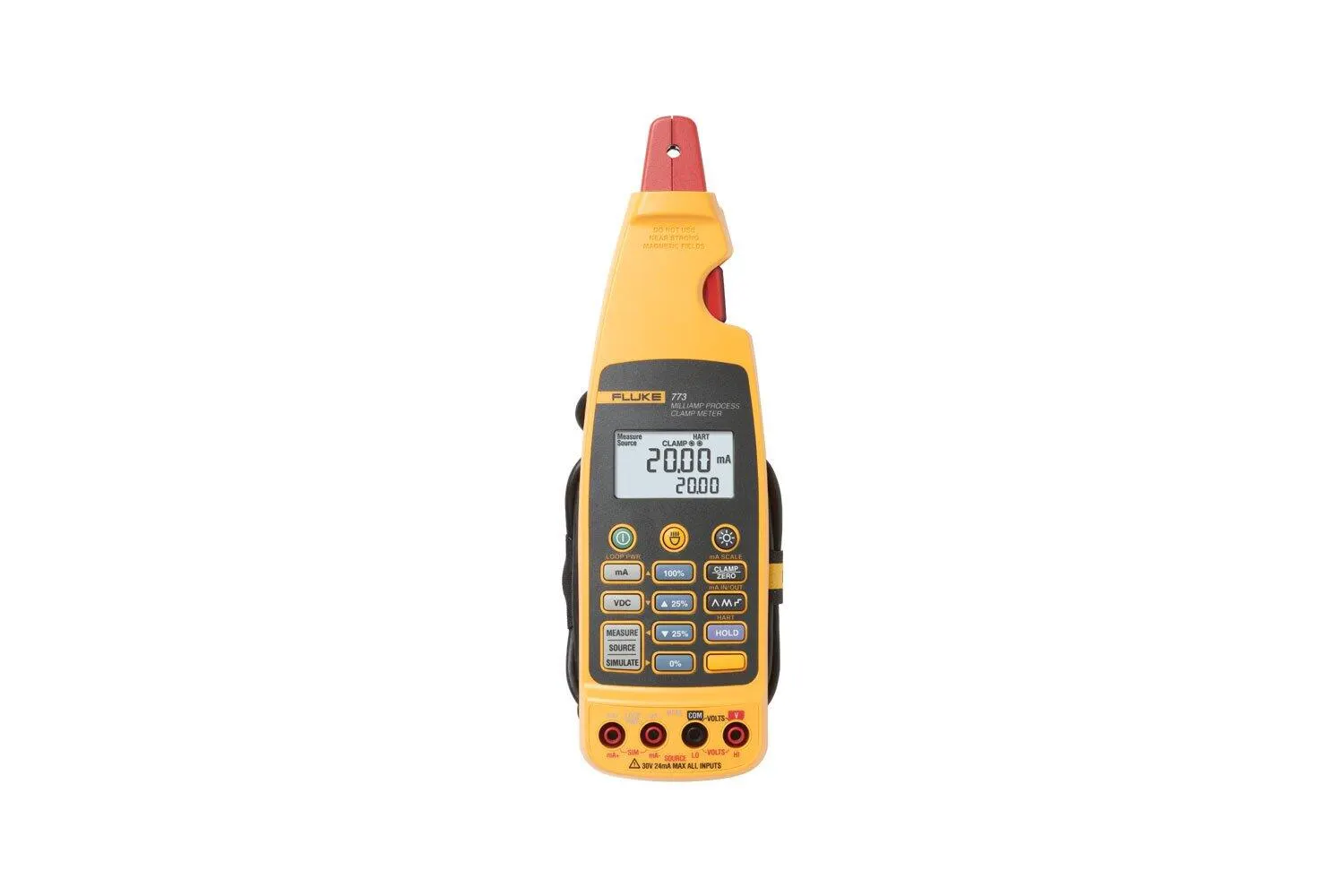

Fluke 773 Milliamp Process Clamp Meter

Eliminate wasting time & save money with Fluke 773 mA clamp meter that allows you to measure output signals without breaking the loop. Price: $1,369.99.

Manufacturer part number (MPN)

3362365

Brand

Fluke

Category

Tools

Diameter of measurable conductor

0.177" or 4.5 mm max

Operating temperature

-10 to 50ºC

Storage temperature

-25 to 60ºC

Operating humidity

< 90% @ <30ºC, < 75% @ 30 to 55ºC

Operating altitude

0 to 2000 m

IP rating

IP 40

Size

44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)

Weight

410 g, (14.4 oz)

Vibration

Random 2 g, 5 to 500 Hz

Shock

1 meter drop test (except the jaw)

EMI/RFI

Meets EN61326-1

Temperature coefficient

0.01% ºC ( 28ºC)

Power, battery life

(4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms

Warranty

Three years for electronics One year for cable and clamp assembly

mA measurement (measured by clamp) Resolution / range

0 to 20.99 mA

mA measurement (measured by clamp) Accuracy

0.2% + 5 counts

Resolution / range

0 to 24.00 mA

mA measurement (measured in series with test jacks) Accuracy

0.2% + 2 counts

mA simulate (maximum voltage 50 V dc) Resolution / range

0 to 24.00 mA

mA simulate (maximum voltage 50 V dc) Accuracy

0.2% + 2 counts

Voltage source (2 mA maximum drive current) Accuracy

0.2% + 2 counts

Voltage measure Resolution / range

0 to 30.00 V DC

Voltage measure Accuracy

0.2% + 2 counts

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/ma-loop-calibrators/fluke-773
