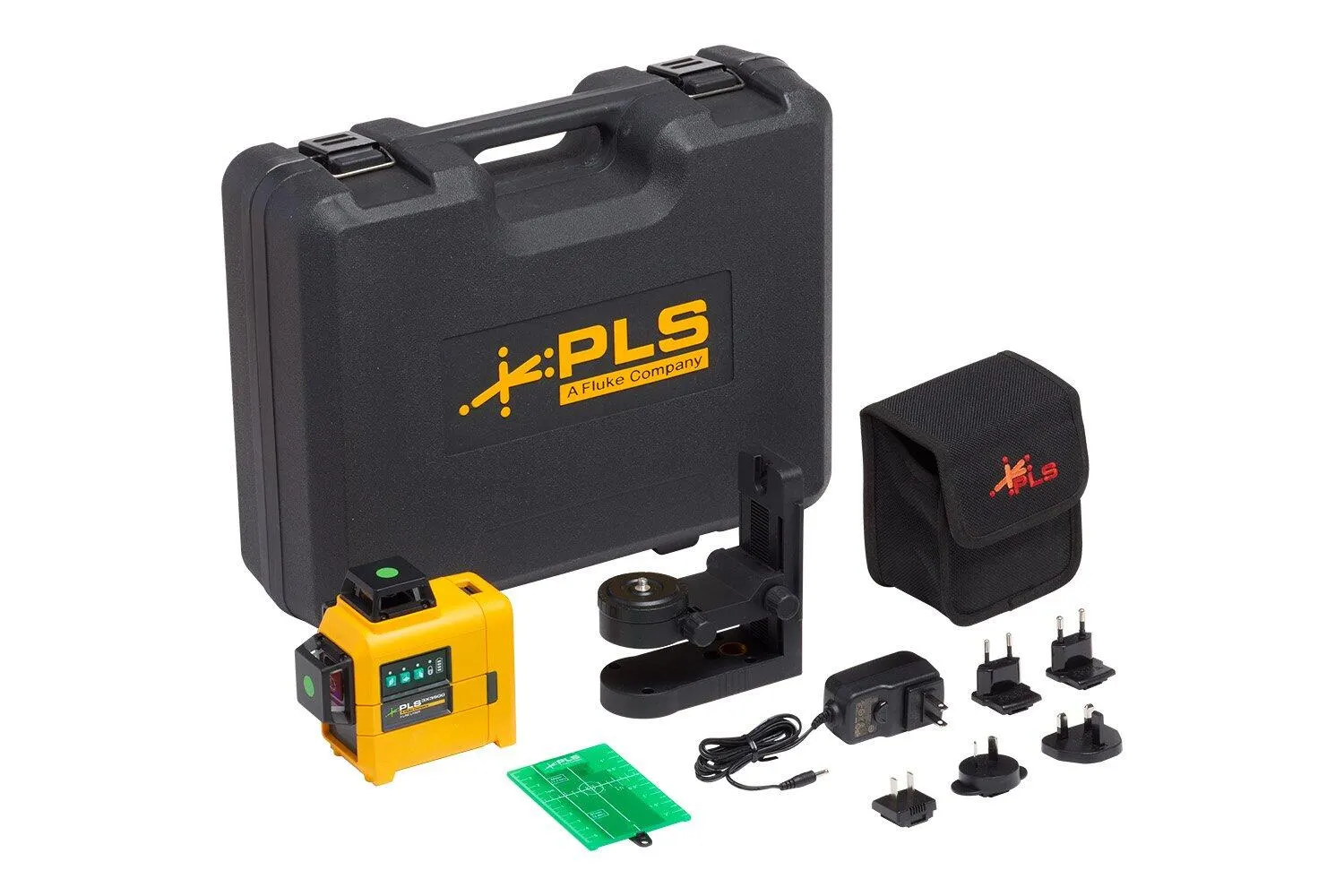

PLS 3X360G Three-plane Laser Level

"With best-in-class accuracy and a rechargeable battery pack with charging adapter and a pendulum lock for added protection during transportation. Handy accessories always included."

Manufacturer part number (MPN)

5114153

Brand

Fluke

Category

Tools

Laser Levels

PLS 3x360G

Battery

Lithium-Ion, 3.6V, 5200 mh (RBP5)

Battery Life, Continuous Use

3 beams: ≥ 5 hours; 1 beam: ≤ 17 hours

Horizontal

360°

Vertical

360°

Side Vertical

360°

Without Line Detector

35 m (115 ft.)

With Line Detector

65 m (210 ft.)

System

Automatic, Pendulum

Range

Self-leveling: ≤ 4°; Out of self-levelling: > 6°

Operating

-10 °C to 50 °C (14 °F to 122 °F)

With Batteries

-18 °C to 50 °C (-0.4 °F to 122 °F)

Without Batteries

-20 °C to 70 °C (-13 °F to 158 °F)

Relative Humidity

0 % to 90 % (0 °C to 35 °C)

IP Rating

IP 54

Drop Test

(1 M) 3.28 ft

Size (H x W x L) with Battery

5.12 in x 3.58 in x 5.25 in (13 cm x 9.09 cm x 13.33 cm)

Weight with Battery

1.76 lbs (0.8 kg)

Safety

IEC 61010-1: Pollution Degree 2

Laser

IEC 60825-1:2014 Class 2

Light Source

Semiconductor laser diode

Max Output Power

< 1 mW

Green

520 nm ± 10 nm

International

IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B

HS Code

9031.80
