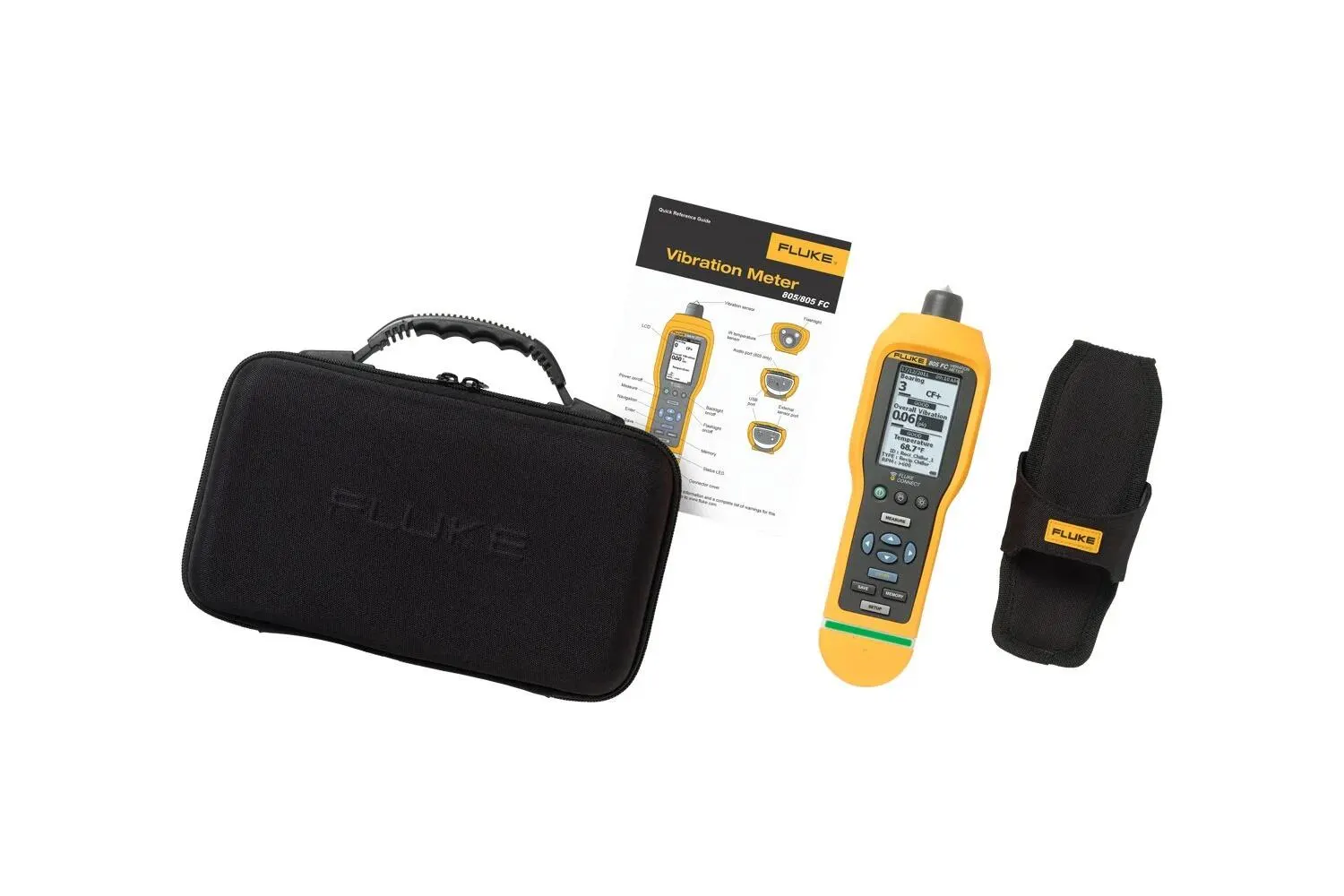

Fluke 805 FC Vibration Meter 4489229

Learn more about the Fluke Connect Vibration Meter: A reliable, accurate way to check bearings and overall vibration & stay in contact with your team.

Manufacturer part number (MPN)

4489229

Brand

Fluke

Category

Tools

Low frequency range (overall measurement)

10 Hz to 1,000 Hz

High frequency range (CF+ measurement)

4,000 Hz to 20,000 Hz

Severity levels

Good, satisfactory, unsatisfactory, unacceptable

Vibration limit

50 g peak (100 g peak-peak)

A/D converter

16-bit

Signal to noise ratio

80 dB

Sampling rate

Low frequency: 20,000 Hz High frequency: 80,000 Hz

Real time clock backup

Coin battery

Sensitivity

100 mV g ± 10%

Measurement range

0.01 g to 50 g

High frequency range

4,000 Hz to 20,000 Hz

Resolution

0.01 g

Accuracy

At 100 Hz ± 5% of measured value

Acceleration

g, with sec²

Velocity

in/sec, mm/sec

Displacement

mils, mm

Range

-20 °C to 200 °C (-4 °F to 392 °F)

Focal length

Fixed, at ~3.8 cm (1.5")

Frequency range

10 Hz to 1,000 Hz

Bias voltage (to supply power)

20 V dc to 22 V dc

Bias current (to supply power)

Maximum 5 mA

External interfaces

USB 2.0 (full speed) communication

Data capacity

Database on internal flash memory

Upgrade

Through USB

Memory

Up to 3,500 measurements

Electromagnetic interference

Standard EN 61000-4-3

RE

Standard CISPR 11, Class A

Operating temperature

-20 °C to 50 °C (-4 °F to 122 °F)

Storage temperature

-30 °C to 80 °C (-22 °F to 176 °F)

Operating humidity

10% to 95% RH (non-condensing)

Operating/storage altitude

Sea level to 3,048 meters (10,000 feet)

IP rating

IP54

Drop test

1 meter

Battery type

AA (2) Lithium Iron Disulfide

Battery life

250 measurements

Size (L x W x H)

24.1 cm x 7.1 cm x 5.8 cm (9.5 in x 2.8 in x 2.3 in)

Weight

0.40 kg (0.89 lb)

Connectors

USB mini-B 7-pin, external sensor jack (SMB connector)
