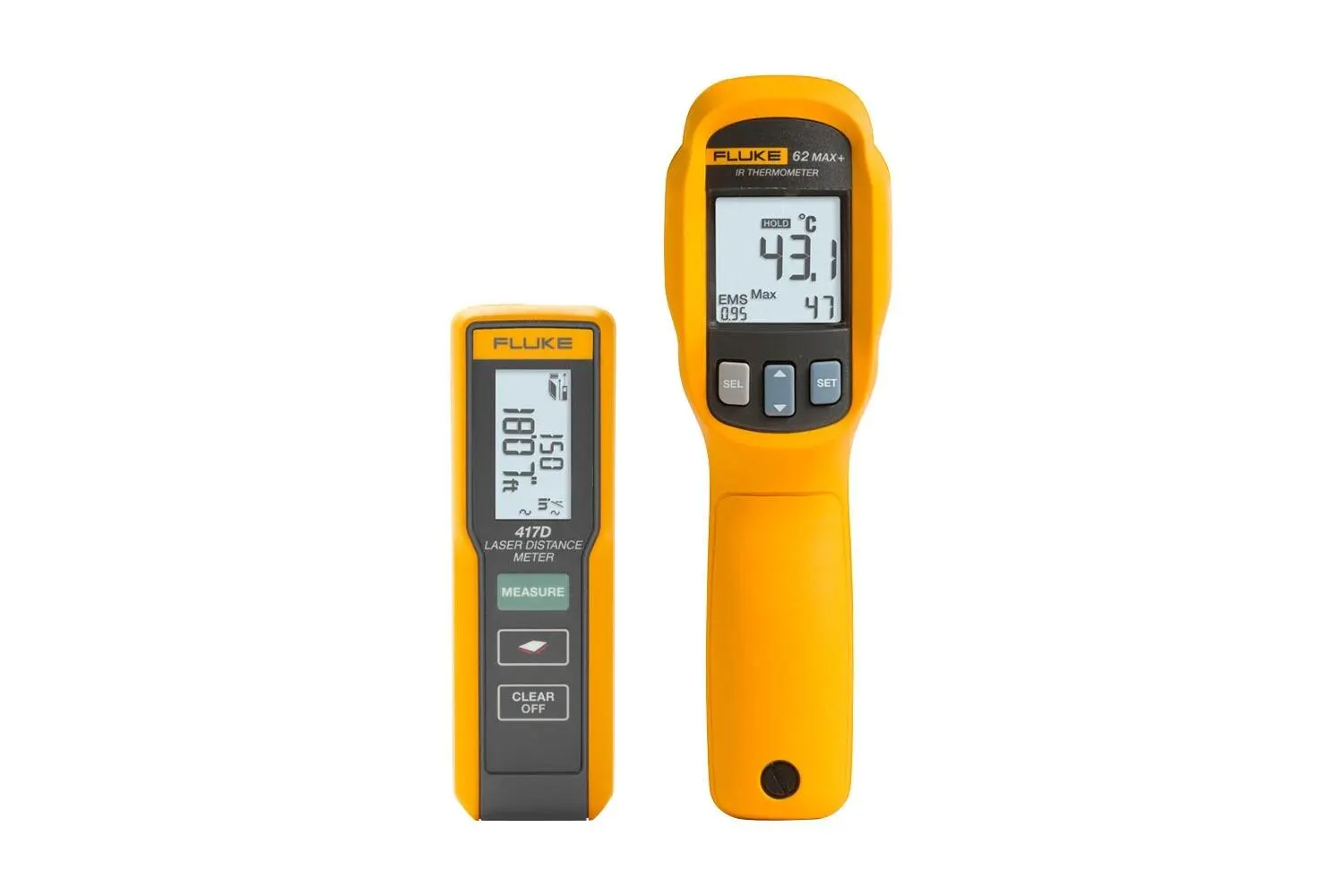

Fluke 417D Laser Distance Meter / 62 MAX+ IR Thermometer Kit

The HVAC Troubleshooting combo kit. The 62 MAX+ IR thermometer tests for overheating and the Fluke 417D laser distance meter measures area as well as continuous measurement capable. Both Fluke 417D and the 62 MAX + are IP54 rated resistant to dusty or rainy conditions.

Manufacturer part number (MPN)

5112860

Brand

Fluke

Category

Tools

Typical range [1]

0.2-40 m/0.6-131 ft

Typical measuring tolerance* [1]

2.0 mm ± 1.5 mm/± 0.06 in ***

Maximum measuring tolerance [2]

± 3.0 mm/0.12 in ***

Accuracy up to 10m (+/-)

± 2 mm

Display

2 line/1 mm/1/32 in

Display illumination

Yes

Laser point at distance

6/30/60 mm (10/40/100 m)

Area

Yes

Units setting (smallest units displayed)

0,000m, 0' 00'' 1/32, 0 in 1/32

Auto laser switch off

90 sec

Auto power switch off

180 sec

Laser class

II

Laser type

635 nm, <1 mW

Protection class

IP54

Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03

Up to 3,000 measurements

Size (Hx W x D)

11.9 x 3.8 x 2.6 cm

Drop test

1 meter

Weight (with batteries)

95g (3.35 oz)

Maximum relative humidity

85 % @ 20°F to 120 °F (-7 °C to 50 °C)

Safety

CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)

EMC

61326-1:2006

Temperature range

- 30 °C to 650 °C (-22 °F to 1202 °F)

Optical resolution

12:1 (calculated at 90 % energy)

Response time (95 %)

< 300 ms (95 % of reading)

Spectral response

8 to 14 microns

Emissivity

0.10 to 1.00

Display resolution

0.1 °C (0.2 °F)

Repeatability (% of reading)

± 0.5 % of reading or ± 0.5 °C (whichever is greater)

Power

1 AA alkaline battery

Battery life

8 hours with laser and backlight on

Weight

255 g (8.99 oz)

Size

(175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches

Operating temperature

0 °C to 50 °C (32 °F to 122°F)

Storage temperature

-20 °C to 60 °C (-4 °F to 140 °F) (without battery)

Operating humidity

Non- condensing @ ≤ 10 °C (50 °F) ≤ 90 % RH @ 10 °C (50 °F) to 30 °C (86 °F) ≤ 75 % RH @ 30 °C (86 °F) to 40 °C (104 °F) ≤ 45 % RH @ 40 °C (104 °F) to 50 °C (122 °F)

Operating altitude

2000 meters above mean sea level

Storage altitude

12,000 meters above mean sea level

Implement standard

Q/ASF01

Compliance

IEC 61010-1: Pollution Degree 2

Laser safety

IEC 60825-1 Class 2, 650 nm, < 1 mW

Ingress protection rating

IP 54 per IEC 60529

Warranty

3 years

HS Code

9025.19
