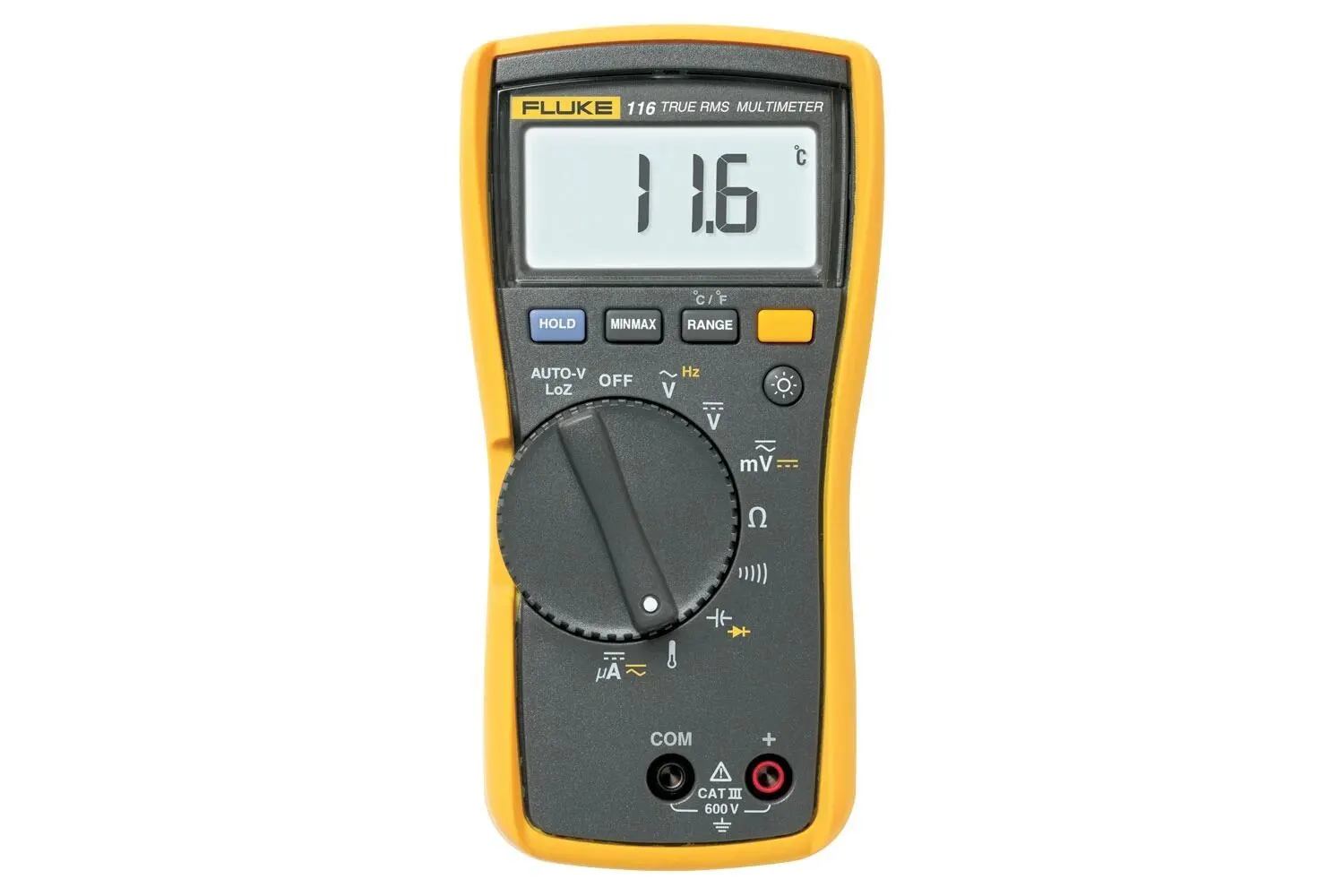

Best HVAC Multimeter - Fluke 116 Digital HVAC Multimeter

Get the right HVAC multimeter for accurate temperature & microamp measurements. The Fluke 116 digital multimeter has everything you need in an HVAC meter.

Manufacturer part number (MPN)

2538803

Brand

Fluke

Category

Tools

Maximum voltage between any terminal and earth ground

600 V

Safety

IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V

Display

Digital: 6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating temperature

-10°C to + 50°C

Storage temperature

-40°C to + 60°C

Battery type

9 volt Alkaline, IEC 6LR61

Battery life

400 hours typical, without backlight

DC millivolts Range/resolution

600.0 mV / 0.1 mV

DC millivolts Accuracy

±([% of reading] + [counts]): 0.5% + 2

DC volts Range/resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V

DC volts Accuracy

±([% of reading] + [counts]): 0.5% + 2

Auto volts Range/resolution

600.0 V / 0.1 V

Auto volts Accuracy

2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)

AC millivolts1 True RMS Range/resolution

600.0 mV / 0.1 mV

AC millivolts1 True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

AC volts1 True RMS Range/resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V

AC volts1 True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

Continuity Range/resolution

600 Ω / 1 Ω

Continuity Accuracy

Beeper on 250 Ω detects opens or shorts of 500 μs or longer.

Ohms Range/resolution

600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ

Ohms Accuracy

0.9% + 1

Diode Test Range/resolution

2.00 V / 0.001 V

Diode Test Accuracy

0.9% + 2

Capacitance Range/resolution

1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF

Capacitance Accuracy

1.9% + 2

Lo-Z Capacitance Range

1 nF to 500 μF

Lo-Z Capacitance Accuracy

10% + 2 typical

Temperature² (Type-K thermocouple) Range/resolution

-40°C to 400°C / 0.1°C

Temperature² (Type-K thermocouple) Accuracy

1% + 10²

AC μA true-rms (45 Hz to 500 Hz) Range/resolution

600.0 μA / 0.1 μA

AC μA true-rms (45 Hz to 500 Hz) Accuracy

1.5% + 3

DC μamps Range/resolution

600.0 μA / 0.1 μA

DC μamps Accuracy

1.0% + 2

Hz (V or A input)² Range/resolution

99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz

Hz (V or A input)² Accuracy

0.1% + 2

Size

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight

550 g

Warranty

3 years

HS Code

9030.33
