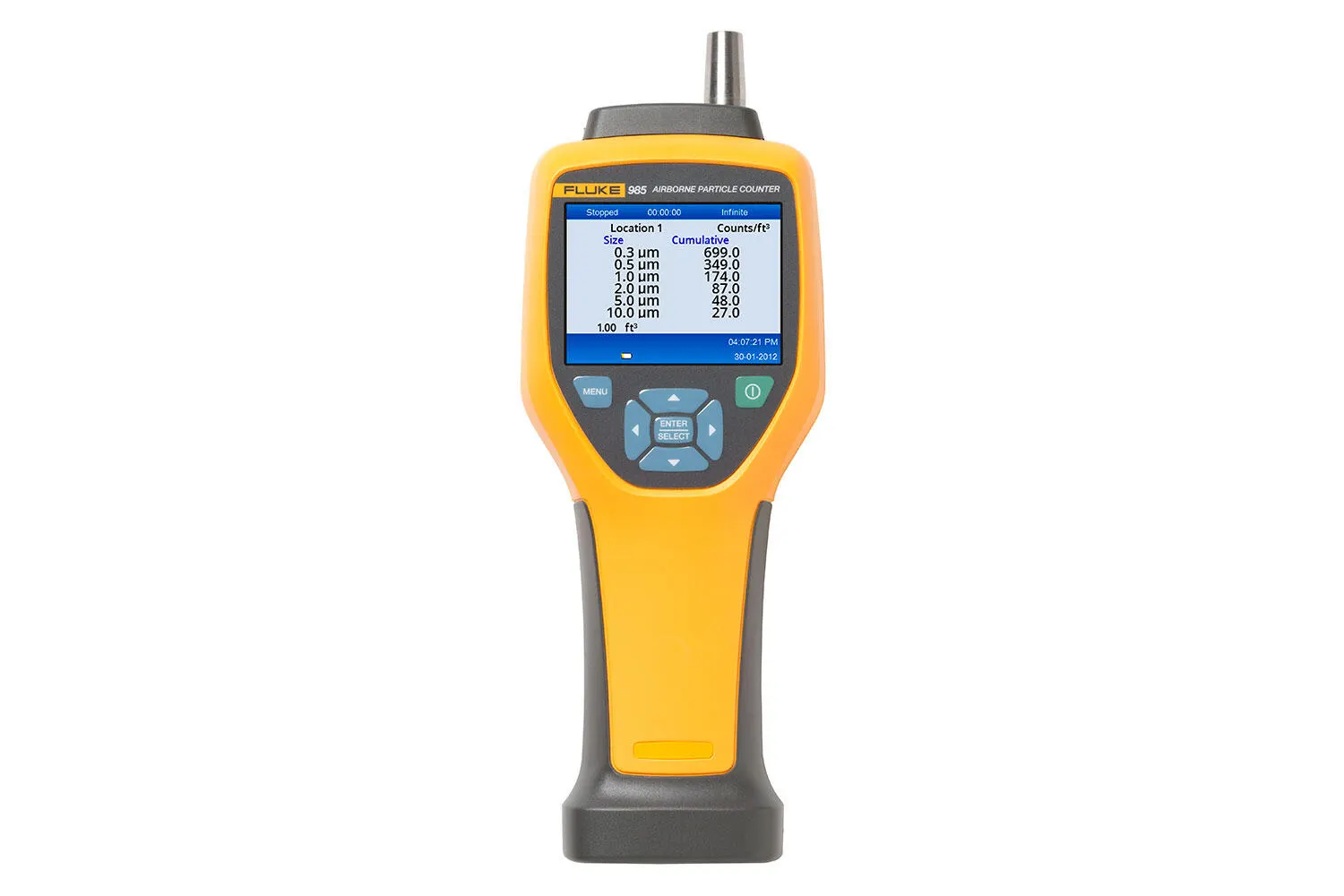

Fluke 985 Particle Counter

Use the Fluke 985 air particle counter to test and analyze indoor air quality and determine airborne particle concentration.

Manufacturer part number (MPN)

4131397

Brand

Fluke

Category

Tools

Channels

0.3 μm, 0.5 μm, 1.0 μm, 2.0 μm, 5.0 μm, 10.0 μm

Flow rate

0.1 cfm (2.83 L/min)

Light source

775 nm to 795 nm, 90 mW class 3B laser

Count modes

Raw counts, #/m3, #/ft3, #/liter in Cumulative or Differential mode

Counting efficiency

50% @ 0.3 μm; 100% for particles > 0.45 μm (per ISO 21501)

Zero count

1 count / 5 minute (JIS B9921)

Concentration limits

10% at 4,000,000 particles per ft3 (per ISO 21501)

Data storage

10,000 records (rotating buffer)

Alarms

Counts, low battery, sensor fail

Delay time

0 to 24 hours

Sample inlet

Isokinetic probe

Security

Administrator password control (optional)

Communication mode

USB or Etheret

Dimensions (L x W x D)

27.2 x 9.9 x 5.3 cm (10.7 x 3.9 x 2.1 in)

Weight

0.68 kg (1.5 lb)

Power adapter

100 V AC to 240 V AC, 12 V DC, 2.5 A

Rechargeable battery

Li-ion 7.4 V 2600 mAh; 10 hours typical use (5 hours continuous sampling) / 3.5 hours

Calibration

PSL particles in air (NIST traceable)

Operating environment

50°F to 104°F (10°C to 40°C) / < 95% non-condensing relative humidity

Storage environment

14°F to 122°F (-10°C to 50°C)/Up to 98% non-condensing relative humidity

Warranty

One-year

Accessories included

Cradle for charging and convenient USB and Ethernet communications, USB-A to MINI-B 6 foot cable, 12 V dc power supply, zero count inlet-filter, filter adapter, sample inlet protective cap, hard case
