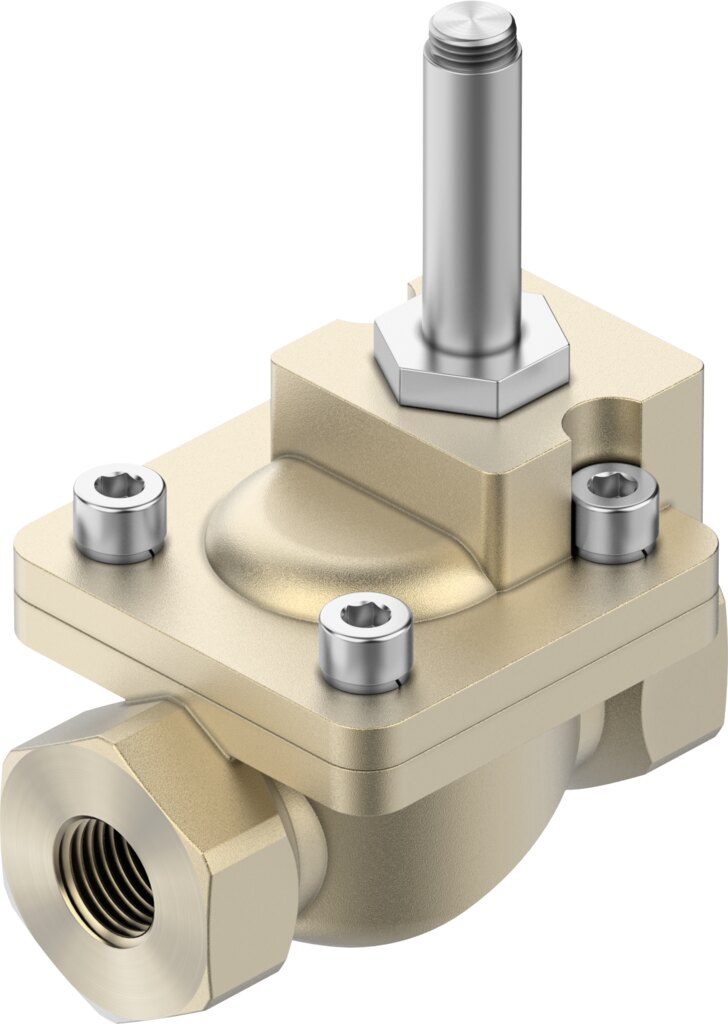

Festo VZWM-L-M22C-G14-F4 Solenoid valve
Part number4052568184407Item number10417569EAN / GTIN4052568184407HS code8481.80
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VZWM-L-M22C-G14-F4 — Solenoid valve, solenoid media valves. valve function 2/2-way, single solenoid, closed; nominal size 13.5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 546146
- Type code
- VZWM-L-M22C-G14-F4
- EAN / GTIN
- 4052568184407
- Product category
- Solenoid media valves
- Design
- Diaphragm valve, servo-controlled
- Type of actuation
- Electrical
- Sealing principle
- Soft
- Mounting position
- Preferably upright
- Type of mounting
- Inline installation
- Connection Process valve
- G1/4
- Electrical connection
- Solenoid coil type MD-... , coil can be ordered as an accessory
- Nominal size
- 13.5 mm
- Valve function
- 2/2-way, single solenoid, closed
- Flow direction
- Non-reversible
- Medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Water, Neutral fluids
- Medium pressure,valve for liquid media
- 0.05 ... 0.6 MPa (0.5 ... 6 bar; 7.25 ... 87 psi)
- Medium pressure,valve for gaseous media
- 0.05 ... 1 MPa (0.5 ... 10 bar; 7.25 ... 145 psi)
- Burst pressure
- 4 MPa (40 bar; 580 psi)
- Overload pressure
- 4 MPa (40 bar; 580 psi)
- Pressure difference
- 0.05 MPa (0.5 bar; 7.25 psi)
- Type of piloting
- Piloted
- Symbol
- 00995681
- Max. viscosity
- 22 mm²/s
- Media temperature
- -10 ... 60 °C
- Media temperature for fluids
- 5 ... 50 °C
- Ambient temperature
- -10 ... 60 °C
- Flow rate Kv
- 1.6 m³/h
- Standard nominal flow rate (standardised to DIN 1343)
- 1400 l/min
- Switching time on
- 8 ms
- Switch-on time for fluids
- 100 ms
- Switching time off
- 10 ms
- Switch-off time for fluids
- 200 ms
- b value
- 0.3
- C value
- 6 l/sbar
- LABS (PWIS) conformity
- VDMA24364 zone III
- Material housing
- Brass
- Material number housing
- 2,0402
- Material seals
- NBR
- Material plunger tube
- High-alloy steel
- Product weight
- 500 g
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- Max. tightening torque for cover screw
- 20 Nm
- Max. tightening torque for connecting thread
- 35 Nm
- Max. tightening torque for coil fastening
- 0.5 Nm
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 13.2481 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84818087
- HS code
- 8481.80
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 4052568184407
- MPN 546146
Product Documentation
Document preview: VZWM-L-M22C-G14-F4 — Festo product documentation
More from Festo
Festo

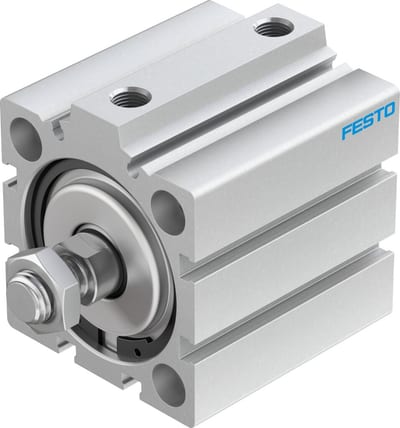

Festo ADVC Short stroke cylinder - 50mm, G1/8, 25mm, ADVC-50-25-A-P-A
188271
Festo

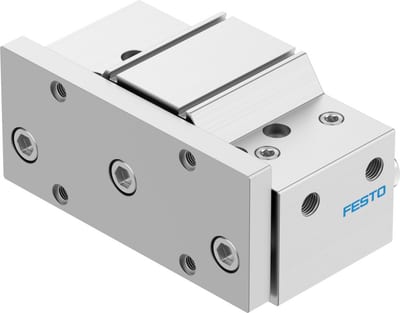

Festo DFM-100-25-P-A-KF Guided drive
170967
Festo

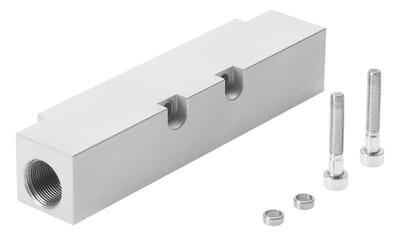

Festo DADP-DGC-63-GF/KF Shock absorber retainer
545245
Festo

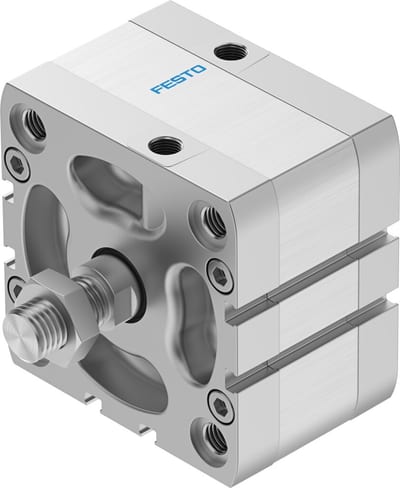

Festo ADN-80-10-A-P-A Compact cylinder
536353
Festo
Festo LFMBA-3/8-D-MIDI Filter combination
162661
Festo
Festo ADVU-12-30-P-A Compact cylinder
156505
Festo
Festo VUVG-L10-B52-T-M5-1R8L Solenoid valve
576664
Festo

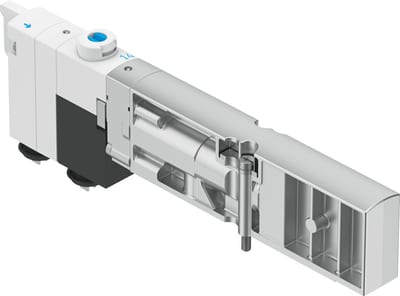

Festo VMPA1-M1H-IS-PI Solenoid valve
