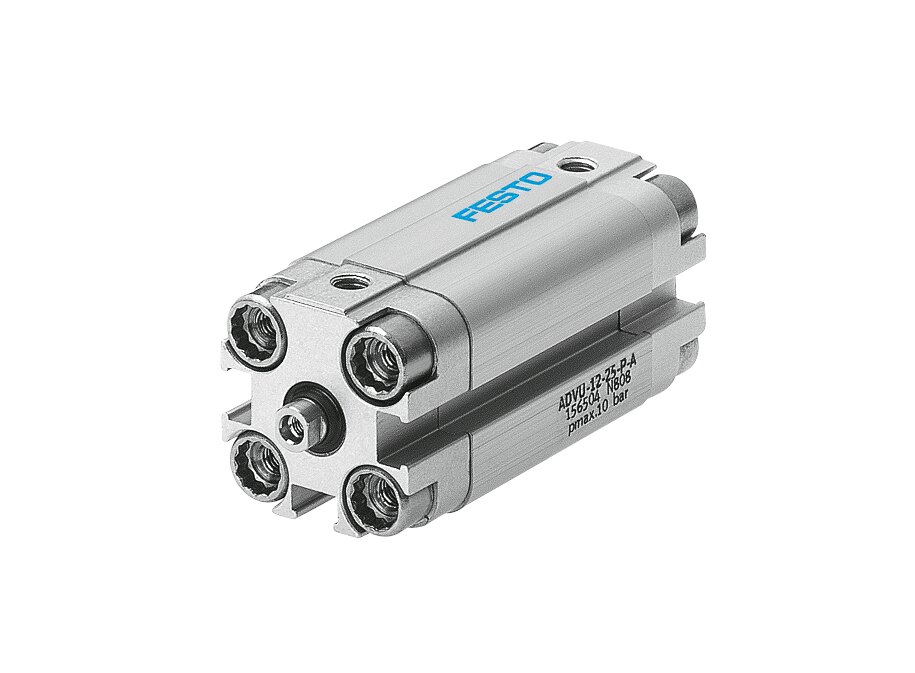

Festo ADVU-12-30-P-A Compact cylinder

Festo ADVU-12-30-P-A — Compact cylinder, pneumatic cylinders. stroke 30 mm; piston diameter 12 mm; operating pressure 0.12. 1 MPa (1.2. 10 bar; 17.4. 145 psi).

Manufacturer part number (MPN)

156505

Type code

ADVU-12-30-P-A

EAN / GTIN

4052568071080

Product category

Pneumatic cylinders

Stroke

30 mm

Piston diameter

12 mm

Piston rod thread

M3

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Mode of operation

Double-acting

Piston-rod end

Female thread

Design

Piston, Piston rod

Position detection

Via proximity switch

Symbol

00991217

Variants

Piston rod at one end

Operating pressure

0.12 ... 1 MPa (1.2 ... 10 bar; 17.4 ... 145 psi)

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.07 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

51 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

68 N

Moving mass for 0 mm stroke

8 g

Additional moving mass per 10 mm stroke

2 g

Basic weight for 0 mm stroke

87 g

Additional weight per 10 mm stroke

15 g

Type of mounting

With through-hole, with accessories

Pneumatic connection

M5

Material collar screws

High-alloy stainless steel

Material cover

Wrought aluminium alloy

Material dynamic seals

NBR, TPE-U(PU)

Material piston rod

High-alloy stainless steel

Material cylinder barrel

Wrought aluminium alloy

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

M5

Carbon footprint (EPD)

2.7459 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31
