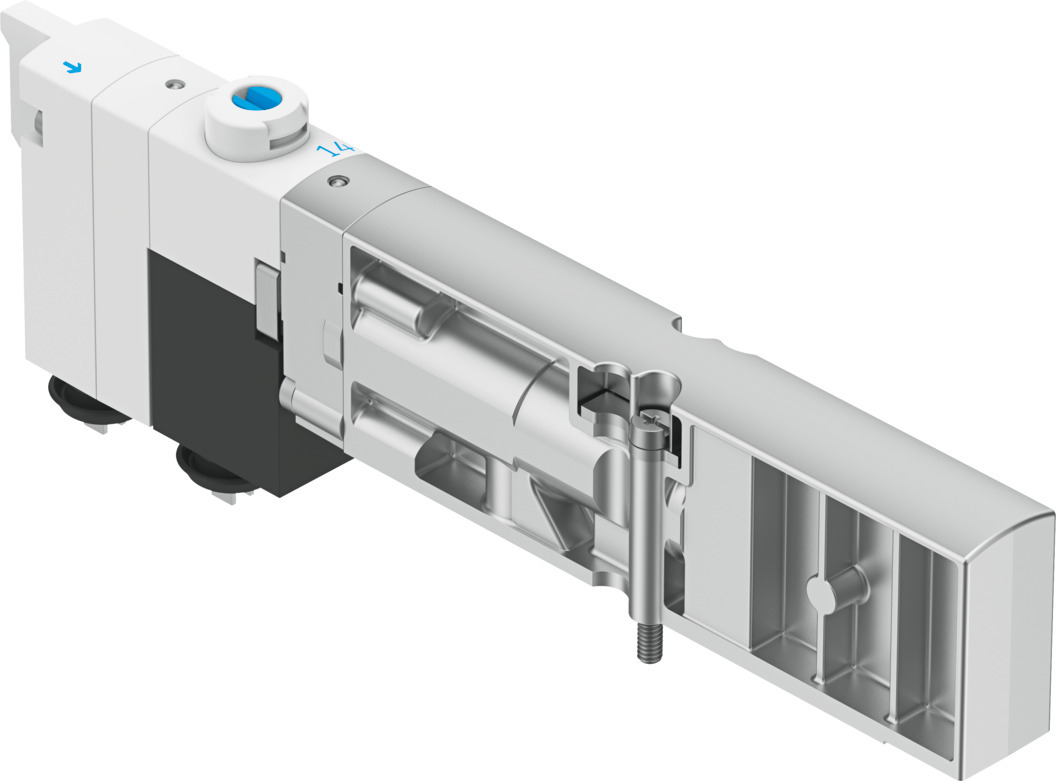

Festo VMPA1-M1H-IS-PI Solenoid valve

Festo VMPA1-M1H-IS-PI — Solenoid valve, universal directional control valves. valve function 3/2-way, single solenoid, closed; operating pressure 0.3. 0.8 MPa (3. 8 bar).

Manufacturer part number (MPN)

8126790 Type code: VMPA1-M1H-IS-PI EAN / GTIN: 4052568589264 Product category: Universal directional control valves Valve function: 3/2-way, single solenoid, closed Type of actuation: Electrical Valve size: 10 mm pneumatic working port: M7 Operating voltage: 24 V DC Operating pressure: 0.3 ... 0.8 MPa (3 ... 8 bar) Design: Poppet valve with spring return Type of reset: Mechanical spring Degree of protection: IP65, In mounted state, To IEC 60529 Sealing principle: Soft Mounting position: Any Manual override: Detenting, Non-detenting Type of piloting: Piloted Pilot air supply: Internal Flow direction: Non-reversible Symbol: 00997584 lap: Underlap Signal status display: Yes Pilot pressure: 0.3 ... 0.8 MPa (3 ... 8 bar) Suitability for vacuum: No Permissible voltage fluctuations: +/-25% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC: 1 - Low corrosion stress LABS (PWIS) conformity: VDMA24364 zone III Storage temperature: -20 ... 60 °C Media temperature: -5 ... 50 °C Relative air humidity: Max. 90% at 40 °C Ambient temperature: -5 ... 50 °C Max. tightening torque for valve mounting: 0.25 Nm Product weight: 32 g Switch-off point min.: 0.05 bar Switch-on point: 0.2 bar Switch-on point max.: 0.3 bar Type of mounting: With through-hole Pilot exhaust port 82/84: Internal Pneumatic connection, port 1: Internal Pneumatic connection, port 2: Internal Pneumatic connection, port 3: M7 material seals: HNBR, NBR material housing: Reinforced PPA material screws: Coated steel Product type: Pneumatic solenoid valves Product group: Pneumatics Thread: M7" Activation: El Return: mechanical spring Carbon footprint (EPD): 0.6968 kg CO2e per pcs Country of origin: Germany Customs tariff code (EU CN): 84812090 HS code: 8481.20

HS Code

8481.20

• EAN 4052568589264
• MPN 8126790
