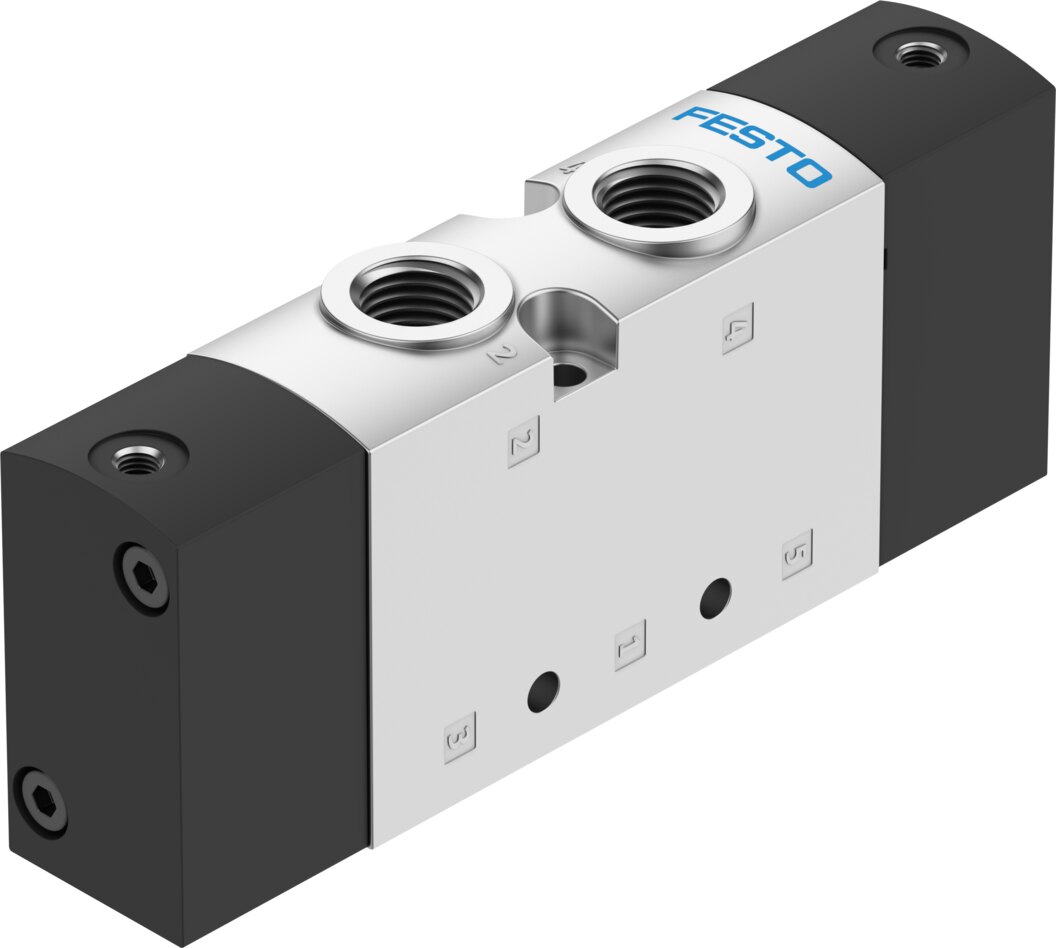

Festo VUWS-L25-P53C-M-G14 Pneumatic valve

Festo VUWS-L25-P53C-M-G14 — Pneumatic valve, universal directional control valves. valve function 5/3-way, closed; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 6.5 mm.

Manufacturer part number (MPN)

575529

Type code

VUWS-L25-P53C-M-G14

EAN / GTIN

4052568260866

Product category

Universal directional control valves

Valve function

5/3-way, closed

Type of actuation

Pneumatic

Valve size

26.5 mm

Standard nominal flow rate (standardised to DIN 1343)

1200 l/min

pneumatic working port

G1/4

Operating pressure

-0.09 ... 1 MPa (-0.9 ... 10 bar)

Design

Piston gate valve

Type of reset

Mechanical spring

Approval

c UL us - Recognised (Oil)

Nominal size

6.5 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

None

Type of piloting

Direct

Pilot air supply

Internal

Flow direction

Reversible

Symbol

00991018

lap

Overlap

Pilot pressure

0.25 ... 1 MPa (2.5 ... 10 bar)

Switching time off

65 ms

Switching time on

13 ms

Switching time reversal

30 ms

Explosion protection

The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 6 according to ISO 14644-1

Media temperature

-10 ... 60 °C

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-10 ... 60 °C

Product weight

310 g

Type of mounting

On manifold rail, with through-hole

Breather connection

Not ducted

Pilot air port 12

M5

Pilot air port 14

M5

Pneumatic connection, port 1

G1/4

Pneumatic connection, port 2

G1/4

Pneumatic connection, port 3

G1/4

Pneumatic connection, port 4

G1/4

Pneumatic connection, port 5

G1/4

Material seals

HNBR, NBR

Material housing

painted

Material piston slide

Wrought aluminium alloy

Material screws

Galvanised steel

Product type

Pneumatic Valves Air-Controlled

Product group

Pneumatics

Thread

G1/4"

Activation

Air

Return

Spring

Carbon footprint (EPD)

7.2413 kg CO2e per pcs

Country of origin

China

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568260866
• MPN 575529
